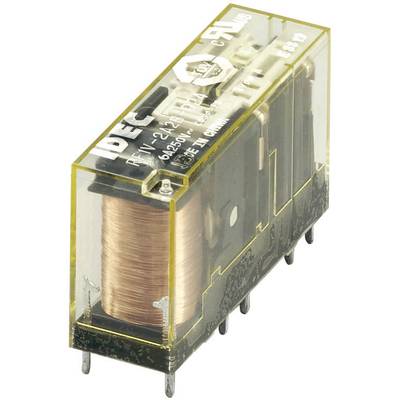

A rectangular, transparent relay with a copper coil and multiple metal terminals. Markings and numbers are visible.

A rectangular, transparent relay with a copper coil and multiple metal terminals. Markings and numbers are visible.

Technical drawing of a rectangular electronic component with dimensions in millimetres: 40 x 24 x 13 maximum.

Technical drawing of a rectangular component with multiple drilled holes and precise dimensional specifications in millimetres.

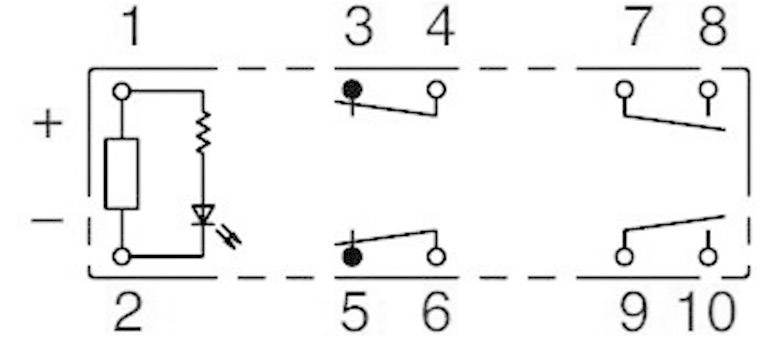

Electrical circuit diagram of a relay with coil connections, resistor, diode on the left and two changeover switches on the right.

1/4

Idec

Product type

PCB relay

Coil nominal voltage

24 V DC

Control mode

monostable, 1 coil

Contact type

2 makers

2 breakers

Switching voltage (max.)

30 V DC

250 V AC

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

131 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 26.99 / piece)

€ 28.99

-7 %

€ 26.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: PCB relay

Type: RF1V-2A2BL-D24

Coil nominal voltage: 24 V DC

Control mode: monostable, 1 coil

Resistance (coil): 1600 Ω

Contact type: 2 makers
2 breakers

Contact material: AgSnO2

Switching voltage (max.): 30 V DC
250 V AC

Switching current (max.): 6 A

Max. switching capacity: 180 W
1500 VA

Connection: Solder pins

Response time: 8 ms

Fall time: 20 ms

Min. temperature: -40 °C

Max. temperature: +85 °C

Length: 40 mm

Width: 13 mm

Height: 24 mm

Dim: (L x W x H) 40 x 13 x 24 mm

Content: 1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 504690 Idec RF1V-2A2BL-D24 PCB relay 24 V DC 6 A 2 makers, 2 breakers 1 pc(s)

Description

Relays with positively guided contacts are used in safety circuits to monitor the outputs of safety switches (e.g. Idec HS5B, HS5D, HS6B), light curtains and emergency stop buttons (e.g. Idec XA1E, XW1E, YW1B). They can also be used to extend the outputs of safety relays and safety control devices (e.g. Idec FS1A). Standards and approvals: EN50205, EN61810-1, UL508, CSA C22.2 No. 14.

This text is machine translated.

Features

LED for operation display.

Hints

From 70 °C reduction of the switching current 0.1 A/°C.

Description

Relays with positively guided contacts are used in safety circuits to monitor the outputs of safety switches (e.g. Idec HS5B, HS5D, HS6B), light curtains and emergency stop buttons (e.g. Idec XA1E, XW1E, YW1B). They can also be used to extend the outputs of safety relays and safety control devices (e.g. Idec FS1A). Standards and approvals: EN50205, EN61810-1, UL508, CSA C22.2 No. 14.

This text is machine translated.

Features

LED for operation display.

Hints

From 70 °C reduction of the switching current 0.1 A/°C.

Frequently Bought Together

(^*All information is plus legal VAT)

This article

-7%

Idec RF1V-2A2BL-D24 PCB relay 24 V DC 6 A 2 makers, 2 breakers 1 pc(s)

Idec RF1V-2A2BL-D24 PCB relay 24 V DC 6 A 2 makers, 2 breakers 1 pc(s)

Conrad Electronic

€ 28.99

€ 26.99^*

Idec YW1L-V4E01Q4R Kill switch + kill switch 240 V AC 6 A 1 breaker 1 pc(s)

Idec YW1L-V4E01Q4R Kill switch + kill switch 240 V AC 6 A 1 breaker 1 pc(s)

Conrad Electronic

€ 12.99^*

-16%

Idec SF1V-4-07L Relay socket Compatible with series: Idec RF1V series (L x W x H) 75 x 22.4 x 58.9 mm 1 pc(s)

Idec SF1V-4-07L Relay socket Compatible with series: Idec RF1V series (L x W x H) 75 x 22.4 x 58.9 mm 1 pc(s)

Conrad Electronic

€ 24.99

€ 20.99^*

Total price:

€ 66.97€ 60.97^*

Frequently Bought Together

(^*All information is plus legal VAT)

This article

-7%

Idec RF1V-2A2BL-D24 PCB relay 24 V DC 6 A 2 makers, 2 breakers 1 pc(s)

Idec RF1V-2A2BL-D24 PCB relay 24 V DC 6 A 2 makers, 2 breakers 1 pc(s)

Conrad Electronic

€ 28.99

€ 26.99^*

Idec YW1L-V4E01Q4R Kill switch + kill switch 240 V AC 6 A 1 breaker 1 pc(s)

Idec YW1L-V4E01Q4R Kill switch + kill switch 240 V AC 6 A 1 breaker 1 pc(s)

Conrad Electronic

€ 12.99^*

-16%

Idec SF1V-4-07L Relay socket Compatible with series: Idec RF1V series (L x W x H) 75 x 22.4 x 58.9 mm 1 pc(s)

Idec SF1V-4-07L Relay socket Compatible with series: Idec RF1V series (L x W x H) 75 x 22.4 x 58.9 mm 1 pc(s)

Conrad Electronic

€ 24.99

€ 20.99^*

Total price:

€ 66.97€ 60.97^*

What kind of PCB Mount Relays, Plug-in Relays are you looking for?

Accessories

(^*All information is plus legal VAT)

The necessary accessories are required to use the article as described.

Idec XW1E-BV402MFR Kill switch self-monitored 250 V AC 3 A 2 breakers 1 pc(s)

Idec XW1E-BV402MFR Kill switch self-monitored 250 V AC 3 A 2 breakers 1 pc(s)

Conrad Electronic

€ 59.99^*

-43%

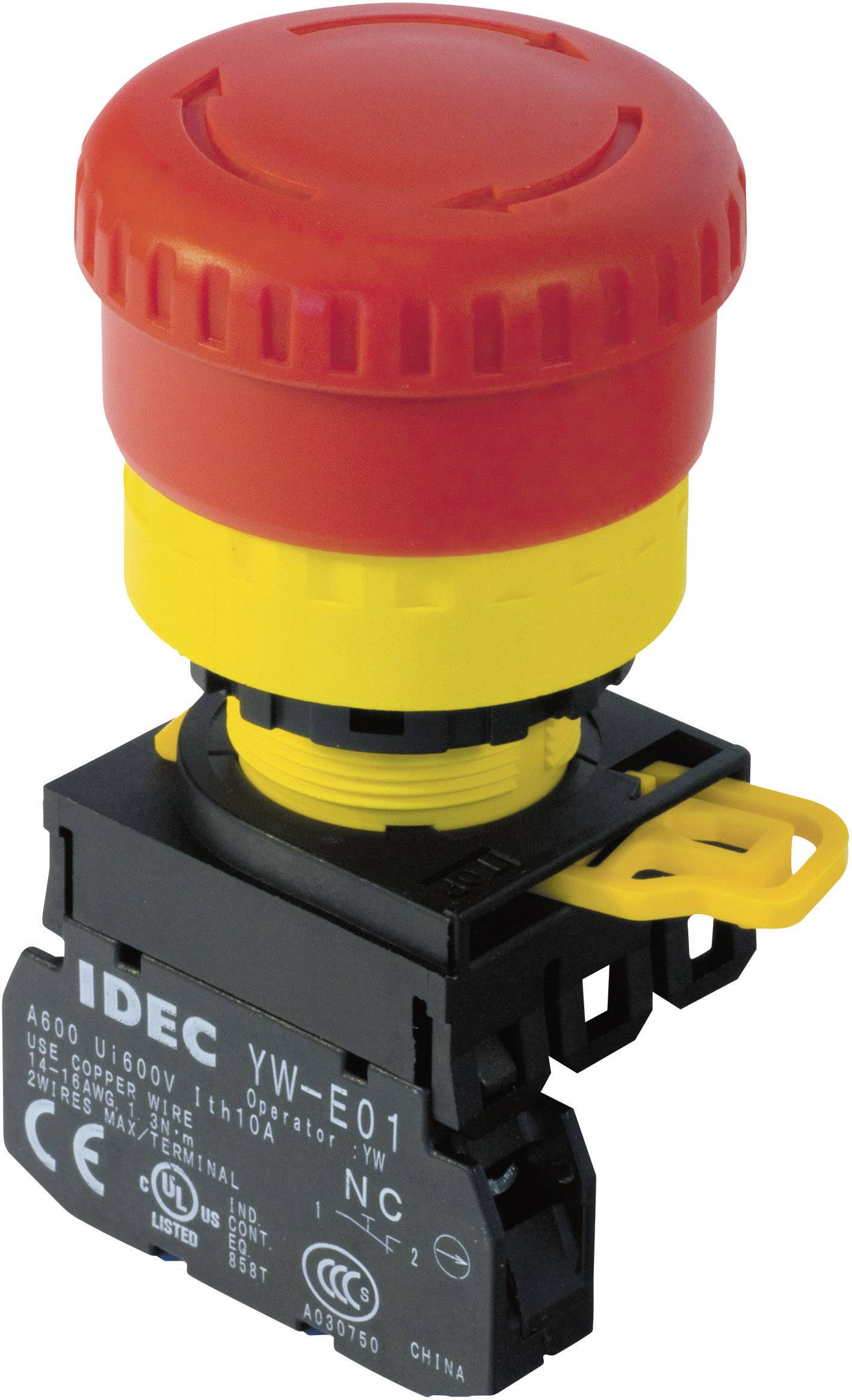

Idec YW1B-V4E01R Kill switch + kill switch 240 V AC 6 A 1 breaker 1 pc(s) Piece

Idec YW1B-V4E01R Kill switch + kill switch 240 V AC 6 A 1 breaker 1 pc(s) Piece

Conrad Electronic

€ 14.99

€ 8.49^*

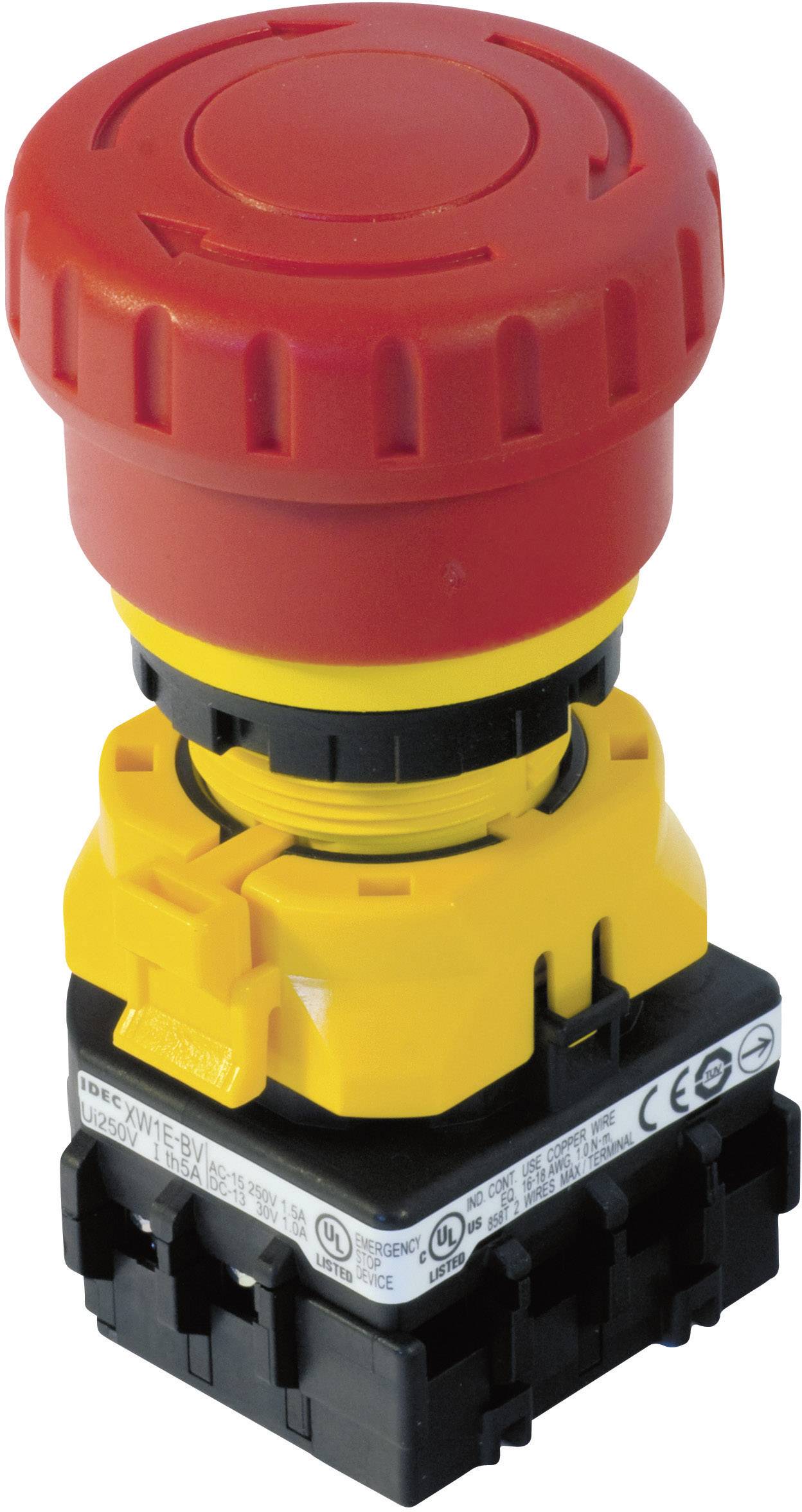

Idec XW1E-BV413MFR Kill switch self-monitored 250 V AC 3 A 3 breakers, 1 maker 1 pc(s) Piece

Idec XW1E-BV413MFR Kill switch self-monitored 250 V AC 3 A 3 breakers, 1 maker 1 pc(s) Piece

Conrad Electronic

€ 33.99^*

Idec YW1L-V4E01Q4R Kill switch + kill switch 240 V AC 6 A 1 breaker 1 pc(s)

Idec YW1L-V4E01Q4R Kill switch + kill switch 240 V AC 6 A 1 breaker 1 pc(s)

Conrad Electronic

€ 12.99^*

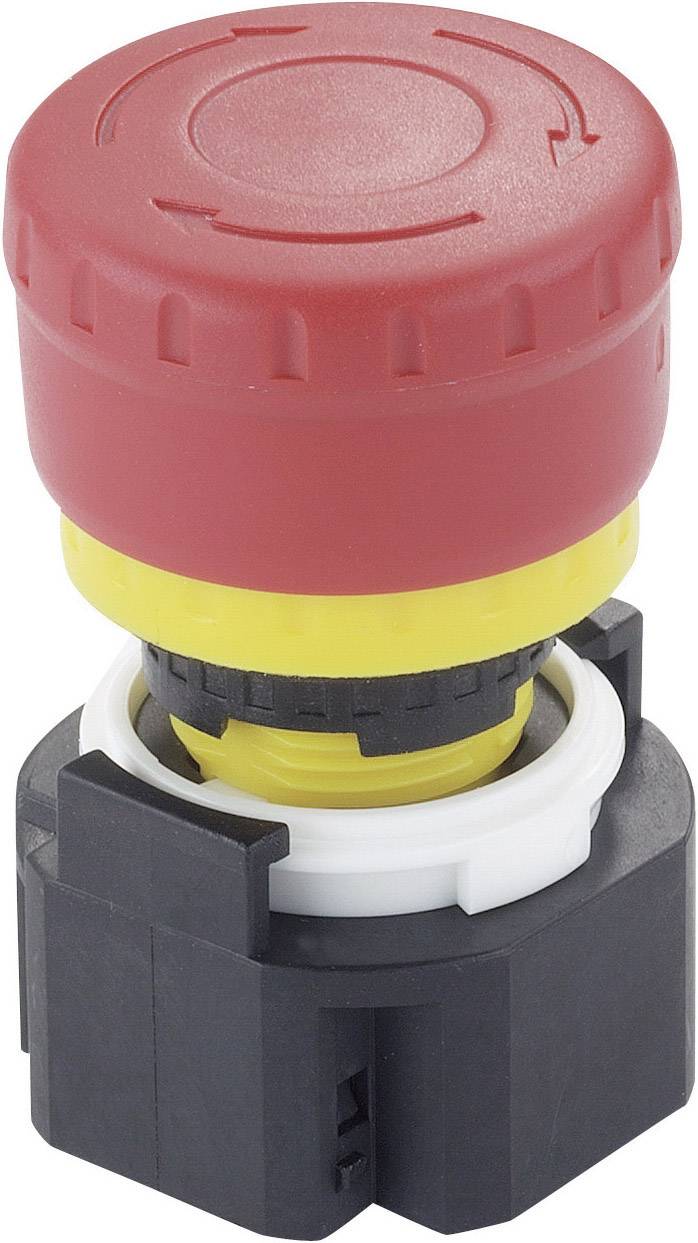

Idec XA1E-BV313R Kill switch self-monitored 250 V AC 3 A 3 breakers, 1 maker 1 pc(s) Piece

Idec XA1E-BV313R Kill switch self-monitored 250 V AC 3 A 3 breakers, 1 maker 1 pc(s) Piece

Conrad Electronic

€ 77.99^*

Idec XA1E-LV313Q4R Kill switch self-monitored 250 V AC 3 A 3 breakers, 1 maker 1 pc(s) Piece

Idec XA1E-LV313Q4R Kill switch self-monitored 250 V AC 3 A 3 breakers, 1 maker 1 pc(s) Piece

Conrad Electronic

€ 33.99^*

-16%

Idec SF1V-4-07L Relay socket Compatible with series: Idec RF1V series (L x W x H) 75 x 22.4 x 58.9 mm 1 pc(s)

Idec SF1V-4-07L Relay socket Compatible with series: Idec RF1V series (L x W x H) 75 x 22.4 x 58.9 mm 1 pc(s)

Conrad Electronic

€ 24.99

€ 20.99^*

-20%

Idec XW1E-LV413Q4MFR Kill switch self-monitored 250 V AC 3 A 3 breakers, 1 maker 1 pc(s) Piece

Idec XW1E-LV413Q4MFR Kill switch self-monitored 250 V AC 3 A 3 breakers, 1 maker 1 pc(s) Piece

Conrad Electronic

€ 59.99

€ 47.99^*

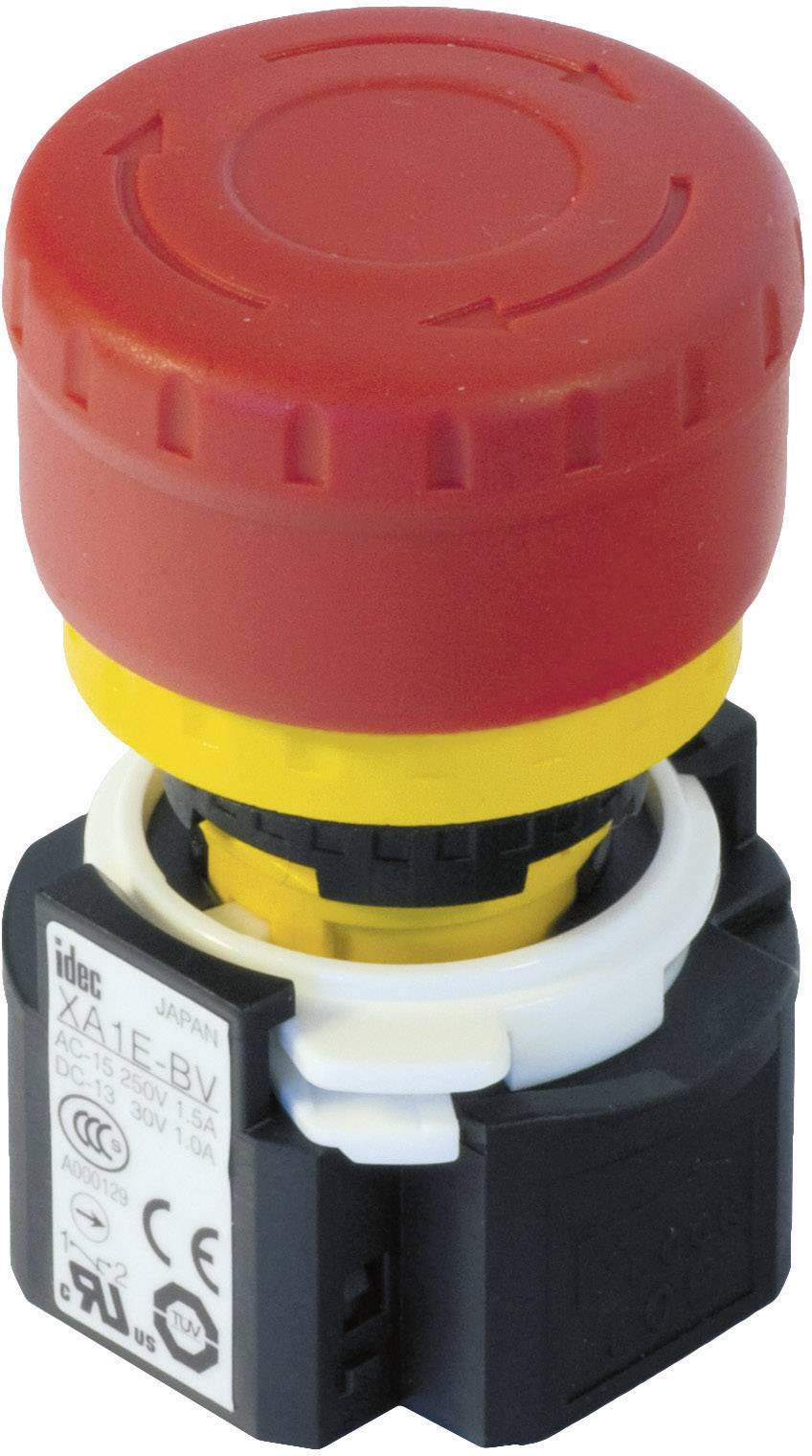

Idec XA1E-BV302R Kill switch self-monitored 250 V AC 3 A 2 breakers 1 pc(s)

Idec XA1E-BV302R Kill switch self-monitored 250 V AC 3 A 2 breakers 1 pc(s)

Conrad Electronic

€ 61.99^*

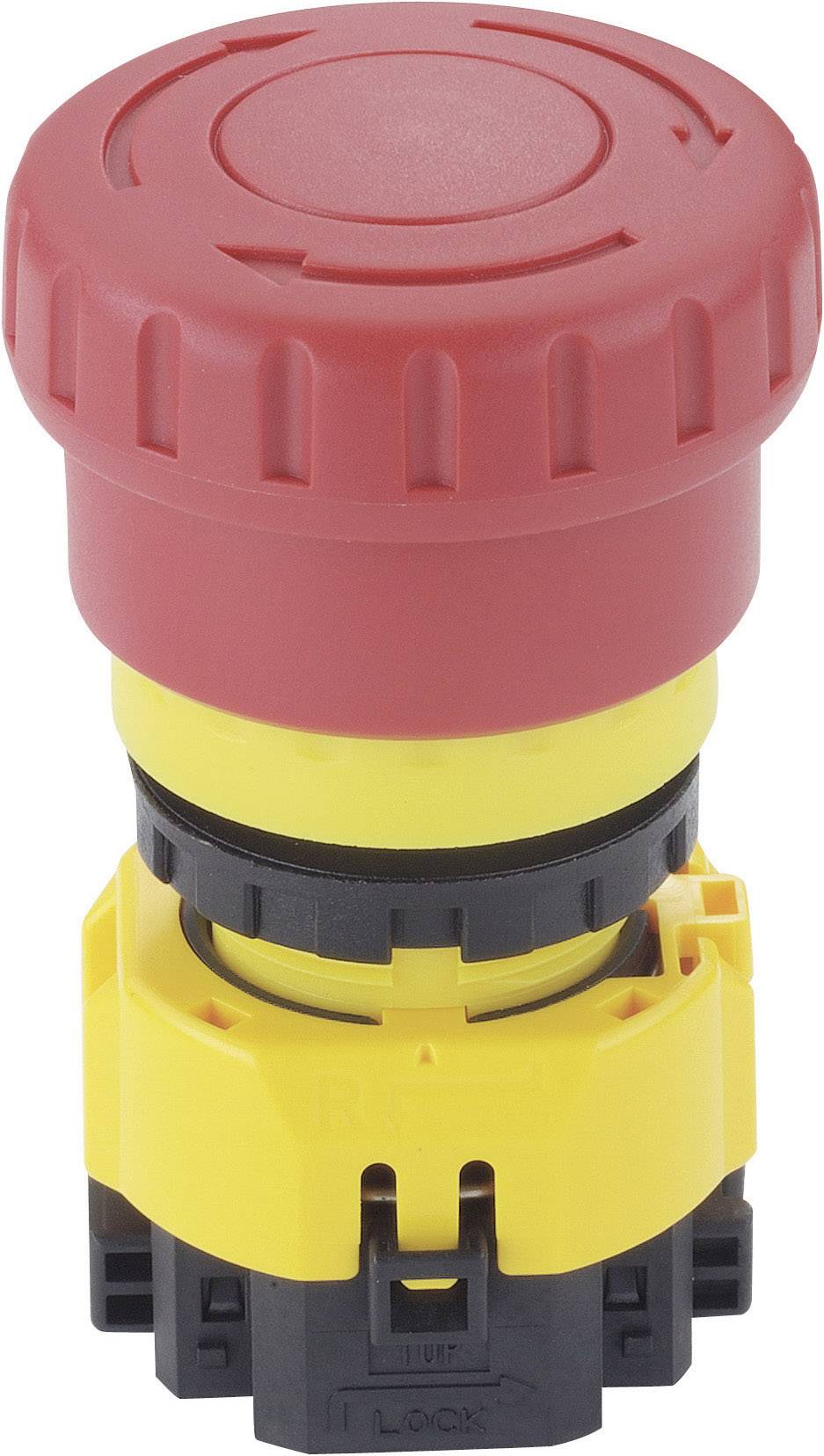

Idec XW1E-BV413R Kill switch lockable 250 V AC 3 A 3 breakers, 1 maker IP65 (for control panel installation) 1 pc(s)
