igus 10.025.038.0 E-Kette® E2 mini Serie 10 Energy Management Chain E2 Mini Series 10 E-Kette® E2 mini series 10

A black energy chain guide in a U-shape for cable routing in machinery or industrial applications.

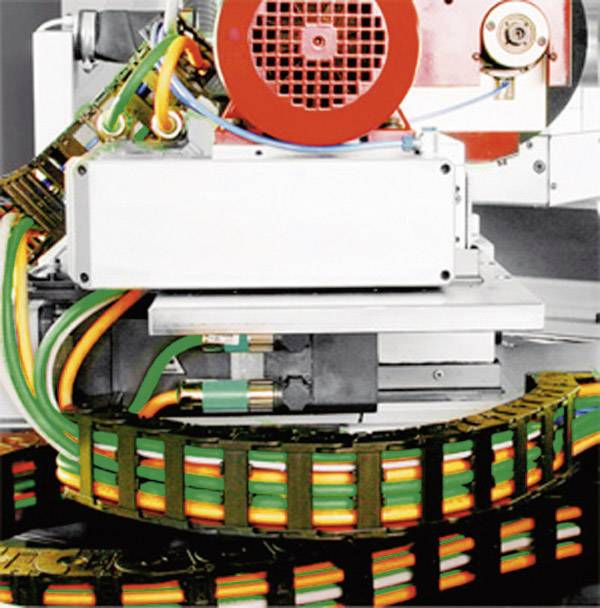

Machine installation with colourful cables and a red fan, displaying technological components and industrial wiring.
Technical drawing of a rectangular object with marked dimensions: Total length 'Ba', internal length 'Bi', external height 'ha' and internal height 'hi'.
'Table shows chain dimensions: Type E2 micro 06 has 20 mm/link, 50 links/m; E2 mini 10 and B15 have 30.5 mm/link, 33 links/m.'
1/4
Image similar
Product type
Drag chain
Inside width
25 mm
Length
1006.5 mm
Features
Minimum curve radius
Series
E-Kette® E2
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
41 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (1 m = € 57.99)
€ 57.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

igus 10.025.038.0 E-Kette® E2 mini Serie 10 Energy Management Chain E2 Mini Series 10 E-Kette® E2 mini series 10

  • 'iF Design Award Winner' logo on a red background.

Technical specifications

  • Speed unsupported straight, max. 20m/s
  • Speed unsupported with arc, max. 3m/s
  • Speed floating max. 3m/s
Product type

Drag chain

Features

Minimum curve radius

Inside width

25 mm

Series

E-Kette® E2

Outside width

36 mm

Bend radius

38 mm

No. of chain links

33

Factory colour

Black

Outside height

23 mm

Inside height

18 mm

Material (details)

Plastic

Length

1006.5 mm

Min. temperature

-40 °C

Max. temperature

+120 °C

Chain link pitch

30.5 mm

Manufacturer part #

10.025.038.0

Content

1 pc(s)

Type

E-Kette® E2 mini Serie 10

Type

E-Kette® E2 mini series 10

Temperature range

-40 - +120 °C

Documents & Downloads

Datasheet

Datasheet 745047 igus 10.025.038.0 E-Kette® E2 mini Serie 10 Energy Management Chain E2 Mini Series 10 E-Kette® E2 mini series 10

User & Safety Instructions

User & Safety Instructions 745047 igus 10.025.038.0 E-Kette® E2 mini Serie 10 Energy Management Chain E2 Mini Series 10 E-Kette® E2 mini series 10

Description

Stable, one-part E-chain® with good stability and large accessories range. Interior that protects the wires.
Inner division and connection elements available with integrated strain relief.

Scope of delivery

  • Without connection element.
  • This text is machine translated.

Hints

Infobox basic rules for E-KettenSysteme®:
comparison table (PDF) show
