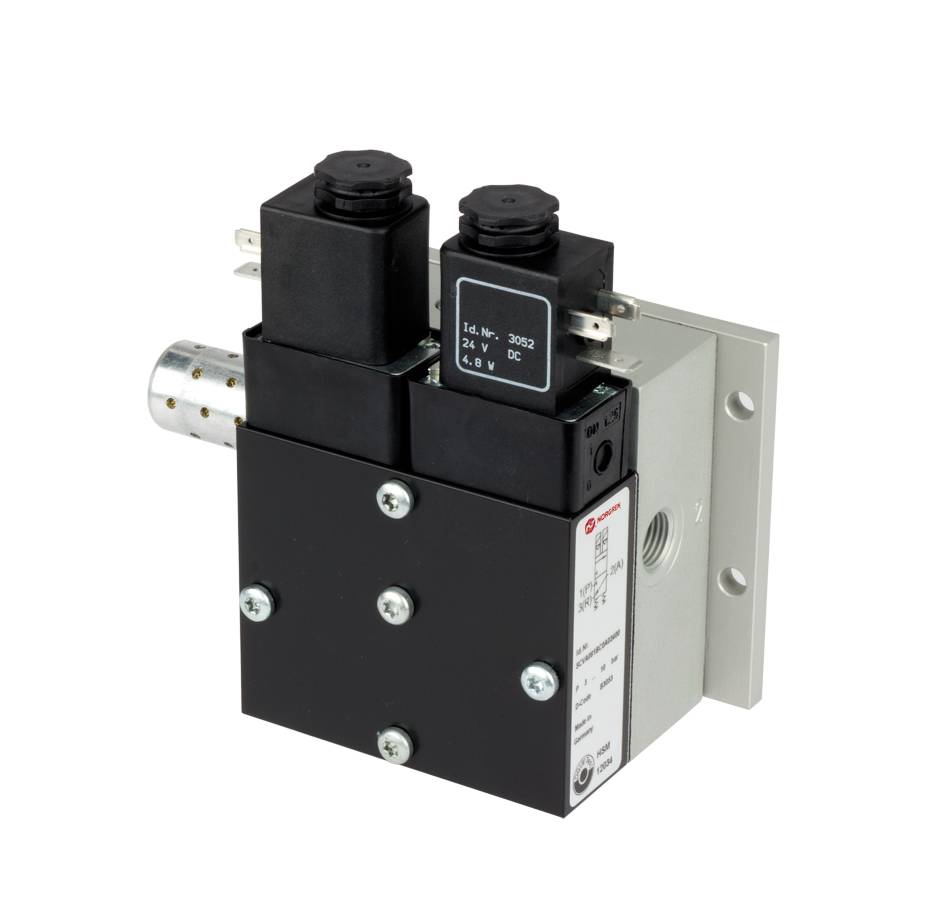

IMI NORGREN Safety valve SCVA081BB0A02400 24 V DC Enclosure material Aluminium 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 905.00 / piece)
€ 905.00
incl. VAT
14-day return policy included
Technical specifications
- Product type
Safety valve
- Operating voltage
24 V DC
- Enclosure material
Aluminium
- Connection
G 1/4
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
SCVA081BB0A02400
- Function
3/2-way
- Width
69 mm
- Height
127 mm
- Length
133 mm
IP65
- Setpoint input
24 V
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 3294299 IMI NORGREN Safety valve SCVA081BB0A02400 24 V DC Enclosure material Aluminium 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3294299 IMI NORGREN Safety valve SCVA081BB0A02400 24 V DC Enclosure material Aluminium 1 pc(s)
Description
3/2-way self-monitoring pneumatic safety valve
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
