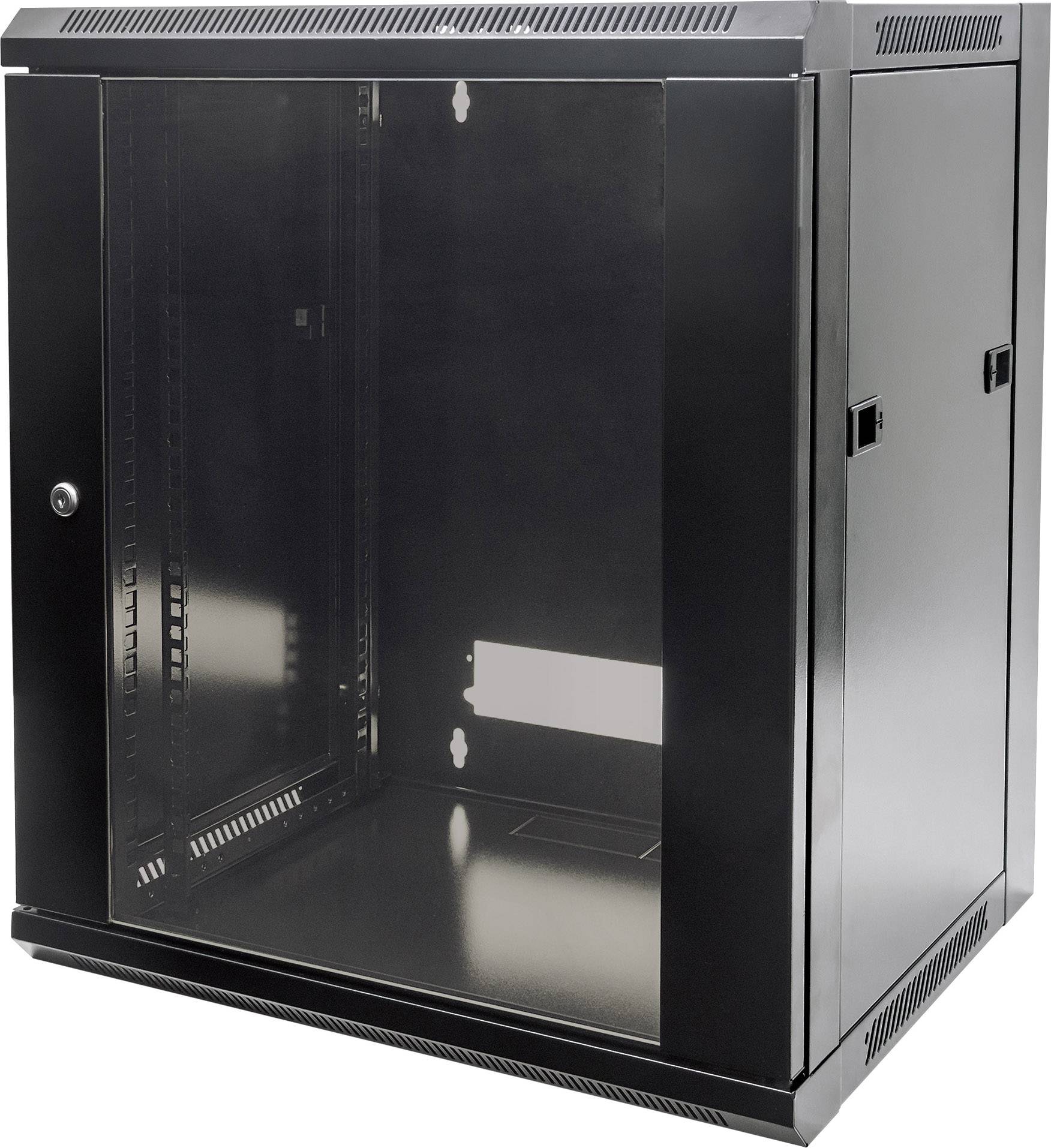

Name: Intellinet 711951 19" wall cabinet (W x H x D) 570 x 770 x 600 mm 15 U Black (RAL 9005)
Brand: Intellinet
SKU: 1337011
Availability: BackOrder

Highlights & Details

Intellinet 19" Wall distributor, 15 HE, 600 mm deep, black

Ideal for 19" applications
Maximum load capacity 60 kg
Safety glass door can be opened by more than 180°
Cold-rolled, galvanized SPCC steel frame with up to 1.2 mm thick
Anti-static powder coating on all sides
Easy to remove side walls
Delivery as a flat pack

Technical specifications

Product type: 19" wall cabinet

Rack unit: 15 U

Width: 570 mm

Height: 770 mm

Depth: 600 mm

Material: Safety glass
Steel

Dim: (W x H x D) 570 x 770 x 600 mm

Weight: 31 kg

Factory colour: Black (RAL 9005)

Rack size: 483 mm (19")

Cable length: 0 cm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1337011 Intellinet 711951 19" wall cabinet (W x H x D) 570 x 770 x 600 mm 15 U Black (RAL 9005)

User & Safety Instructions

User & Safety Instructions 1337011 Intellinet 711951 19" wall cabinet (W x H x D) 570 x 770 x 600 mm 15 U Black (RAL 9005)

Information

Information 1337011 Intellinet 711951 19" wall cabinet (W x H x D) 570 x 770 x 600 mm 15 U Black (RAL 9005)

Description

The Intellinet wall distributor offer a flexible and comprehensive solution for your network installations. We will be happy to come already during the delivery counter - let yourself be comfortable fully assembled wall distributor or save space and money with the respective flat-pack version.

With the enclosures, you can use besides the particularly compact 10" cabinets from numerous 19" options. From 6 to 20 height units, installation depths of 300 to 600 mm as well as each in black (RAL 9005) or gray (RAL 7035) we offer you suitable for every need. The removable side walls, the lockable, over 180° to open safety glass door and the optional swivel frame make wiring and components exchange especially comfortable.

When we pay attention on top quality materials and workmanship. This includes a spcc kaltgewalzter-steel frame and anti-static powder coating on all sides.

This text is machine translated.

Features

Complies with standards: ANSI/EIA RS-310-D, IEC 60297-2, DIN 41494; Section 1; DIN 41494; Section 7.

Scope of delivery

2 depth-adjustable mounting rails
Fixings
