Buy Digitus DN-19 16-U-EC 19" wall cabinet (W x H x D) 600 x 816 x 450 mm 16 U Grey-white (RAL 7035)

A white wall-mounted server rack cabinet with a glass door, partially open, showing an empty interior designed for IT equipment storage.

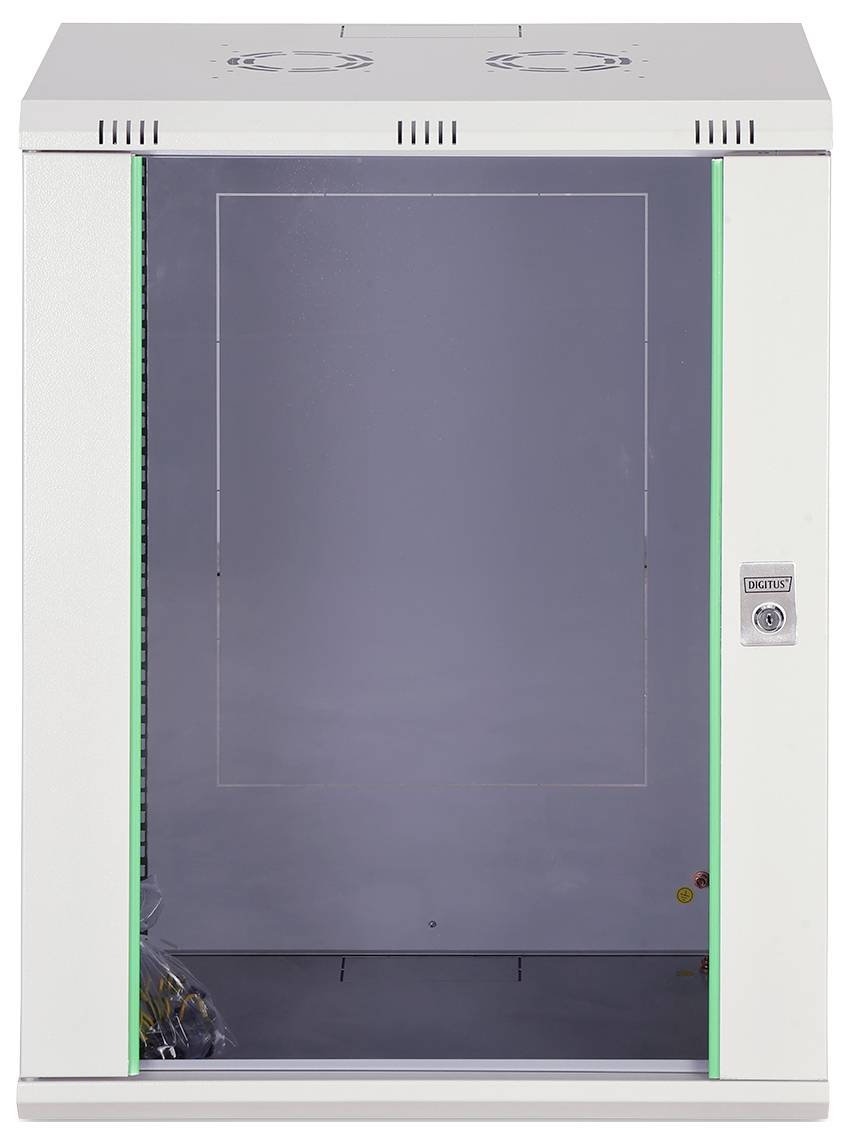

Small white server rack with a transparent door, featuring a lock and ventilation fans on top, suitable for housing network equipment.

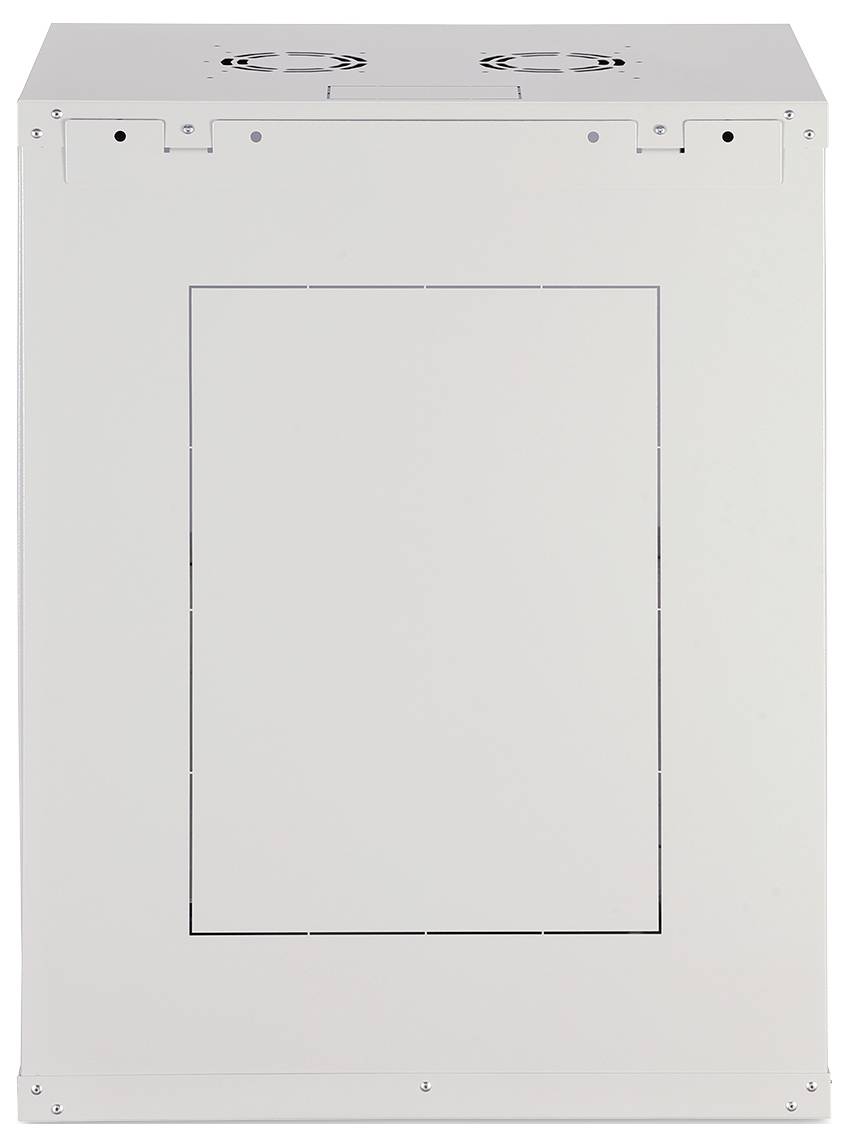

A plain, white rectangular metal cabinet with ventilation holes on the top. No visible markings or labels.

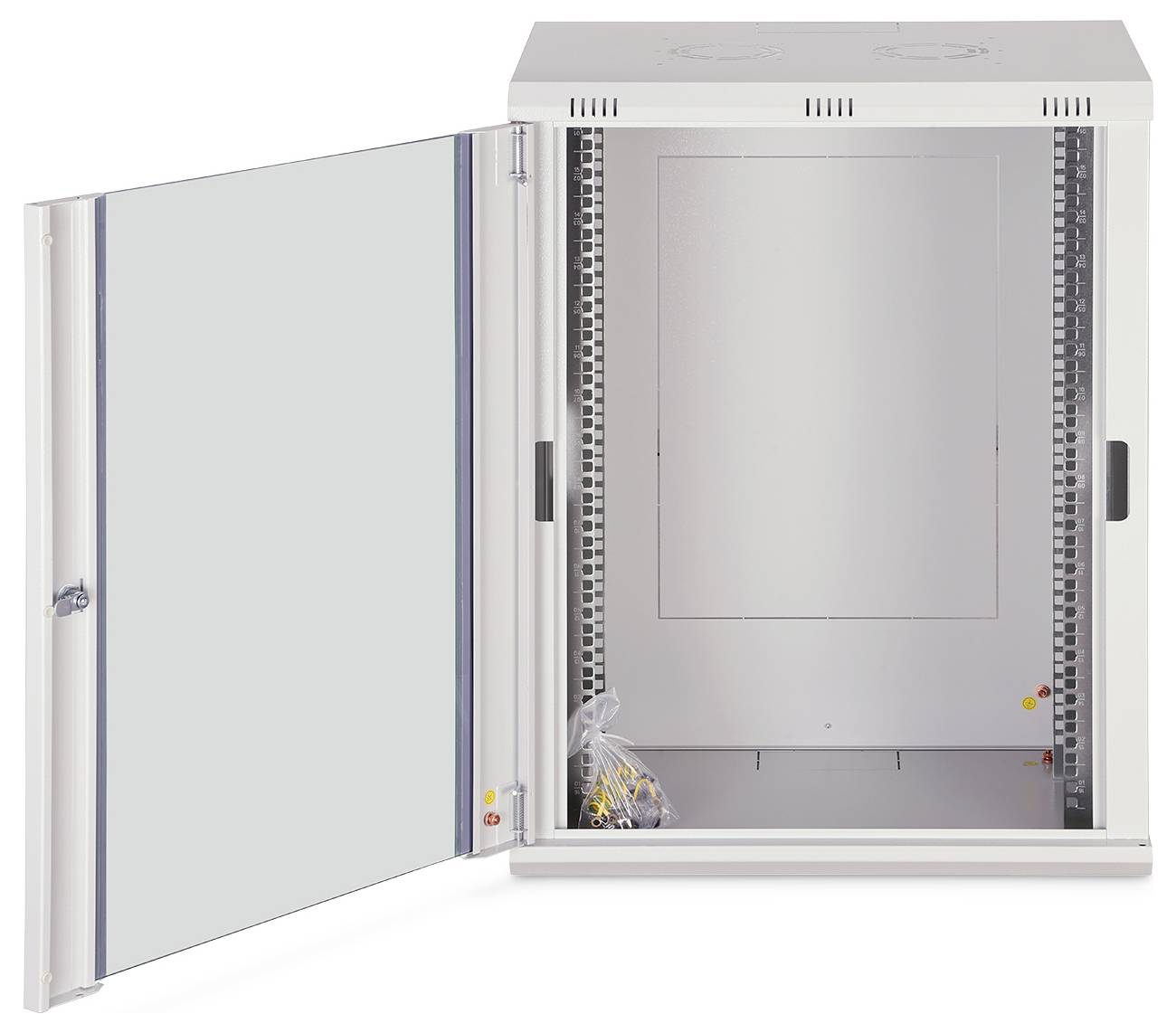

An open white server cabinet is empty, with a small bag of screws and bolts at the bottom. The door swings open to the left.

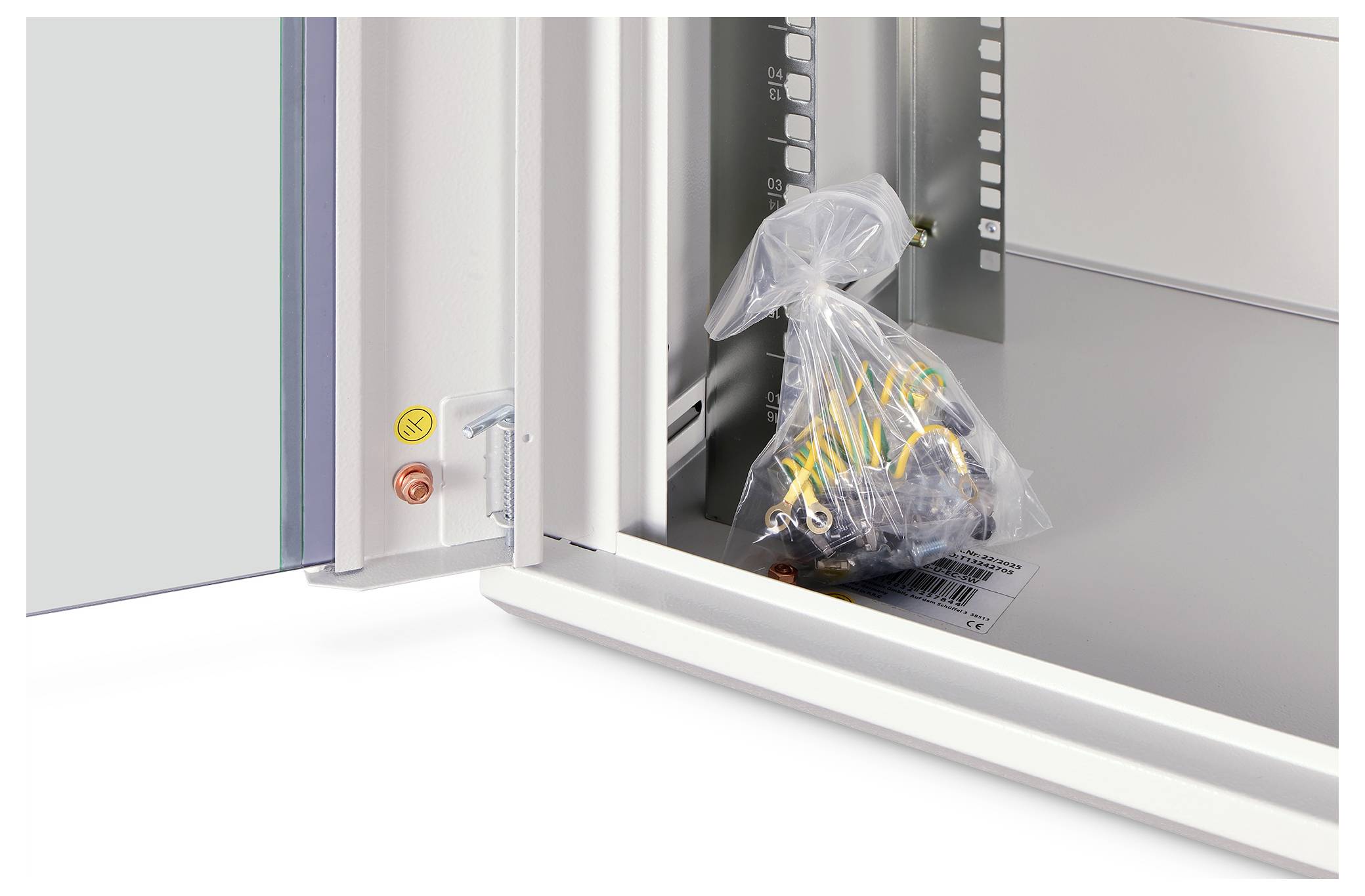

A plastic bag containing screws and small parts is placed inside an open metal cabinet with visible hinges and labeling.

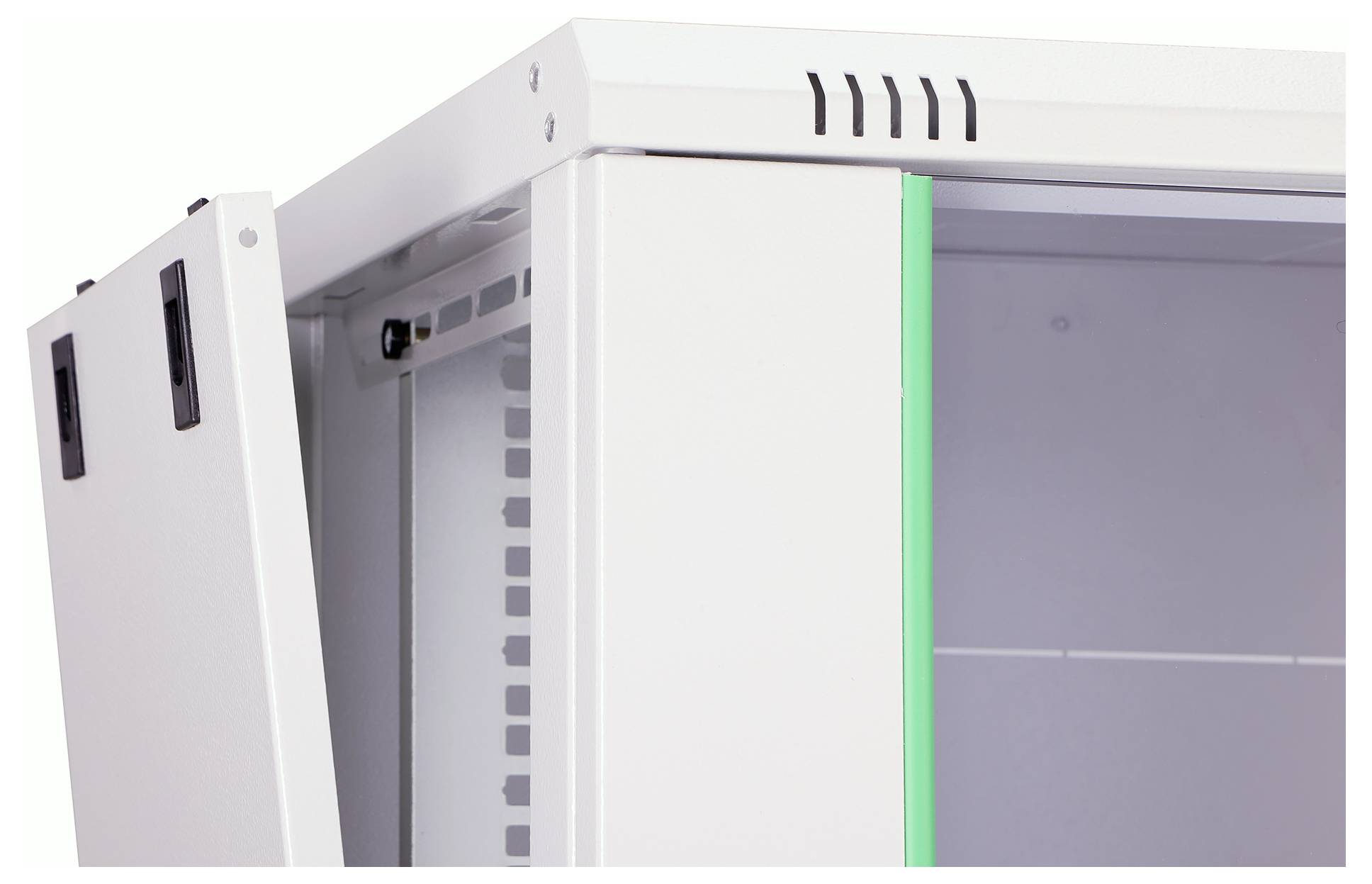

An open white metal cabinet with visible hinges and vents on top, showing a partly visible interior with vertical slots for shelving.

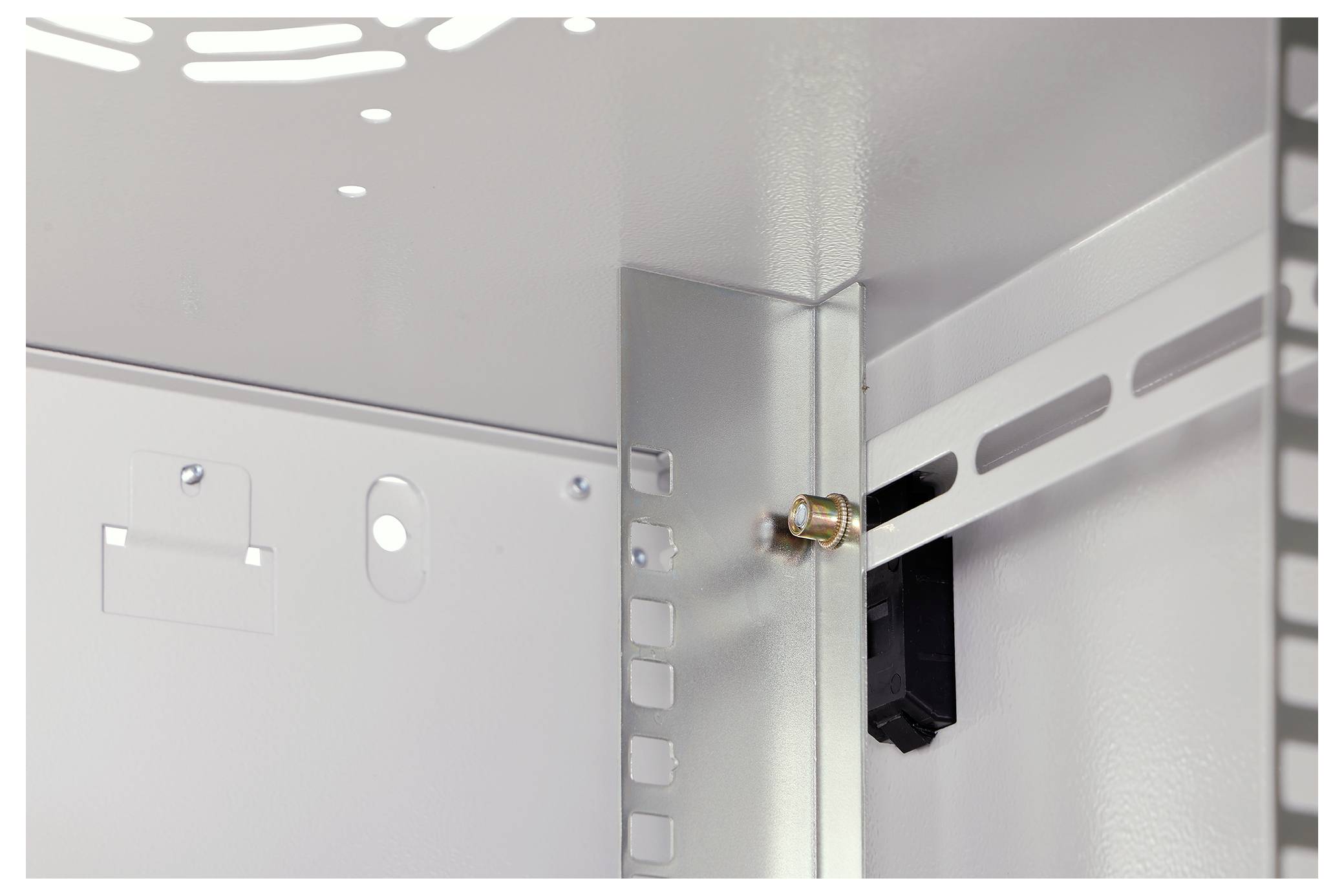

Interior of a metal electrical enclosure showing mounting rails and a bolt securing wiring components.

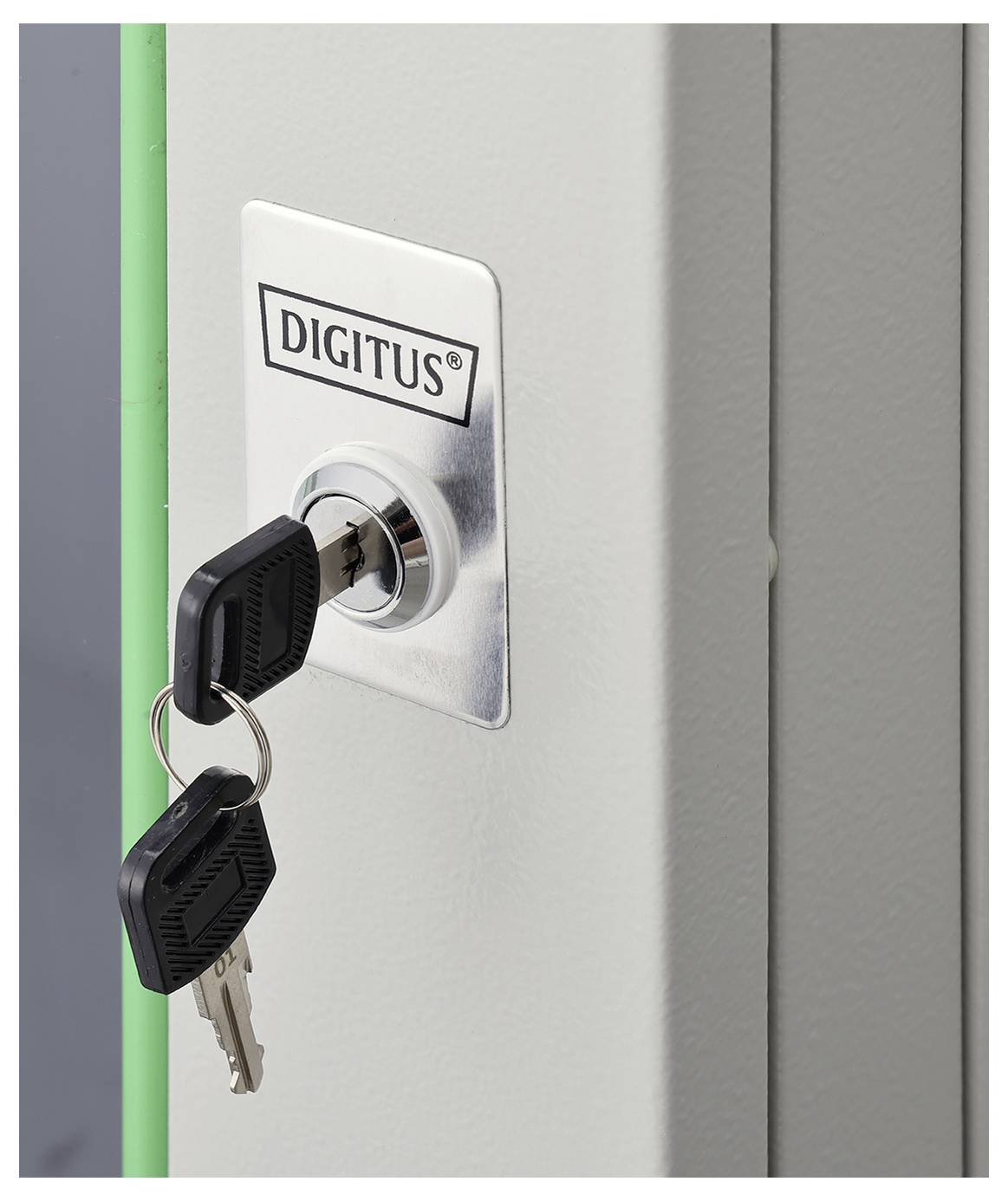

A close-up of a metal cabinet lock with two inserted keys, labeled 'DIGITUS'. The cabinet is gray with part of a green edge visible.

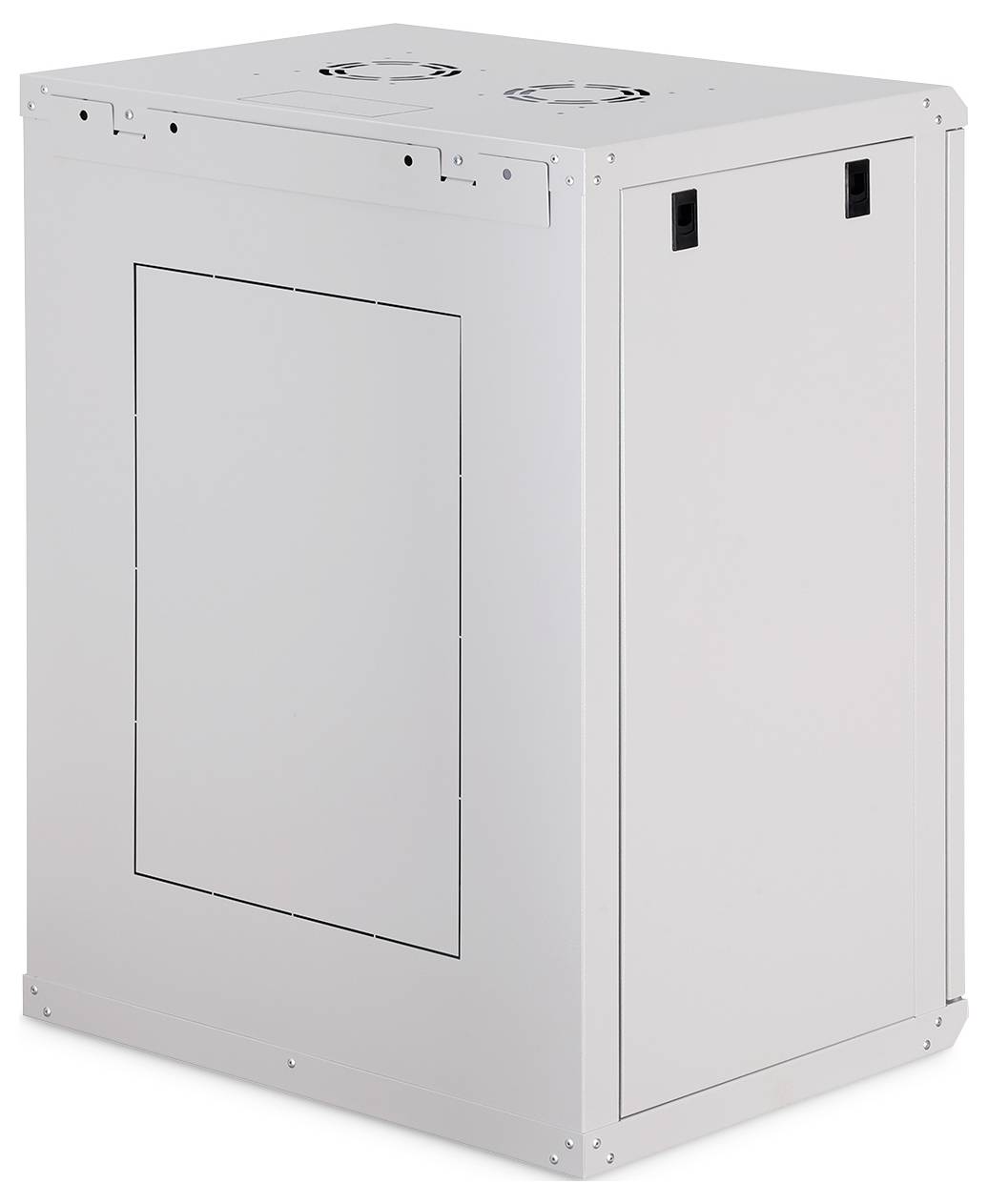

A rectangular, plain white metal housing unit with ventilation fans on top, possibly for containing technical or electronic equipment.

1/9

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

29 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 151.25 / piece)

€ 151.25

plus VAT.

Report legal concerns

Highlights & Details

Digitus Dynamic Basic series wall housing - 16 U(W x H x D) 600 x 816 x 450 mmGrey-white (RAL 7035)

16HE wall housing, dynamic 789x600x450 mm, color gray (RAL 7035)
Space-saving installation with a depth of 450 mm
Optimum ventilation
Lockable safety glass door with steel frames

Technical specifications

Product type: 19" wall cabinet

Rack unit: 16 U

Width: 600 mm

Height: 816 mm

Depth: 450 mm

Material: Safety glass
Steel

Dim: (W x H x D) 600 x 816 x 450 mm

Weight: 24.8 kg

Factory colour: Grey-white (RAL 7035)

Rack size: 483 mm (19")

Keyboard layout: German, QWERTZ

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1389742 Digitus DN-19 16-U-EC 19" wall cabinet (W x H x D) 600 x 816 x 450 mm 16 U Grey-white (RAL 7035)

User & Safety Instructions

User & Safety Instructions 1389742 Digitus DN-19 16-U-EC 19" wall cabinet (W x H x D) 600 x 816 x 450 mm 16 U Grey-white (RAL 7035)

Description

The network cabinets for wall mounting of the Dynamic series were developed for a simple and especially cost-optimized network expansion. The roof, floor and rear wall of each cabinet are equipped with a pre-cut cable inlet. To accommodate a fan module, the roof chassis is also provided with a cut-out area. Two pair of galvanized, with height units readable in both directions 483 mm (19")-profile rails are installed in the interior. The depth of these can be adjusted. Each cabinet is a sturdy steel construction made of up to 1.5 mm thick steel sheet. The coloring is in the form of electrostatic powder coating in the standard colors gray (RAL 7035) and black (RAL 9005). Removable side panels as well as the lockable and removable front door improve accessibility. A door stop can be changed. The wall mounting is done in two simple steps: The mounting plate supplied is screwed to the wall and then connected to the housing.

This text is machine translated.
