Buy Digitus DN-19 12-U-EC-SW 19" wall cabinet (W x H x D) 600 x 638 x 450 mm 12 U Black (RAL 9005)

Small black server rack with a glass front panel, featuring vertical green stripes, positioned on a white background.

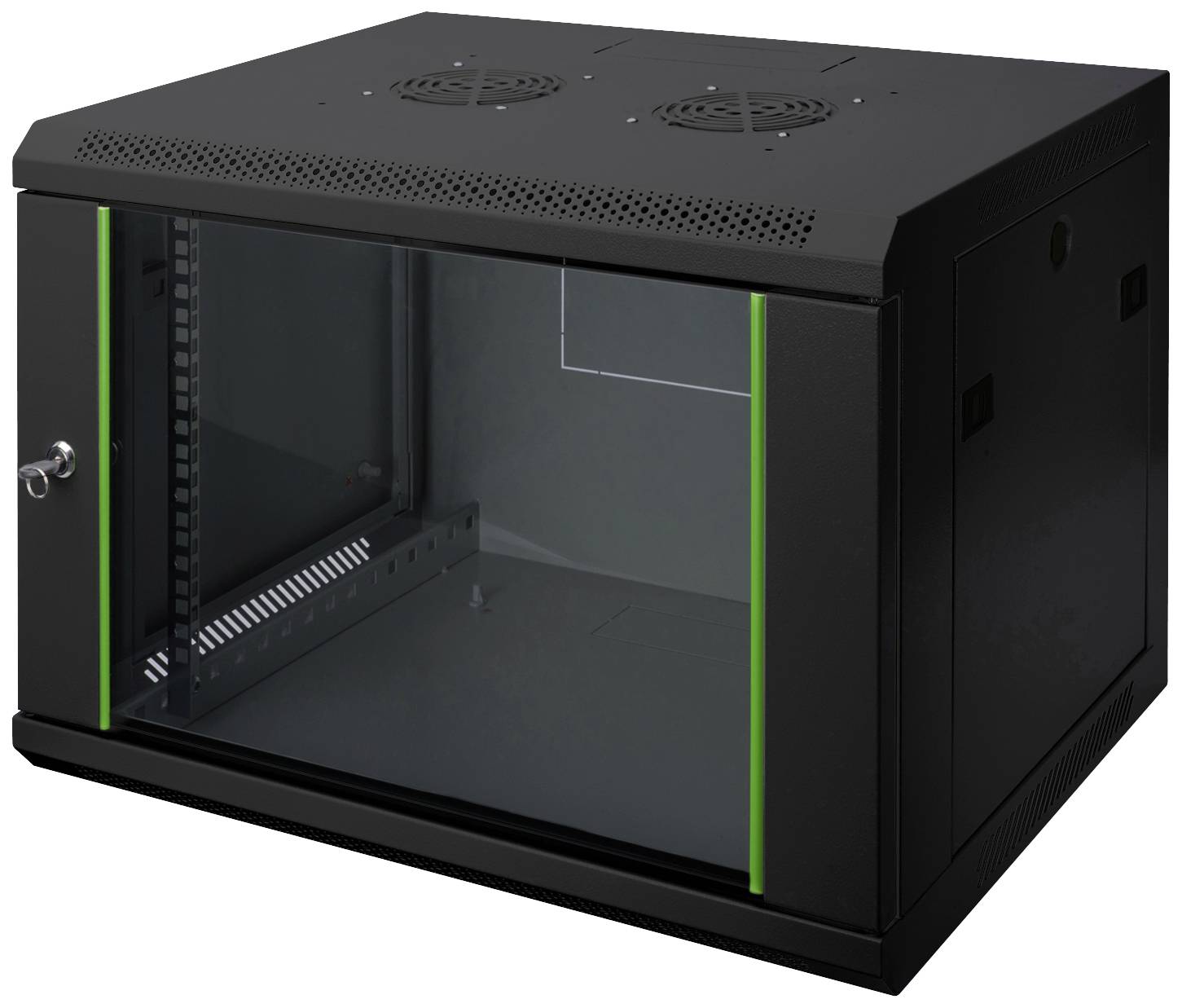

A black server cabinet with a transparent front door, green LED edges, and a lock mechanism, suitable for housing network equipment.

A black server rack cabinet with ventilation fans on top, viewed from the front. It's closed and designed for electronic equipment storage.

'Black wall-mounted server cabinet with open door, showcasing empty interior space and a small bag of installation hardware inside.'

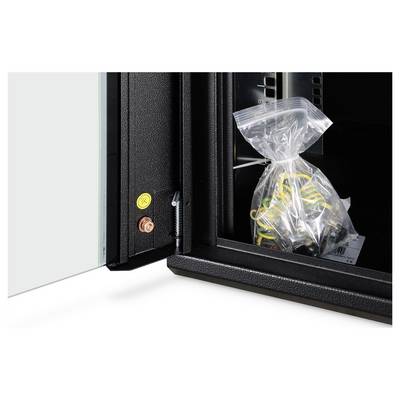

'Bag of screws and connectors inside an open black cabinet, highlighting interior packaging and storage solutions.'

Partially open black metal cabinet with vents on top, featuring a green-tinted glass door revealing an empty interior with slots.

Inside view of a black metal rack with a vertical metal support and perforated panels, showing a bolt attachment.

A black metal server rack cabinet, viewed from the front left angle, features a solid door with venting options on the top surface.

1/9

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

13 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 130.24 / piece)

€ 130.24

plus VAT.

Report legal concerns

Highlights & Details

Digitus Dynamic Basic series wall housing - 12 U(W x H x D) 600 x 638 x 450 mmBlack (RAL 9005)

12HE wall housing, dynamic 611x600x450 mm, color black (RAL 9005)
Space-saving installation with a depth of 450 mm
Optimum ventilation
Lockable safety glass door with steel frames

Technical specifications

Width 600 mm
Color: Black, RAL 9005
Front door: Glass door, single-wing
HEY: 12
Cabinet type: Wall housing
Depth: 450 mm
60 kg load capacity
IP protection class IP20

Product type: 19" wall cabinet

Rack unit: 12 U

Width: 600 mm

Height: 638 mm

Depth: 450 mm

Material: Steel plate

Dim: (W x H x D) 600 x 638 x 450 mm

Weight: 18300 g

Factory colour: Black (RAL 9005)

Rack size: 483 mm (19")

Type: Server rack cabinet

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2380174 Digitus DN-19 12-U-EC-SW 19" wall cabinet (W x H x D) 600 x 638 x 450 mm 12 U Black (RAL 9005)

User & Safety Instructions

User & Safety Instructions 2380174 Digitus DN-19 12-U-EC-SW 19" wall cabinet (W x H x D) 600 x 638 x 450 mm 12 U Black (RAL 9005)

Description

The network cabinets for wall mounting of the Dynamic series were developed for a simple and especially cost-optimized network expansion. The roof, floor and rear wall of each cabinet are equipped with a pre-cut cable inlet. To accommodate a fan module, the roof chassis is also provided with a cut-out area. Two pair of galvanized, with height units readable in both directions 483 mm (19")-profile rails are installed in the interior. The depth of these can be adjusted. Each cabinet is a sturdy steel construction made of up to 1.5 mm thick steel sheet. The coloring is in the form of electrostatic powder coating in the standard colors gray (RAL 7035) and black (RAL 9005). Removable side panels as well as the lockable and removable front door improve accessibility. A door stop can be changed. The wall mounting is done in two simple steps: The mounting plate supplied is screwed to the wall and then connected to the housing.

This text is machine translated.

Features

If the passive ventilation of the wall housing is not sufficient for devices such as routers, NAS, UPS, telecommunications system, a separately available fan module can be installed in the roof of the data cabinet
The door stop of the lockable front door can be changed from right to left as desired - ideal for the digital infrastructure in your company, home network or home office
Lockable safety glass door with steel frames
483 mm (19”) profile rails mounted on the front inside the cabinet, galvanized
483 mm (19") profile rails are adjustable in depth and marked with the height unit
0.8 - 1.2 mm robust sheet steel with high load capacity, powder-coated
Cable feed possible at rear, roof and floor (pre-punched openings)
Roof is prepared to accommodate a fan element (punched-out slots)
Ventilation slots for active and passive ventilation
4 earthing points (bottom, side panel and front door) with protective cap

Hints
