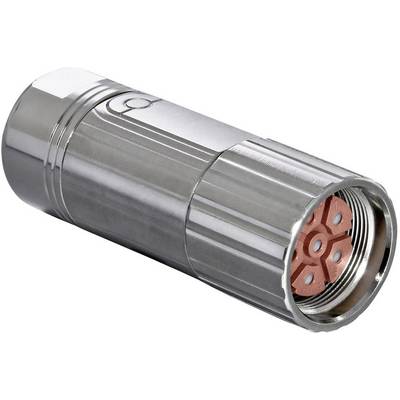

Intercontec BSTA085FR03480235C00 Contact connection: 6 x 0.35 - 2.5 mm² 24 A
EAN:
Part number:
Item no:
Connector type
Plug, straight
Connector cross section
Contact connection: 6 x 0.35 - 2.5 mm²
Rated voltage
630 V
Test current
24 A
Case material
Metal
Datasheet (PDF)
Number
Total (€ 40.33 / piece)
€ 40.33
plus VAT.
Highlights & Details
Intercontec BSTA085FR03480235C00 Contact connection: 6 x 0.35 - 2.5 mm² 24 A
Our service for you
Technical specifications
- Mating cycles: 500
- Connector type
Plug, straight
- Connector cross section
Contact connection: 6 x 0.35 - 2.5 mm²
- Rated voltage
630 V
- Test current
24 A
- Case material
Metal
- Manufacturer part #
BSTA085FR03480235C00
- Content
1 pc(s)
- Contact material
Gold plated
- Core diameter
7.5 - 12.0 mm
- RoHS-compliant
Yes
IP67
- Type
BSTA085FR03480235C00
- Seal
Screw cap
- Type
Power Connector
- Pins
5 + PE
- Connection
Crimp or solder
- Temperature range
-20 - +130 °C
Documents & Downloads
Datasheet
Datasheet 744976 Intercontec BSTA085FR03480235C00 Contact connection: 6 x 0.35 - 2.5 mm² 24 A
User & Safety Instructions
User & Safety Instructions 744976 Intercontec BSTA085FR03480235C00 Contact connection: 6 x 0.35 - 2.5 mm² 24 A
Description
Universally usable plug-in system for quick and easy installation thanks to secure housing coding and speed tec ® snap closure or screw cap. Sturdy metal housing, 360° EMC shielding, gold-plated contacts, crimp or solder-able. Vibration-proof up to 20 g.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Connector incl. contacts.
Hints
Data sheet and installation instructions.
