Image similar

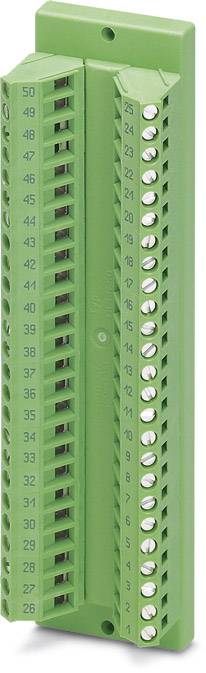

Interface module DFLK-D50 SUB/S 2291286 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Transfer module
Total no. of pins
50
Connection
Screw terminal
Stripping length (max.)
8 mm
Dim
(L x W x H) 33.5 x 40 x 143.5 mm
Datasheet (PDF)
Number (Package size 5 pc(s))
Total (€ 177.80 / piece)
€ 929.00
€ 889.00
incl. VAT
14-day return policy included
Highlights & Details
Interface module DFLK-D50 SUB/S
- DFLK-D50 SUB/S
- Industrial packaging with 5 pieces
Technical specifications
- Product type
Transfer module
- Total no. of pins
50
- Connection
Screw terminal
- Stripping length (max.)
8 mm
- Dim
(L x W x H) 33.5 x 40 x 143.5 mm
- Connector (field)
Screws
- Connector (control)
D-Sub pin strip
- Industrial packaging
Yes
- Content
5 pc(s)
- Number of pins
50
- Width
40 mm
- Height
143.5 mm
- Length
33.5 mm
- Series
Varioface-DFLK-D
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Features
Any orientation
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 773678 Interface module DFLK-D50 SUB/S 2291286 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 773678 Interface module DFLK-D50 SUB/S 2291286 Phoenix Contact
Description
The VARIOFACE feed-through module implements a 1:1 connection between plug-in screw connection terminal blocks and a D-SUB miniature pin strip (number of positions: 50). There is no separate ground tap.
Hints
Special order, no right of withdrawal.
