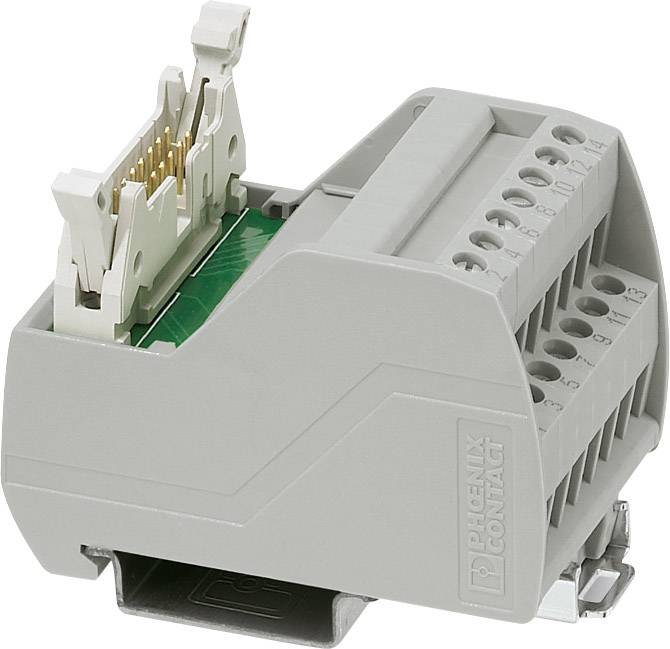

Interface module VIP-2/SC/FLK16 2315036 Phoenix Contact
Packaging type
Piece
Product type
Transfer module
Total no. of pins
16
Stripping length (max.)
8 mm
Dim
(W x H) 45 mm x 65.5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 53.99 / piece)
€ 53.99
incl. VAT
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
16
- Stripping length (max.)
8 mm
- Dim
(W x H) 45 mm x 65.5 mm
- Connector (field)
Screws
- Connector (control)
IDC/FLK strip
- Content
1 pc(s)
- Number of pins
16
- Width
45 mm
- Height
65.5 mm
- Series
Varioface-VIP
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Features
Any orientation
+ ribbon cable
+ latches
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 773719 Interface module VIP-2/SC/FLK16 2315036 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 773719 Interface module VIP-2/SC/FLK16 2315036 Phoenix Contact
Description
VARIOFACE module, with screw connection and flat-ribbon cable plug-in connector, for mounting on NS 35 rails, with pin strip and short and long locking latches for socket strips, 16-pos.
