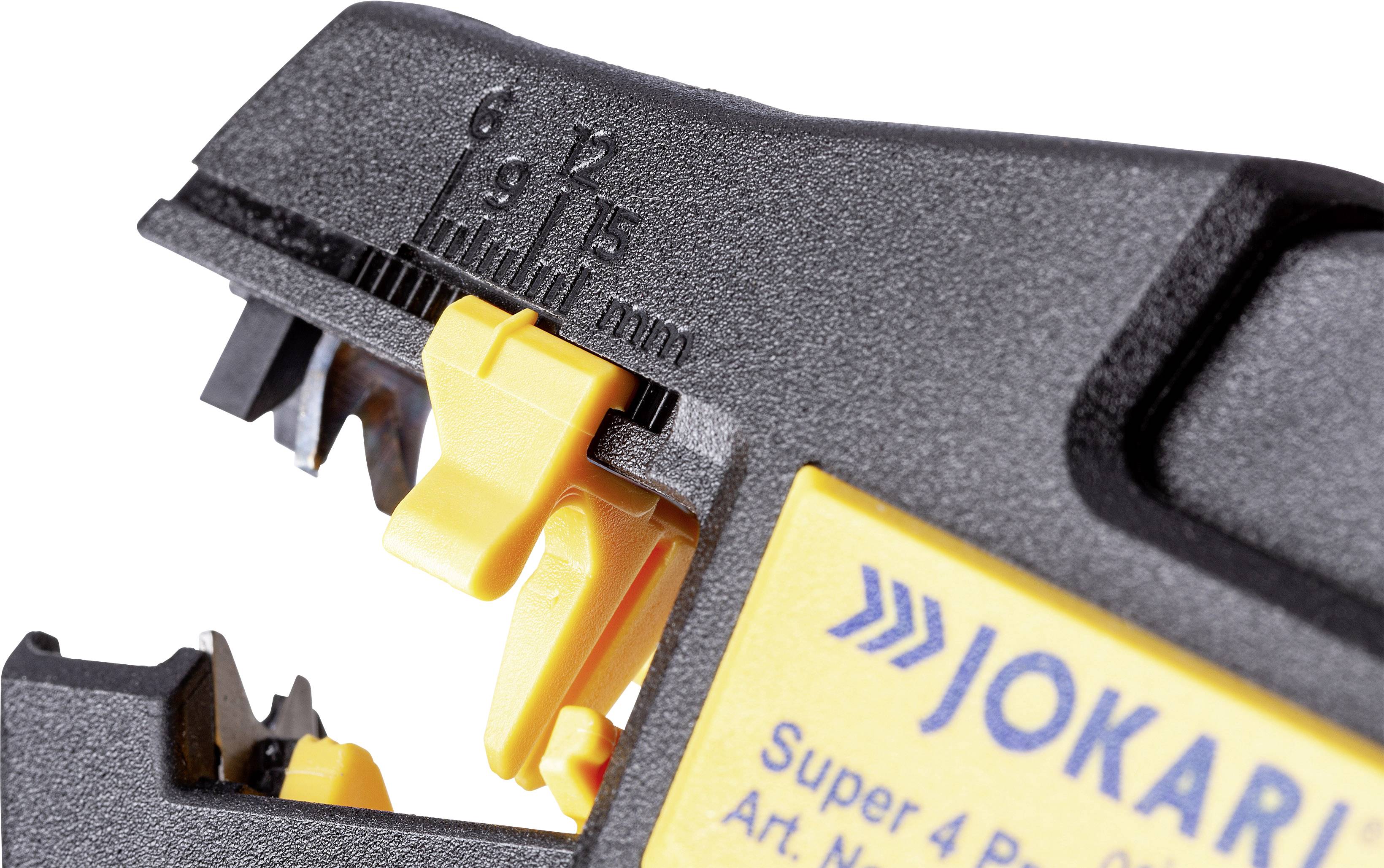

A wire stripping pliers with yellow adjustment and millimetre scale for precise cable stripping.

Close-up of a tool with markings '.50 .25 inch'. Yellow handles visible, presumably for adjustment or measurement.

Close-up of a yellow wire stripper with an engraving '2.5'.

Close-up of a black and yellow wire stripper with a scale from 6 to 9 mm. In the bottom right, part of the label with the inscription 'JOKARI' is visible.

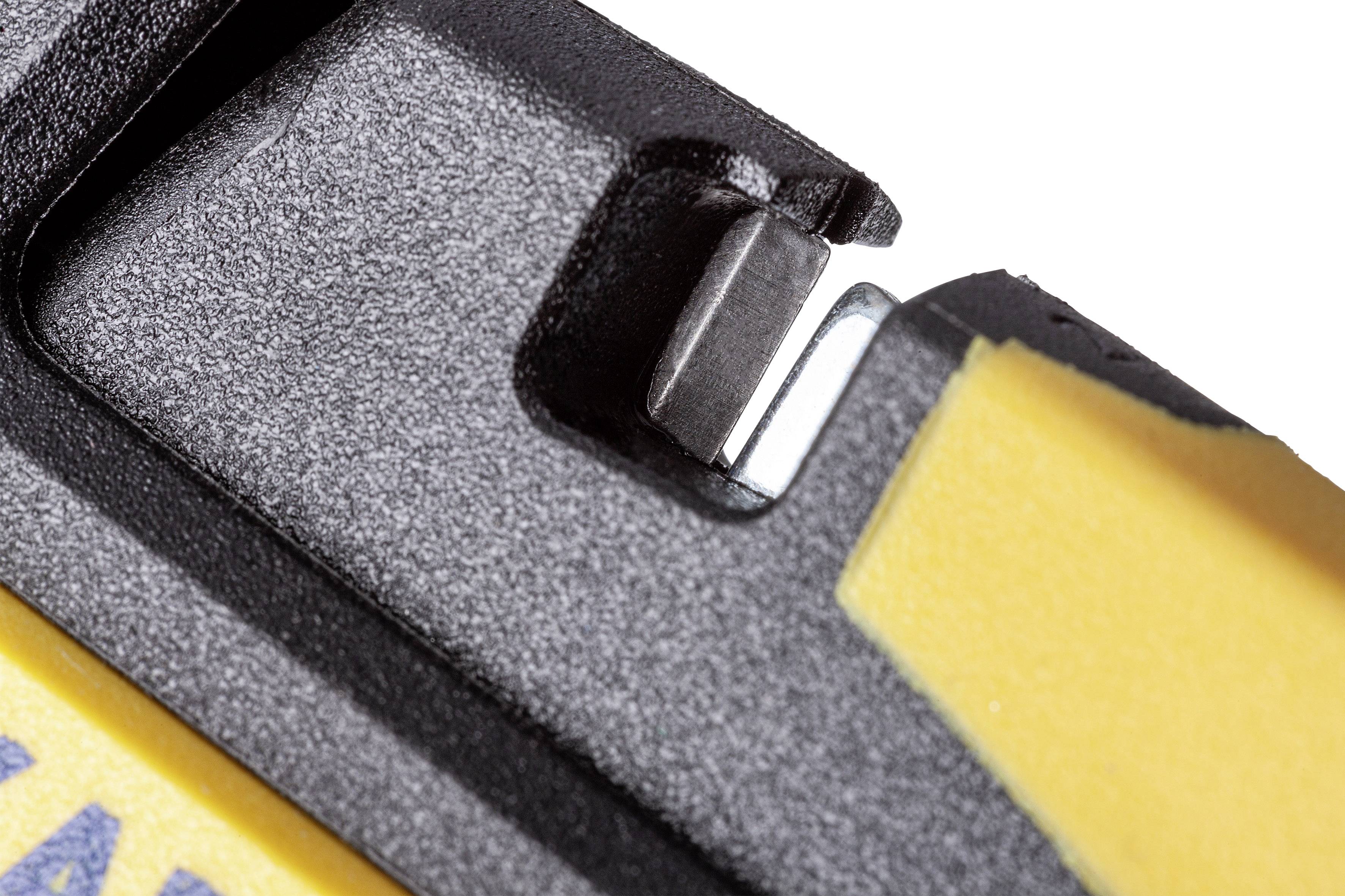

A yellow and black tool with a sharp metal blade for cutting materials, close-up of the blade.

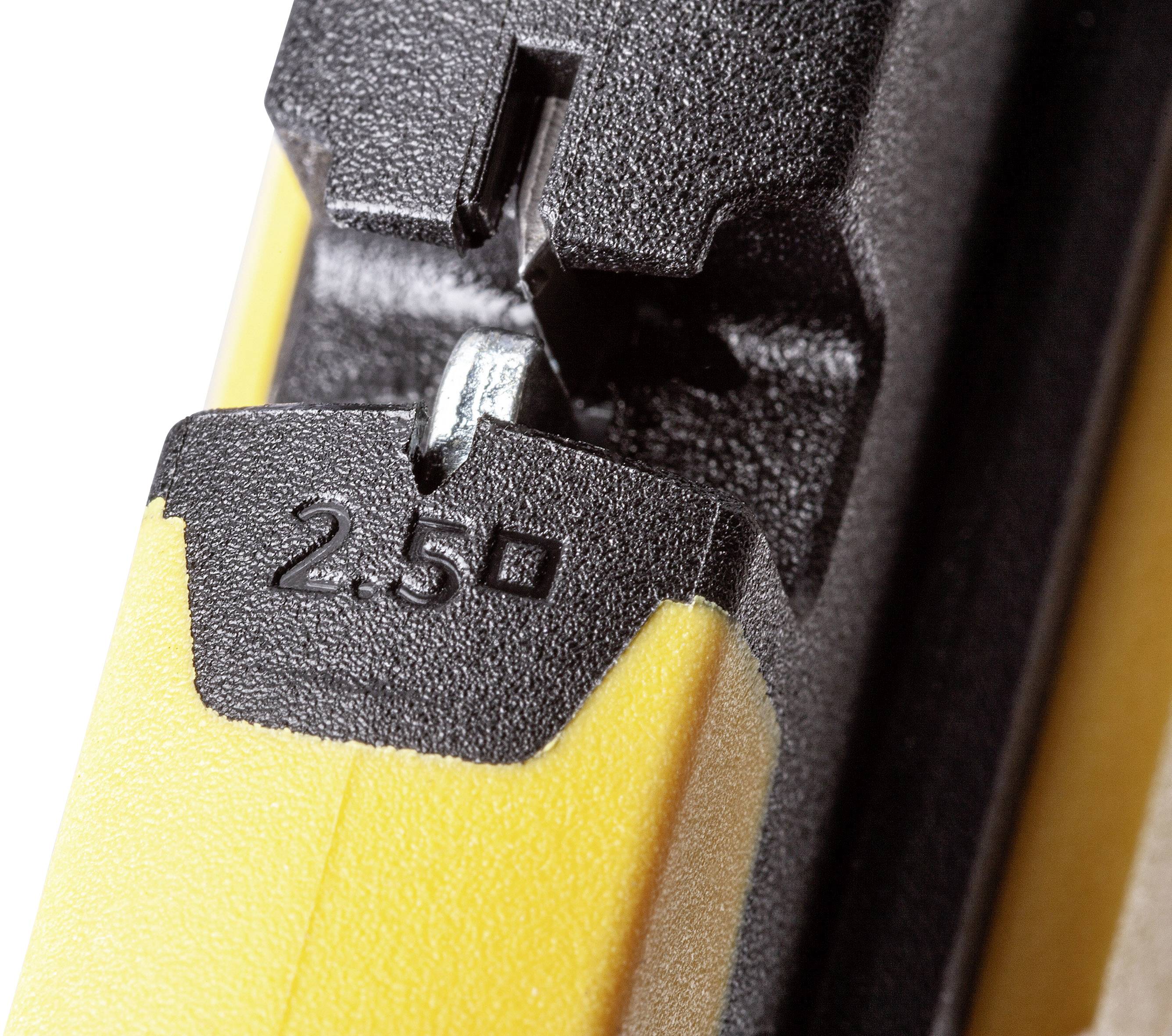

Close-up of a yellow wire stripping tool indicating a 2.5 mm wire size.

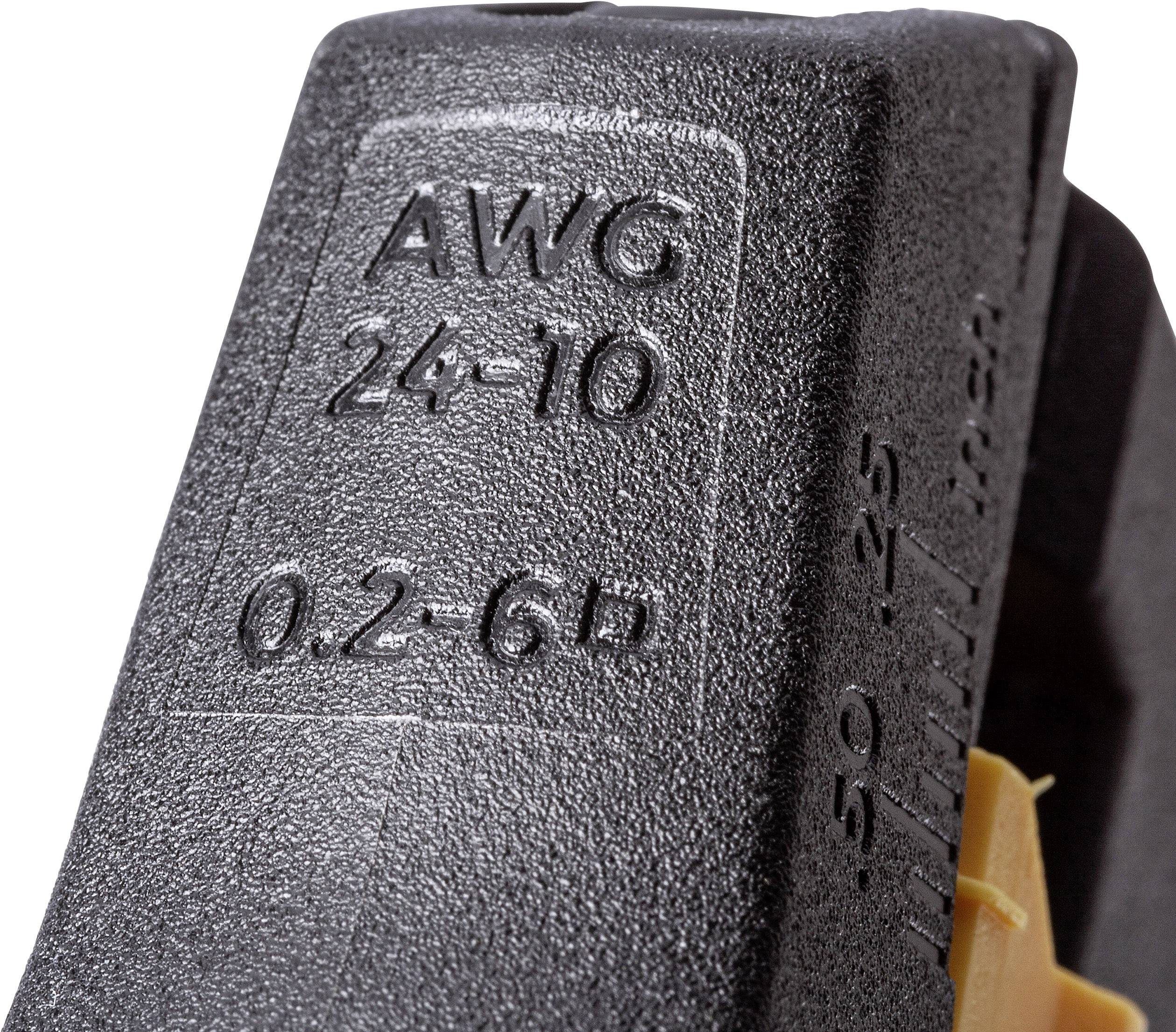

Close-up of a tool with the markings 'AWG 24-10' and '0.2-6'. The tool is likely used for stripping electrical cables.

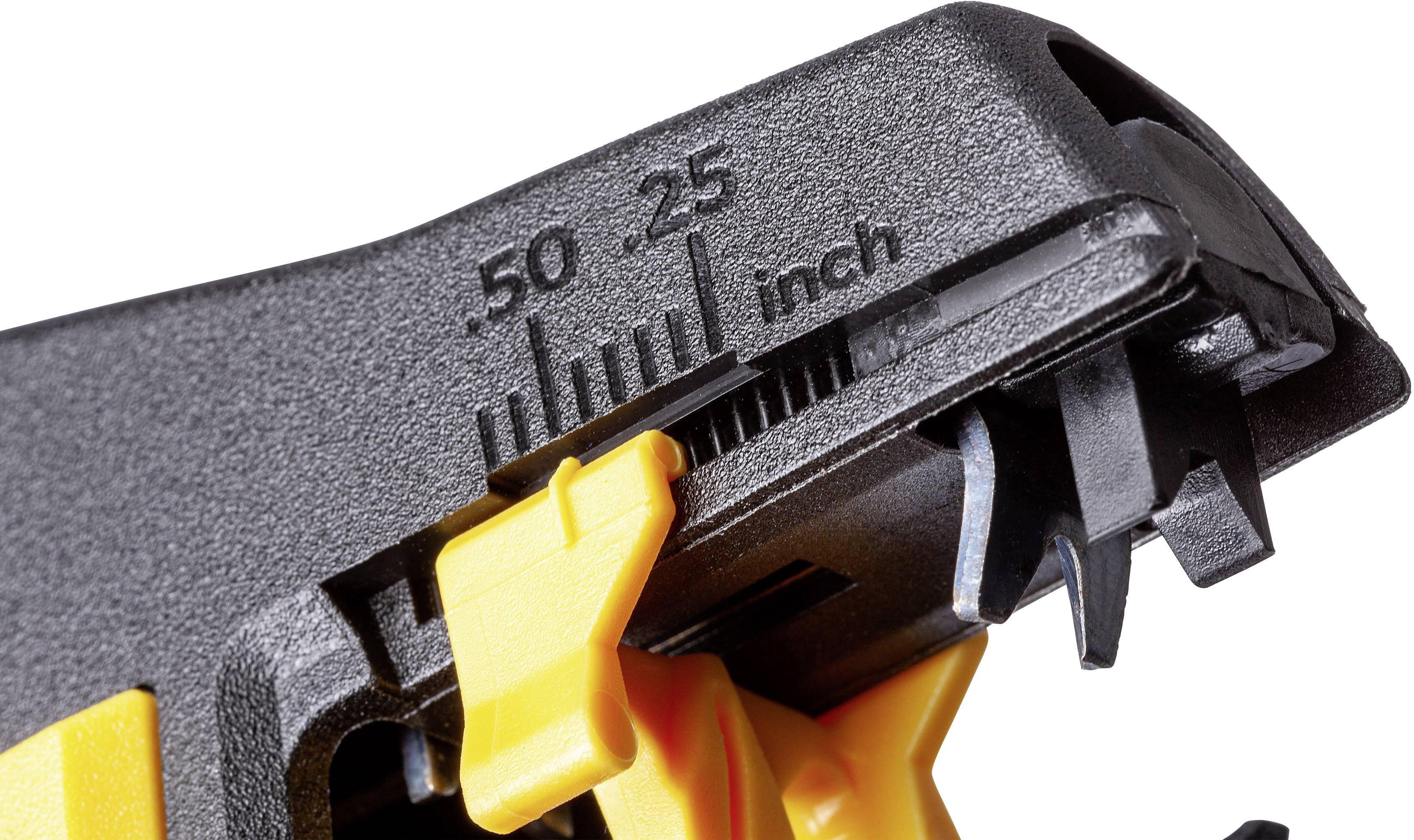

Close-up of a measuring tool with yellow and black components, showing a scale in inches from 0 to .50 for precise measurement.

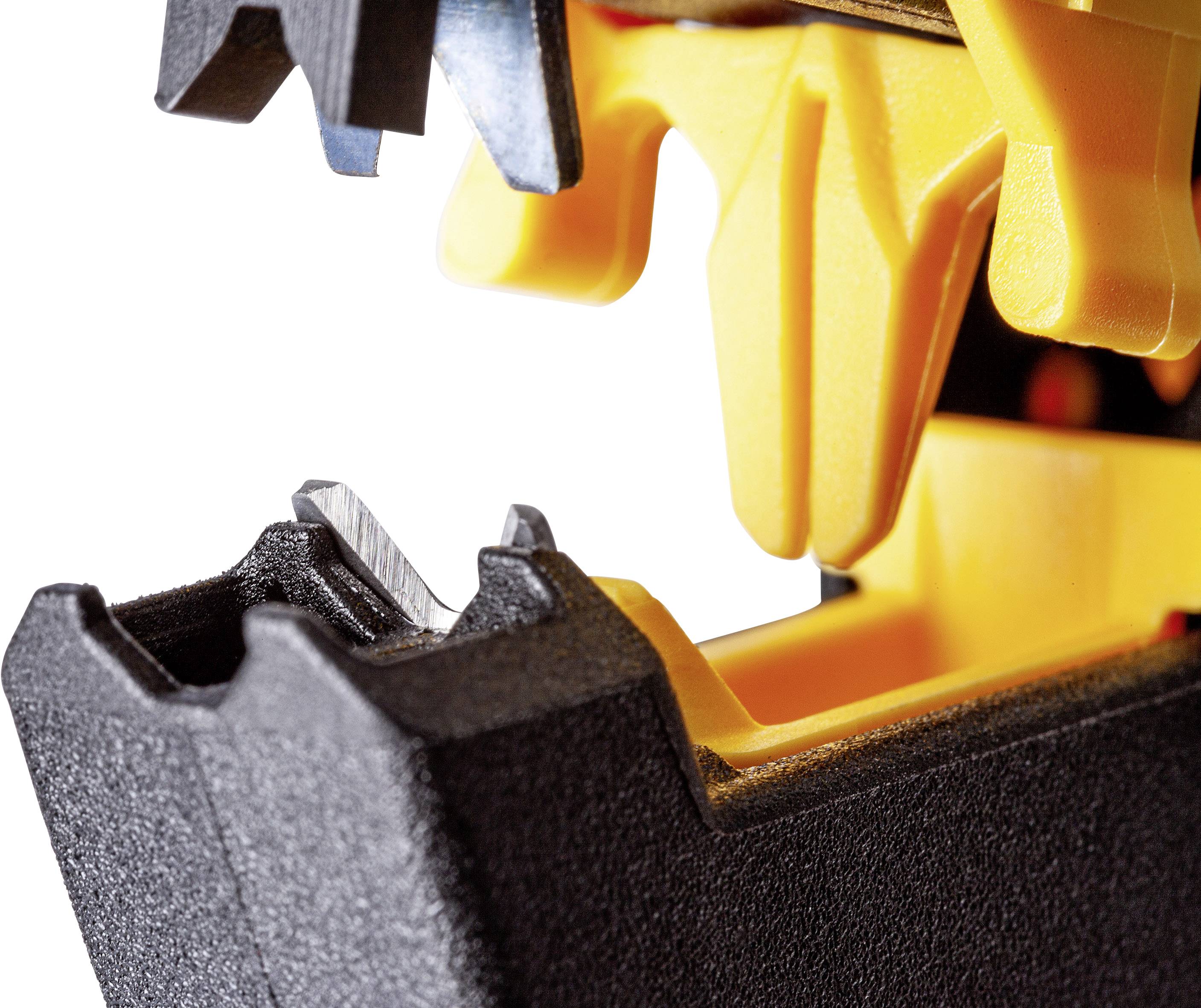

Close-up of a yellow plastic clip holding a black component. Technical image illustrating a mechanism.

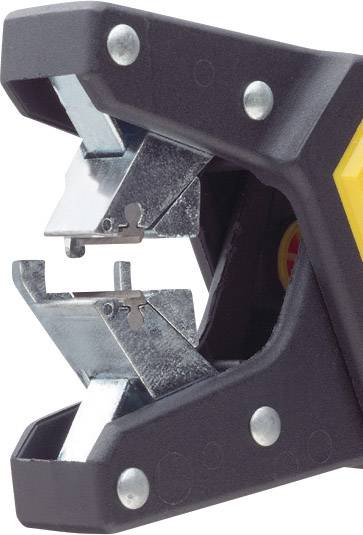

Close-up of a wire stripping tool in an open position, showing the metal blades and black plastic handle.

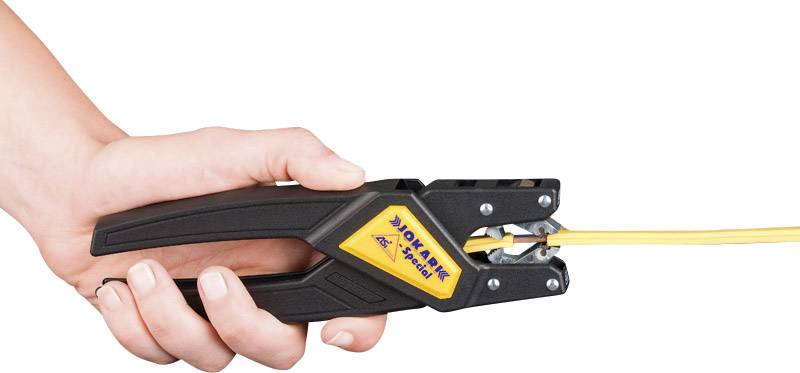

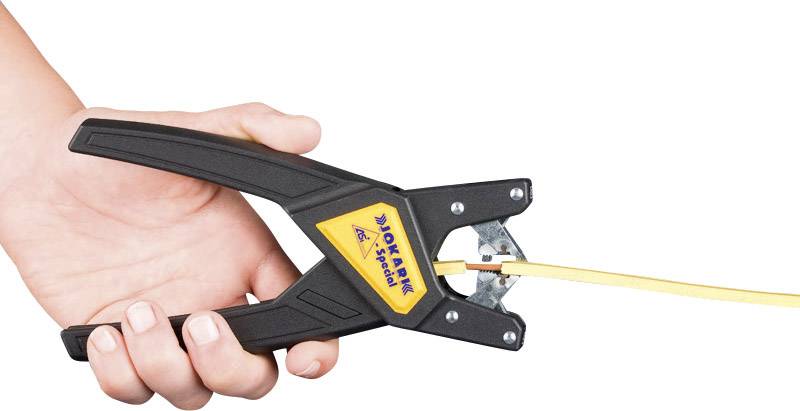

A hand is holding a wire stripper that is stripping a yellow cable. The tool has a black housing with a yellow inscription on the handle.

1/18

Fast track dispatch on Tue, 22 Sep

20 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 23.52 / piece)

€ 23.52

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Automatic cable stripper

TÜV / GS-approved.
Blades can be replaced.
Side cutter up to 2.5 mm²

Technical specifications

Product type: Automatic stripper

Suitable for: PVC-coated cables

Working area (cross section): 0.2 up to 6.0 mm²

Working area cross section (min.): 0.2 mm²

Operating range (cross section) (max.): 6.0 mm²

Operating range (AWG diameter): 10 up to 24

Operating range (AWG cross section) (min.): 24

Operating range (AWG cross section) (max.): 10 awg

Length stop range: 5 up to 15 mm

Length stop (min.): 5 mm

Length stop (max.): 15 mm

Length: 163 mm

Width: 29 mm

Weight: 94 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2237183 Jokari Super 4 Pro 8203200 Automatic stripper 0.2 up to 6.0 mm² 10 up to 24

Description

The Super 4 Pro is an ergonomic, automatic stripping pliers for solid and flexible conductors with PVC insulation from 0.2 to 6,0mm². The pistol shape is best suitable for applying the power transmission optimally to the pliers. The narrow clamp jaw is also used to work in places that are difficult to access. The pliers have side cutters for conductors up to 2.5 mm². In order to carry out series work easily and without errors, the stripping length can be fixed with the help of the adjustable length stop of 6 - 15 mm. The stripping pliers automatically adjusts to the cable cross-section through the special scanning system and thus prevents the inner conductors and strands from being damaged. Fatigue-free working is ensured due to the two-component zones in the grip area. The blades can be easily replaced after wear.
