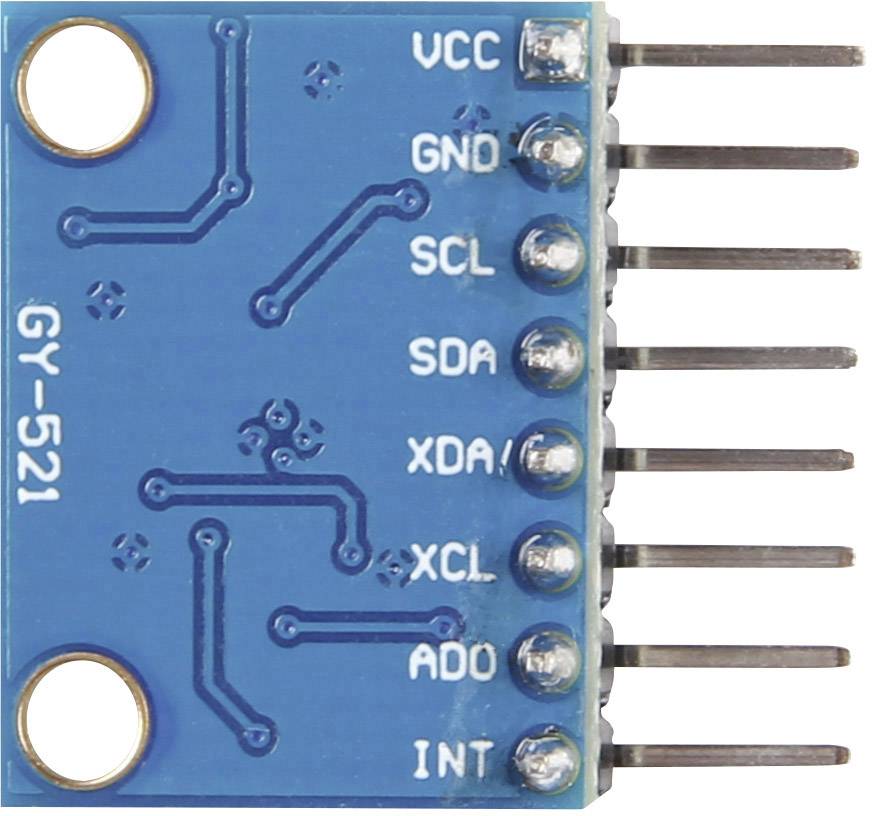

Joy-it MPU6050 Acceleration sensor 1 pc(s) Compatible with (development kits): BBC micro:bit, Arduino, Raspberry Pi®, Ro
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 4.19 / piece)
€ 6.71
-38 %
€ 4.19
plus VAT.
Highlights & Details
6-axis acceleration/gyro-chip module I2C
- Module chip: MPU 6050
- 3 acceleration axes
- 3 position axes
- Interface: I2C
- 16 bit AD converter
Technical specifications
- KEY FEATURES
- Module chip
- MPU6050
- Axis
- 3 acceleration and 3 position axes
- Degrees of freedom
- 6 DOF simultaneously
- Voltage supply
- 3.3 -5 Volt (DC)
- Voltage regulation
- Low dropout regulator
- Interface
- I²C
- Built-in chip
- 16-bit AD converter
- Dimensions
- 25 x 20 x 7 mm
- Included in the delivery
- Sensor MPU6050 module
- OTHER SPECIFICATIONS
- Pins
- 8 pieces
- Standard pin spacing
- 2.54 mm
- Accelerometer Range:
- Sensitivity
- ± 2, ± 4, ± 8, ± 16 g.
- 16384 LSB/g ±2g
- 8192 LSB/g ± 4g
- 4096 LSB/g ± 4g
- 2048LSB/g ±16g
- Gyro range:
- Sensitivity
- 131 LSB/dps ± 250 dps
- 65.5 LBS/dps ± 500 dps
- 32.8 LBS/dps ± 1000 dps
- 16.4 LBS/dps ± 2000 dps
- Packaging type
Piece
- Product type
Acceleration sensor
- Compatible with
Arduino
- Interfaces
I²C
- Min. operating voltage
3 V
- Max. operating voltage
5 V
- Suitable for
Raspberry Pi®
- Tool type
Development kit
- Height
7 mm
- Length
20 mm
- Width
25 mm
- Internal ports
Pin header
- Compatible with
BBC micro:bit
Arduino
Raspberry Pi®
Rock Pi
Banana Pi
C-Control
Calliope
Documents & Downloads
Datasheet
Datasheet 2136256 Joy-it MPU6050 Acceleration sensor 1 pc(s) Compatible with (development kits): BBC micro:bit, Arduino, Raspberry Pi®, Ro
User & Safety Instructions
User & Safety Instructions 2136256 Joy-it MPU6050 Acceleration sensor 1 pc(s) Compatible with (development kits): BBC micro:bit, Arduino, Raspberry Pi®, Ro
Description
The MPU 6050 operates at a voltage of 3.3 to 5 volts (DC). The integrated I2C interface makes it compatible with all SBC and controllers such as Raspberry, Arduino, etc. Please refer to the data sheet or technical details for the exact technical details.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Module
