Name: Joy-it sen-mq7 Carbon monoxide detector 1 pc(s) Compatible with (development kits): Raspberry Pi®, Arduino
Brand: Joy-it
SKU: 2205379
Availability: SoldOut

A sensor with electronic components on a circuit board, including a blue potentiometer and several connectors.

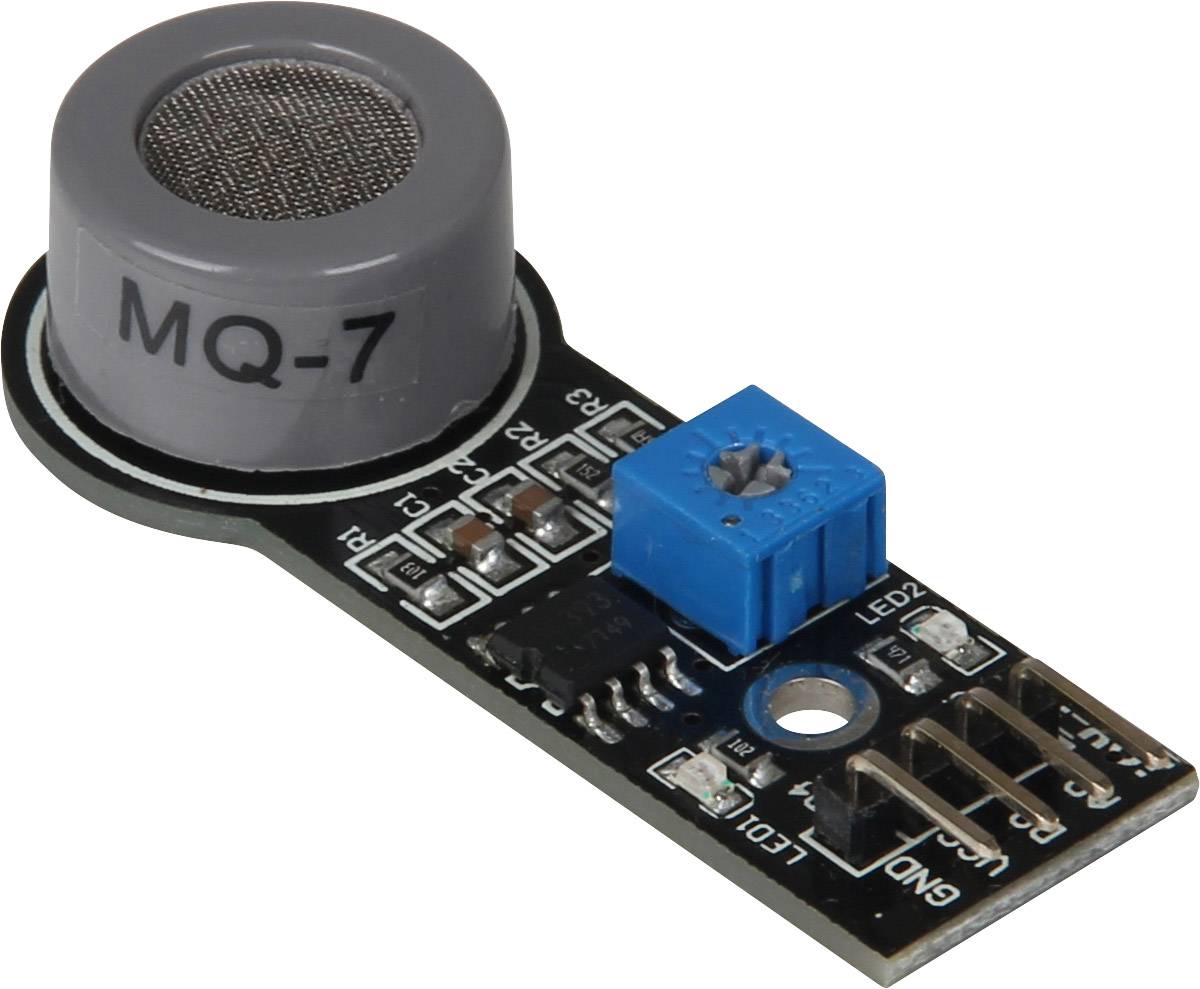

'Photo of an MQ-7 gas sensor. The sensor has a cylindrical housing, is mounted on a circuit board and features a blue potentiometer.'

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 4.29 / piece)

€ 4.29

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Analogueue carbon monoxide sensor

Carbon monoxide (CO) sensor
Low temperature detection
Sensitivity can be regulated
Measuring range 300 . 10,000 ppm

Technical specifications

Measurement range 300 - 10,000 ppm
Measurable substances Carbon monoxide (CO)
Application areas recognize gas leaks, for
Gas alarm, robotics, microcontroller projects
Compatible with Raspberry Pi (with ADconverter),
Arduino, etc.
Special features high sensitivity, which
With the potentiometer
can be customized,
Low Temperature
Detection of gas
Dimensions 52 x 20 x 13 mm
Analogue output Evaluation of the measured values
From the microcontroller
Digital output (with potentiometer)
Threshold setting
possible
Pins:
VCC
GND
AOUT
DOUT
Power supply 5V
Earth
Analogueue output
Digital output
Loop voltage 10 V DC
Heating voltage 5.0 V ± 0.2 V
Heating resistor 31 Ω ±3Ω (room temperature)
350 mW heating power
Surface resistance of the sensitive
Materials
2 -20 KΩ in 100ppm CO
Operating temperature -20 - 50 °C.

Packaging type: Piece

Product type: Carbon monoxide detector

Compatible with: Arduino

Interfaces: Analogue

Max. operating voltage: 5 V

Suitable for: Raspberry Pi®

Tool type: Tester

Height: 13 mm

Length: 52 mm

Width: 20 mm

Internal ports: Pin header

No. of outputs: 2 x

Compatible with: Raspberry Pi®
Arduino

Documents & Downloads

Datasheet

Datasheet 2205379 Joy-it sen-mq7 Carbon monoxide detector 1 pc(s) Compatible with (development kits): Raspberry Pi®, Arduino

User & Safety Instructions

User & Safety Instructions 2205379 Joy-it sen-mq7 Carbon monoxide detector 1 pc(s) Compatible with (development kits): Raspberry Pi®, Arduino

Description

This analogueue gas sensor has
a small heating element with
an electronic-chemical sensor.
It is
suitable for indoor use.

Measurable substances: Carbon monoxide (CO)

The sensitivity of the sensor can be adjusted via a potentiometer. For example, you can set a threshold that triggers a gas alarm.
