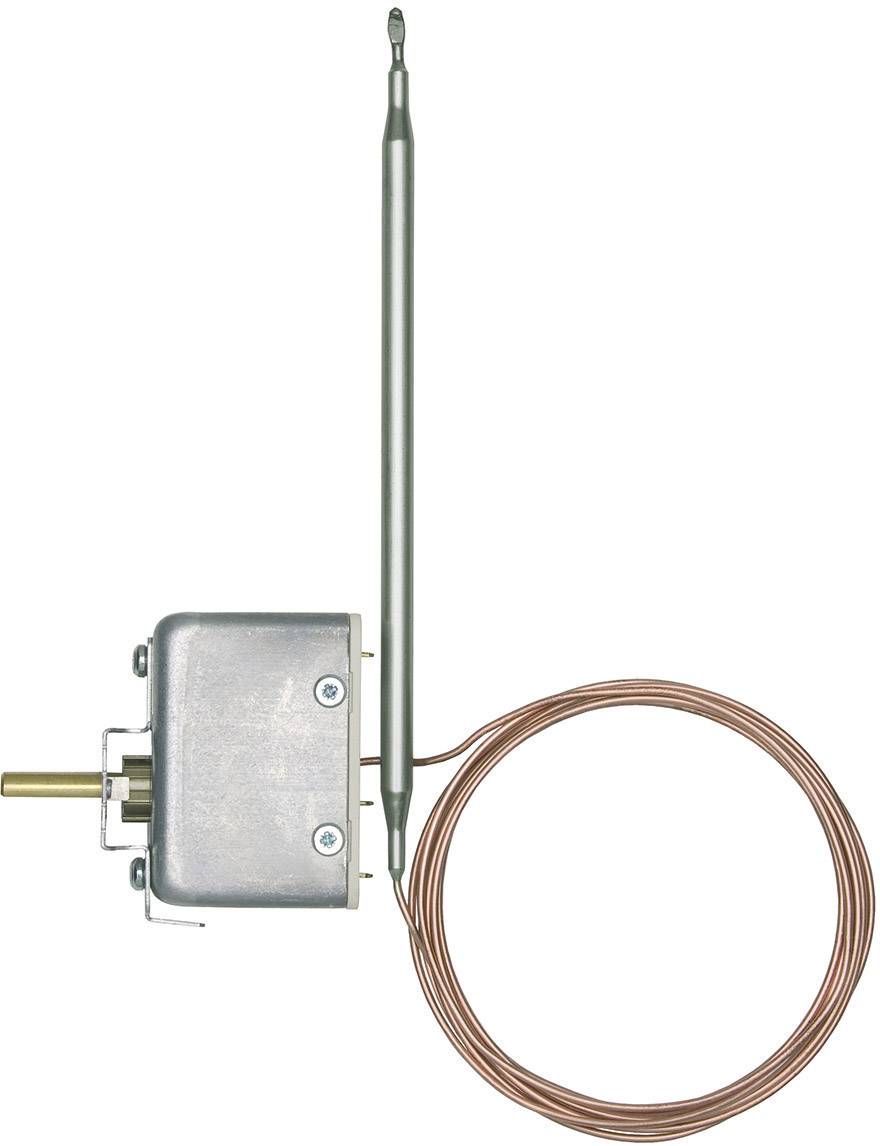

Jumo 60000495 Bang-bang Temperature controller 50 up to 300 °C 16 A relay
EAN:
Part number:
Item no:
Product type
Temperature controller
Thermostat type
Bang-bang
Operating voltage
230 V AC
Max. temperature reading
300 °C
Outputs (thermostats)
16 A relay
Datasheet (PDF)
Number
Total (€ 176.46 / piece)
€ 176.46
plus VAT.
Technical specifications
- Control range 50..300°C.
- Switching difference: 2.5 %
- Transmission line length: 1000mm
- WST.remote line: CU (copper)
- Process connection: Smooth round sensor
- Sensor diameter 6 mm
- Material sensor: CrNi (stainless steel)
- Switching voltage 230 volt
- Switching current: 16A cos=1
- Voltage type: AC
- DIN mark: Yes.
- Product type
Temperature controller
- Type
60000495
- Thermostat type
Bang-bang
- Operating voltage
230 V AC
- Reading range
50 up to 300 °C
- Max. temperature reading
300 °C
- Min. temperature reading
50 °C
- Outputs (thermostats)
16 A relay
- No. of relay outputs
1
- Length
1000 mm
IP00
- Manufacturer part #
60000495
- Mounting type
Recess-mount
- Weight
0.1441 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1928131 Jumo 60000495 Bang-bang Temperature controller 50 up to 300 °C 16 A relay
User & Safety Instructions
User & Safety Instructions 1928131 Jumo 60000495 Bang-bang Temperature controller 50 up to 300 °C 16 A relay
Description
Thermostats control and monitor thermal processes The devices of the type series EM are available as temperature controller TR, temperature monitor TW, temperature limiter TB, safety temperature monitor STW (STB) and safety temperature limiter STB. The STB is offset
In the event of faults, the monitored system must be in a safe operating state.
Built-in thermostats work according to the principle of liquid expansion; a microswitch serves as an electrical switching element.
This text is machine translated.
In the event of faults, the monitored system must be in a safe operating state.
Built-in thermostats work according to the principle of liquid expansion; a microswitch serves as an electrical switching element.
This text is machine translated.
