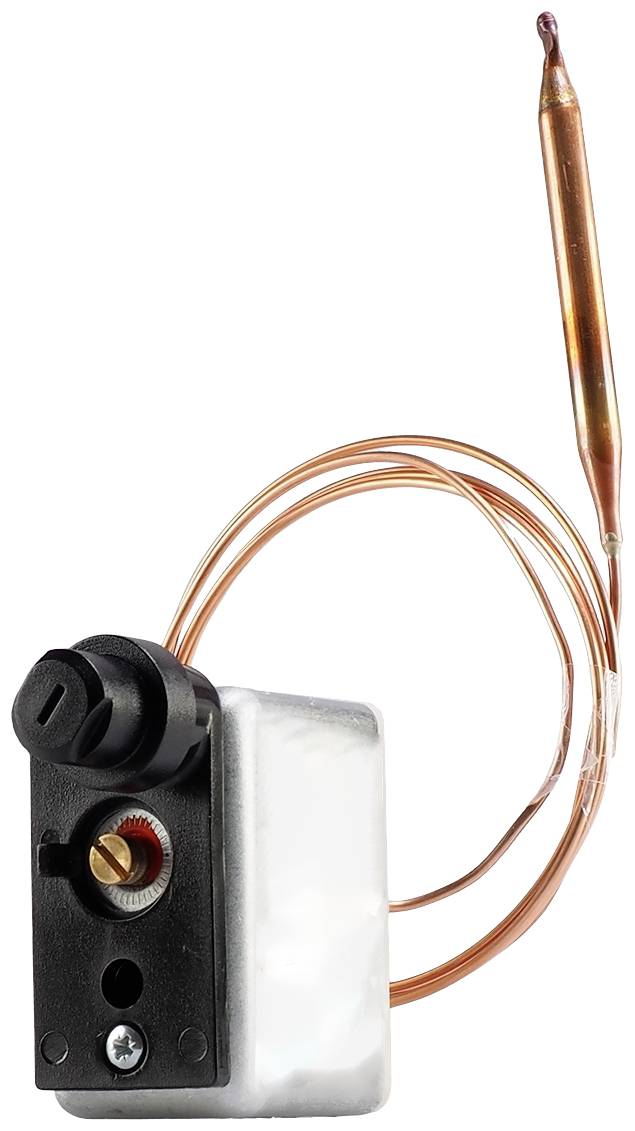

Jumo 60000753 Bang-bang Temperature limiter 110 °C (max.) 16 A relay

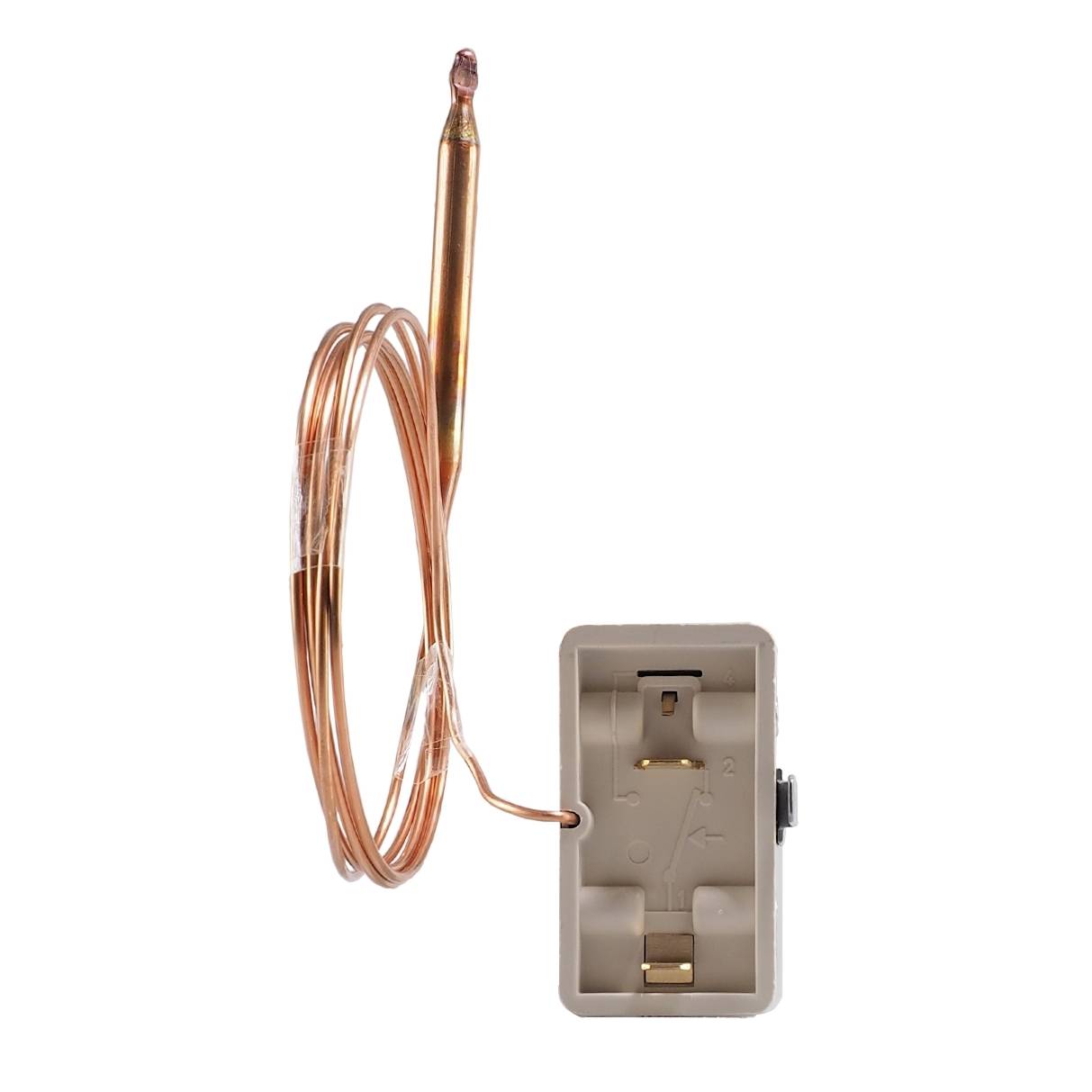

The galvanized steel plate housing makes the 1-pole mechanical thermostat very robust and can also be used in harsh conditions. The measuring system used works according to the principle of liquid expansion and can be used without any problem up to a maximum admissible sensor temperature of 110 °C. The smooth round sensor made of copper has a diameter of 6 mm with a probe length of approx. 84 mm. The remote control cable of the thermostat is also made of copper and can be laid flexibly under consideration of a bending radius of 5 mm. The maximum permissible ambient temperature at the switching head (protection class IP00) is 80 °C. Attachment of the switching head using a center fastening nut M10 x 1. The switch-off point was fixed in the factory. The safety temperature limiter has a high switching point accuracy of +0/-5 K. A decisive advantage is that no additional power supply is required for measuring the temperature. The electrical connection is made at the flat plugs (A 6.3 x 0.8 DIN 46244) of the switching set, which can directly switch a maximum permissible switching power of AC 230 Volt / 16 A. The thermostat has a release difference of approx. 10 K, after which the device can be unlocked simply by pressing a button. The temperature limiter has great flexibility in use and is used in both heating, air-conditioning and ventilation systems and in the plastics industry, apparatus and oven construction as well as for temperature monitoring in laboratories and climate chambers. The device is approved in accordance with DIN EN 14597 and pressure equipment guidelines and has UL and EAC approval.
