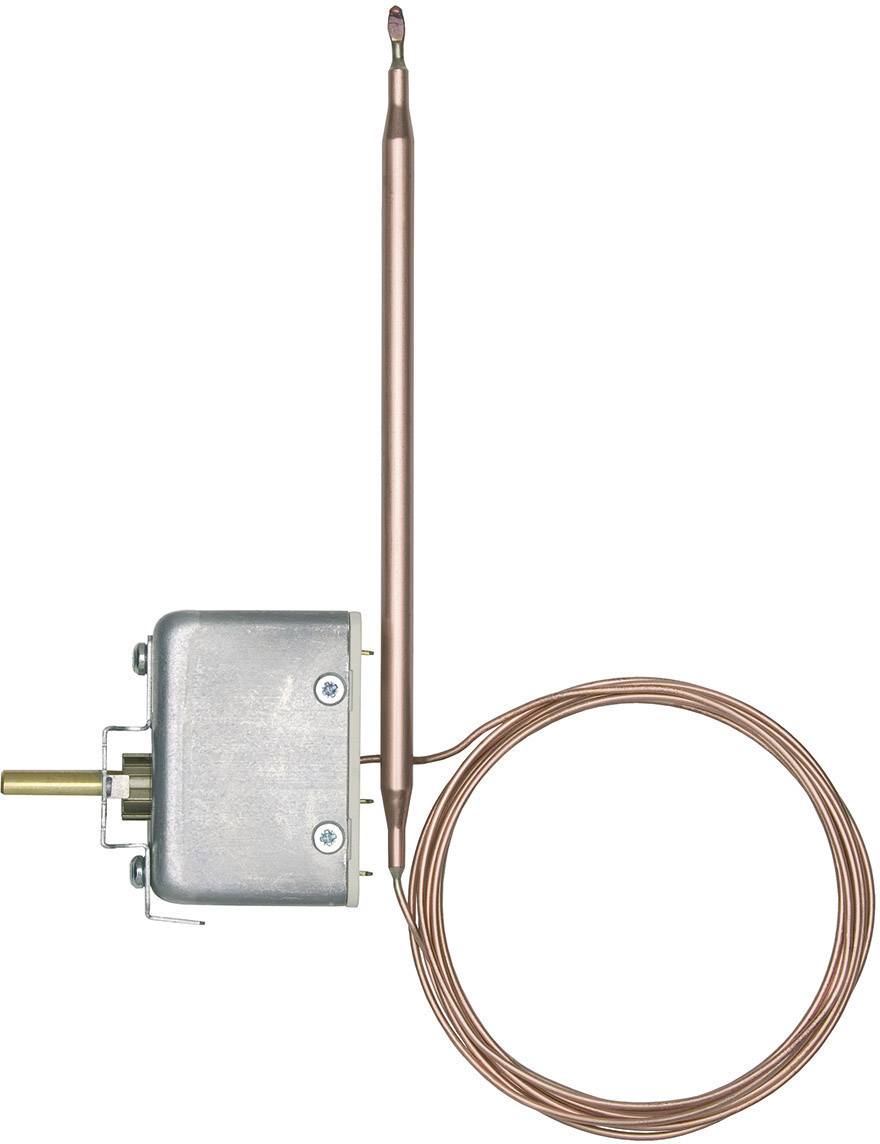

Jumo 60000921 Temperature controller 0 up to 150 °C 16 A relay
EAN:
Part number:
Item no:
Product type
Temperature controller
Operating voltage
230 V AC
Max. temperature reading
150 °C
Outputs (thermostats)
16 A relay
Mounting type
Recess-mount
Datasheet (PDF)
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.
Technical specifications
- Adjustment range 0150°C
- Switching difference: 2.5 %
- Transmission line length: 1000mm
- WST.remote line: CU (copper)
- Process connection: Smooth round sensor
- Sensor diameter 6 mm
- Material sensor: CU (copper)
- Switching voltage 230 volt
- Switching current: 16A cos=1
- Voltage type: AC
- DIN mark: Yes.
- Product type
Temperature controller
- Type
60000921
- Operating voltage
230 V AC
- Reading range
0 up to 150 °C
- Max. temperature reading
150 °C
- Min. temperature reading
0 °C
- Outputs (thermostats)
16 A relay
IP00
- Manufacturer part #
60000921
- Mounting type
Recess-mount
- Weight
0.1463 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1928140 Jumo 60000921 Temperature controller 0 up to 150 °C 16 A relay
User & Safety Instructions
User & Safety Instructions 1928140 Jumo 60000921 Temperature controller 0 up to 150 °C 16 A relay
Description
Thermostats control and monitor thermal processes The devices of the type series EM are available as temperature controller TR, temperature monitor TW, temperature limiter TB, safety temperature monitor STW (STB) and safety temperature limiter STB. The STB is offset
In the event of faults, the monitored system must be in a safe operating state.
Built-in thermostats work according to the principle of liquid expansion; a microswitch serves as an electrical switching element.
This text is machine translated.
In the event of faults, the monitored system must be in a safe operating state.
Built-in thermostats work according to the principle of liquid expansion; a microswitch serves as an electrical switching element.
This text is machine translated.
