Jumo 60003090 Setpoint selector set

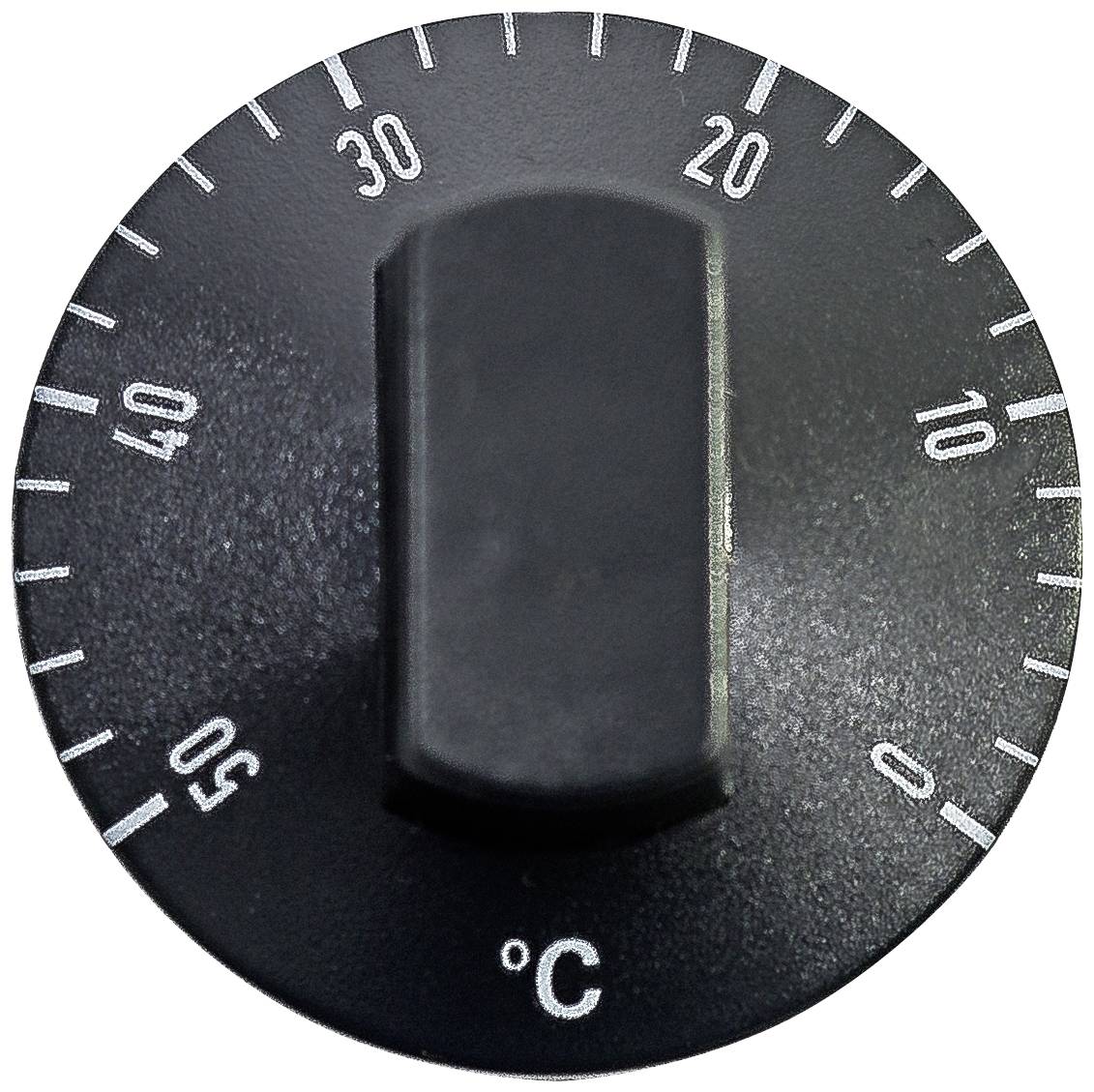

A black rotary dial which indicates temperatures from 0 to 50 degrees Celsius. The dial is set to 20 degrees.

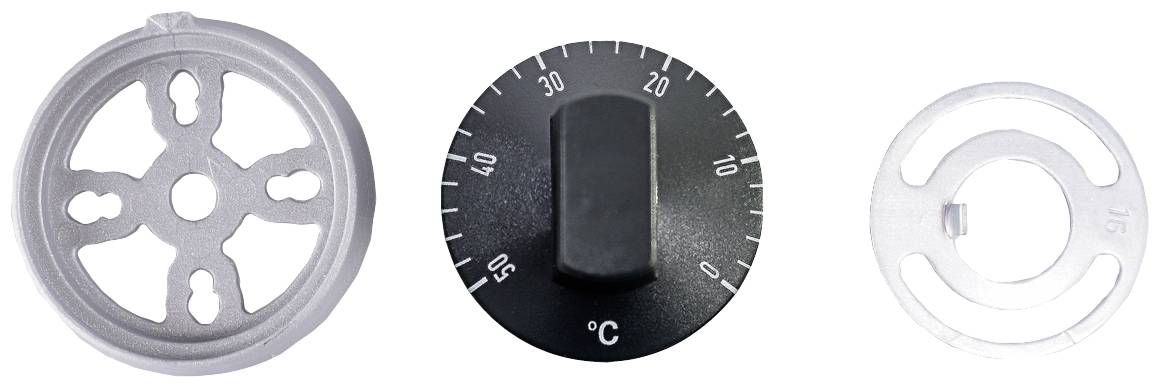

'Three different metal and plastic components: a round disc with slots, a rotary control with temperature markings, and another round component with cut-outs.'
1/2
Product type
Setpoint selector set
Mounting type
Recess-mount
Type
60003090
Manufacturer part #
60003090
UKCA
not relevant
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon 9 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 13.99 / piece)
€ 13.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Setpoint selector set

Type

60003090

Manufacturer part #

60003090

Mounting type

Recess-mount

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2756905 Jumo 60003090 Setpoint selector set

User & Safety Instructions

User & Safety Instructions 2756905 Jumo 60003090 Setpoint selector set

Description

The set-point value controller consists of a adjusting knob (slate gray RAL 7015, thermoplastic material), a faceplate (thermoplastic material) and two M4 x 8 screws in accordance with DIN 84 (nickel-plated brass). The distance between the holes is 28 mm. A disk is also included in the delivery which can be used to limit the set point. The scale has a maximum adjustment range of 250 degrees. The setpoint adjuster is used for temperature setting in thermostats which do not have a specific setting scale.

This text is machine translated.
