Jumo 701080/0-04-23-02/000 Thermostat Thermocouple (W x H) 76 mm x 36 mm
EAN:
Part number:
Item no:
Product type
Thermostat
Operating voltage
230 V AC
No. of relay outputs
2
Sensor type
Thermocouple
Mounting type
Recess-mount
Number
Total (€ 219.99 / piece)
€ 219.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Thermostat
- Type
701080/0-04-23-02/000
- Operating voltage
230 V AC
- No. of relay outputs
2
- Dim
(W x H) 76 mm x 36 mm
- Height
36 mm
- Width
76 mm
- Sensor type
Thermocouple
- Manufacturer part #
00771045
- Mounting type
Recess-mount
- Digital inputs
1
- Weight
154 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2973166 Jumo 701080/0-04-23-02/000 Thermostat Thermocouple (W x H) 76 mm x 36 mm
Description

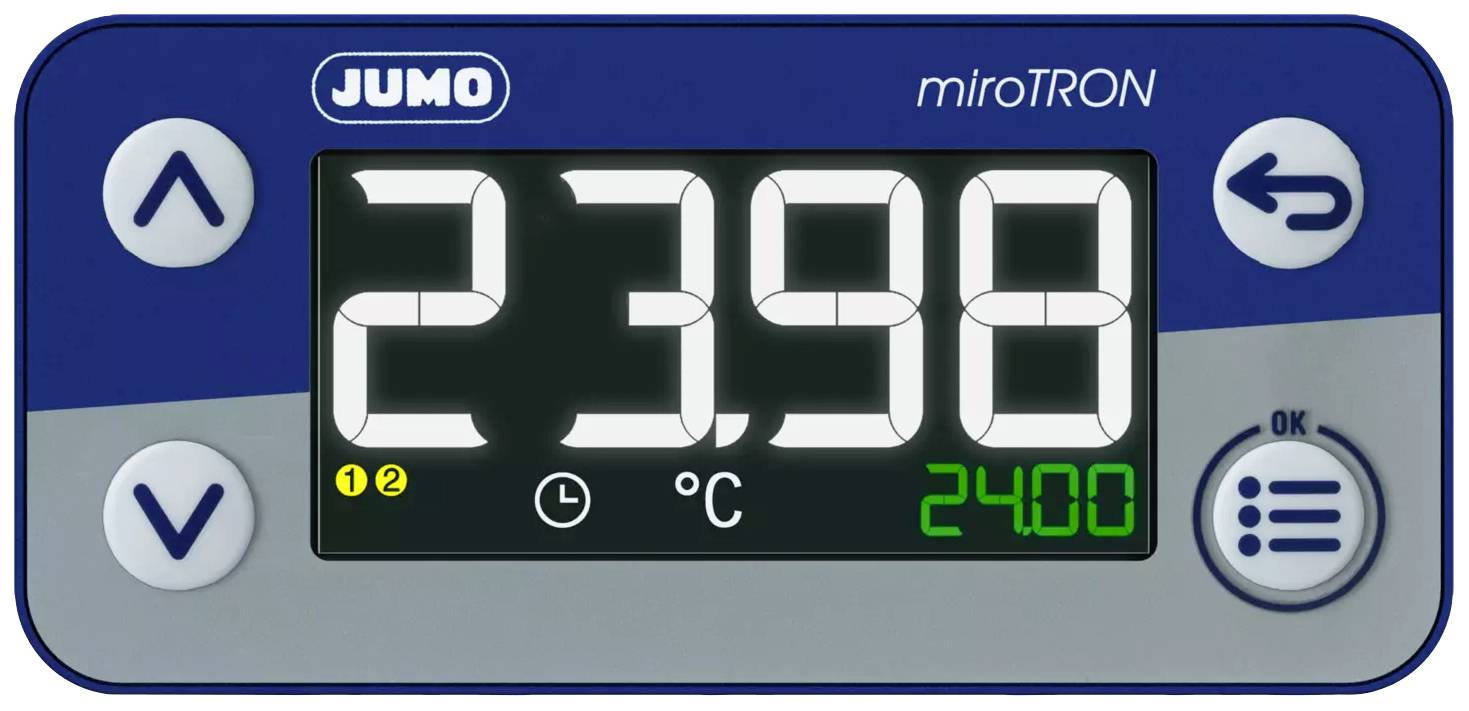

The electronic thermostat can be used as a heating or cooling thermostat and captures the process size via a thermocouple. The device is also fitted with 1 digital input as well as 2 relays or 1 relays and 1 digital output. The device is characterized by a simple, clearly structured operation with text supported in the national languages German, English, French and Spanish. Process values, texts and parameters are displayed in two 18-segment LCD displays. Additional display elements inform about the switching positions of the outputs, the timer status and the temperature unit. Print terminals with push-in- technology enables a fast electrical installation. Operation, parameterization and configuration is performed by means of a membrane keypad with four keys. With the help of the setup program the devices can be configured comfortably with a PC. During configuration via the USB interface no separate power supply is required (USB-powered).
This text is machine translated.
This text is machine translated.
