Kathrein ZAS 61 SAT wall mount Projection distance: 39 cm
EAN:
Part number:
Item no:
Number
Total (€ 39.49 / piece)
€ 39.49
plus VAT.
Only 4 Piece(s) available

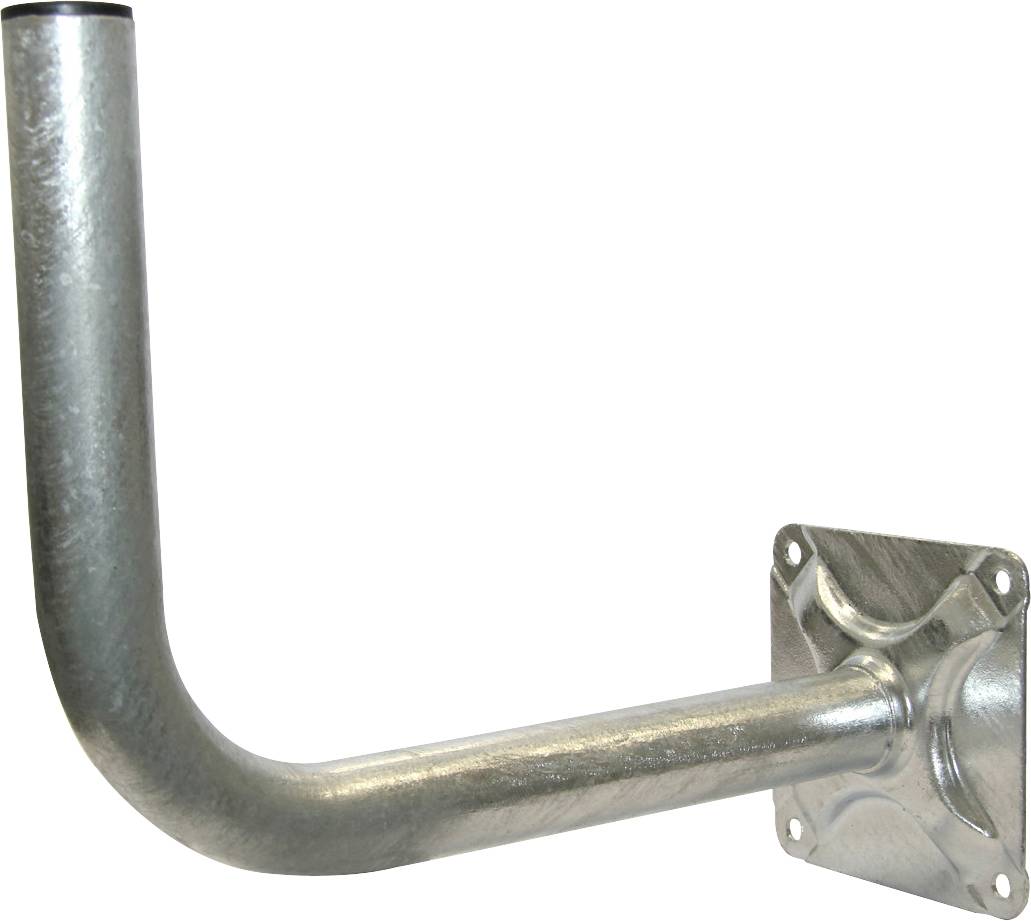

ZAS 61 wall bracket long
Highlights & Details
- Long design and wall distance: The ZAS 61 is a long wall mount with a generous wall distance of 390 mm (39 cm).
- High load capacity: The bracket can withstand maximum tensile/compressive forces at mounting points up to 1000 N (when used with CAS 80). These load carrying capacities are valid at a back pressure of 800 N/m² according to EN 60728-11.
- Material and long life: The holder is made of robust steel and hot-dip galvanized, WAS ensures high resistance.
- Compatibility and adjustability: It is suitable for the Kathrein SAT antennas CAS 60 and CAS 80xx. The setting range for the azimuth is ± 90°
Technical specifications
- Product type
SAT wall mount
- Material
Steel
- Fitting site
Wall
- Projection distance
39 cm
- Height
383 mm
- (Ø)
45 mm
- Weight
2 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3479073 Kathrein ZAS 61 SAT wall mount Projection distance: 39 cm
Description
Kathrein ZAS 61: The long holder for maximum distance and durability!
The ZAS 61 is the long wall bracket for your Kathrein satellite antennas of the series CAS 60 and CAS 80xx. Made of hot-dip galvanized steel, this holder offers not only excellent corrosion protection, but also impressive stability. With a wall distance of 39 cm it enables the assembly even under difficult structural conditions. Trust the extreme load capacity of up to 1000 N tensile/pressure (for CAS 80) – even with Hohem compressed pressure of 800 N/m²
This text is machine translated.
