Kendrion Holding magnet 1400 N 24 V DC 19 W HT-D70-F-24V DC 100 ED

A cylindrical electromagnet with a metal casing and attached cable, used in applications for securing or holding objects.

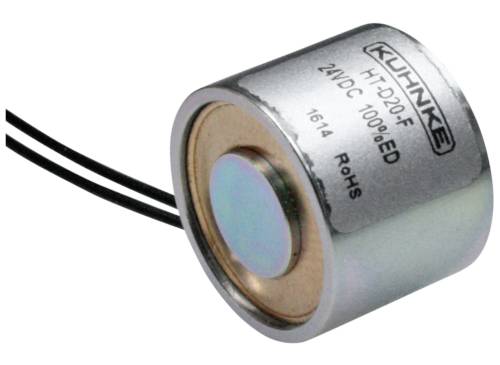

A cylindrical electromagnet bearing the inscription 'KUHNKE', model 'HT-' and '24VDC', with two protruding electrical cables.

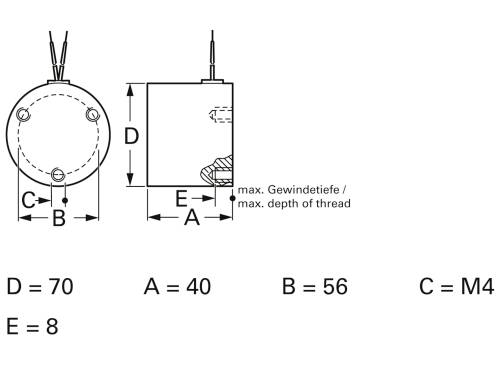

Technical drawing of a cylindrical object with dimensions: D=70, A=40, B=56, E=8, thread depth marked. C=M4.
1/3
Product type
Holding magnet
Connection
Braid
Nominal voltage
24 V DC
Power
19 W
Holding force
1400 N
EAN:
Part number:
Item no:
Dispatches on Tue 24 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 224.99 / piece)
€ 224.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

MAGNETIC CLAMP HT-D 70-F-24VDC 100% ED, 1400 N, 19 W,

Our service for you

Technical specifications

  • Connection: Wires
  • Diameter 70 mm
  • Power-on duration: 100 % ED
  • Power: 19 W
  • Adhesive force 1400 N
  • Nominal voltage (DC) 24 V
Product type

Holding magnet

Type

HT-D70-F-24V DC 100 ED

Enclosure type

Cylindrical

Connection

Braid

Cable length

200 mm

Nominal voltage

24 V DC

19 W

Holding force

1400 N

Holding force

1400 N

Temperature limit

130 °C

Temperature limit (max.)

130 °C

Weight

0.9127 kg

Time interval setting

100 %

Width

70 mm

(Ø)

70 mm

Dim

(Ø) 70 mm

RoHS-compliant

Yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3168378 Kendrion Holding magnet 1400 N 24 V DC 19 W HT-D70-F-24V DC 100 ED

Description

Adhesive magnets Type Kuhnke HT-D. Cylindrical design; rated voltage 24 VDC, permitted relative duty cycle (ED): 100 %, connection: 200 mm long lead, insulation class: B, temperature limit: +130 °C, test voltage: 800 Veff. Technical features (type, traction, nominal power, weight): HT-D 70-F-24Vdc 100% ED, 1400 N, 19 W, 800 g

This text is machine translated.
