Kendrion Holding magnet 400 N 24 V DC 6 W HT-D40-F-24V DC 100 ED

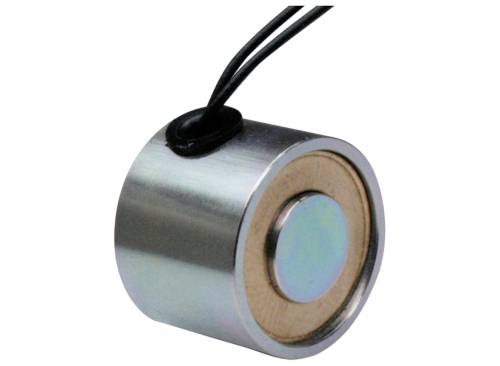

A cylindrical electromagnet with two cables. The magnet has a metallic surface with a central, circular core.
A cylindrical, silver electromagnetic coil with two black cables, with the specifications '24VDC, 100% ED' printed on it.
'Technical drawing of a circular mounting bracket with a central fixing hole. Dimensions: D=40, A=27, C=M5, E=6. Maximum thread depth indicated.'
1/3
Product type
Holding magnet
Connection
Braid
Nominal voltage
24 V DC
Power
6 W
Holding force
400 N
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 164.99 / piece)
€ 164.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

MAGNETIC CLAMP HT-D 40-F-24VDC 100% ED, 400 N, 6.0 W,

Our service for you

Technical specifications

  • Connection: Wires
  • Diameter 40 mm
  • Power-on duration: 100 % ED
  • Output: 6 W
  • Adhesive force 400 N
  • Nominal voltage (DC) 24 V
Product type

Holding magnet

Type

HT-D40-F-24V DC 100 ED

Enclosure type

Cylindrical

Connection

Braid

Cable length

200 mm

Nominal voltage

24 V DC

6 W

Holding force

400 N

Temperature limit

130 °C

Temperature limit (max.)

130 °C

Weight

0.21 kg

Time interval setting

100 %

(Ø)

40 mm

Dim

(Ø) 40 mm

RoHS-compliant

Yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3168410 Kendrion Holding magnet 400 N 24 V DC 6 W HT-D40-F-24V DC 100 ED

Description

Adhesive magnets Type Kuhnke HT-D. Cylindrical design; rated voltage 24 VDC, permitted relative duty cycle (ED): 100 %, connection: 200 mm long lead, insulation class: B, temperature limit: +130 °C, test voltage: 800 Veff. Technical features (type, traction, nominal power, weight): HT-D 40-F-24Vdc 100% ED, 400 N, 6.0 W, 230 g
