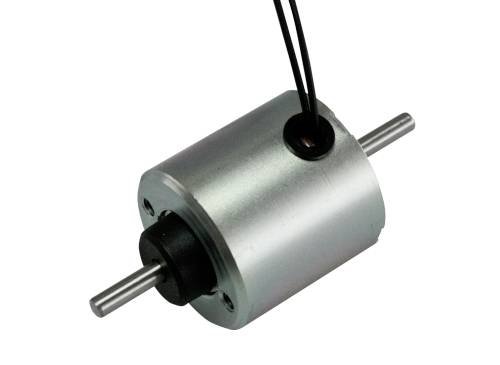

Kendrion Rotary magnet 24 V DC 3.8 W D 29-BOR-F-DS9420-24V DC 100 ED
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 184.87 / piece)
€ 184.87
plus VAT.
Technical specifications
- Connection: Wire
- Starting torque 0.06 Ncm
- Rotation angle: 95°;
- Switch-on time 100%
- Power: 3.8 W
- End torque 0.35 Ncm
- Nominal voltage (DC) 24 V
- Return spring: Yes
- Time constant: 6 ms
- Type
D 29-BOR-F-DS9420-24V DC 100 ED
- Enclosure type
Cylindrical
- Connection
Braid
- Cable length
200 mm
- Nominal voltage
24 V DC
3.8 W
- Temperature limit
130 °C
- Temperature limit (max.)
130 °C
- Weight
0.08591 kg
- Time interval setting
100 %
- RoHS-compliant
Yes
- Product type
Rotary magnet
Documents & Downloads
Datasheet
Datasheet 3168374 Kendrion Rotary magnet 24 V DC 3.8 W D 29-BOR-F-DS9420-24V DC 100 ED
User & Safety Instructions
User & Safety Instructions 3168374 Kendrion Rotary magnet 24 V DC 3.8 W D 29-BOR-F-DS9420-24V DC 100 ED
Description
Rotating magnet type Kuhnke D 2. Standard design, with shaft end on both sides, soft adjustable return spring at the right rotating shaft end; built: Cylindrical, rotational angle: 160° or 95°, rated voltage: 24 VDC, rated current: 45 mA, rated resistance: 151 Ohm, permitted relative switch-on time (ED): 6.0 %, connections: 1500 mm long strands with free ends, time constant: Approx. 2.0 to 100 ms, test voltage: 200 Veff., insulation class: B, temperature limit +130 °C, weight: approx 75 g. Technical features (type, angle of rotation (Dw), initial torque (ad), end torque (Ed)): D 29-BOR-F-DS9420-24VDC, Dw 95°, ad 0.06, Ed 0.35 Ncm
