Klingspor 336223 DT 350 U Extra Diamond cutting disc Diameter 300 mm Bore diameter 20 mm Construction materials, Concret

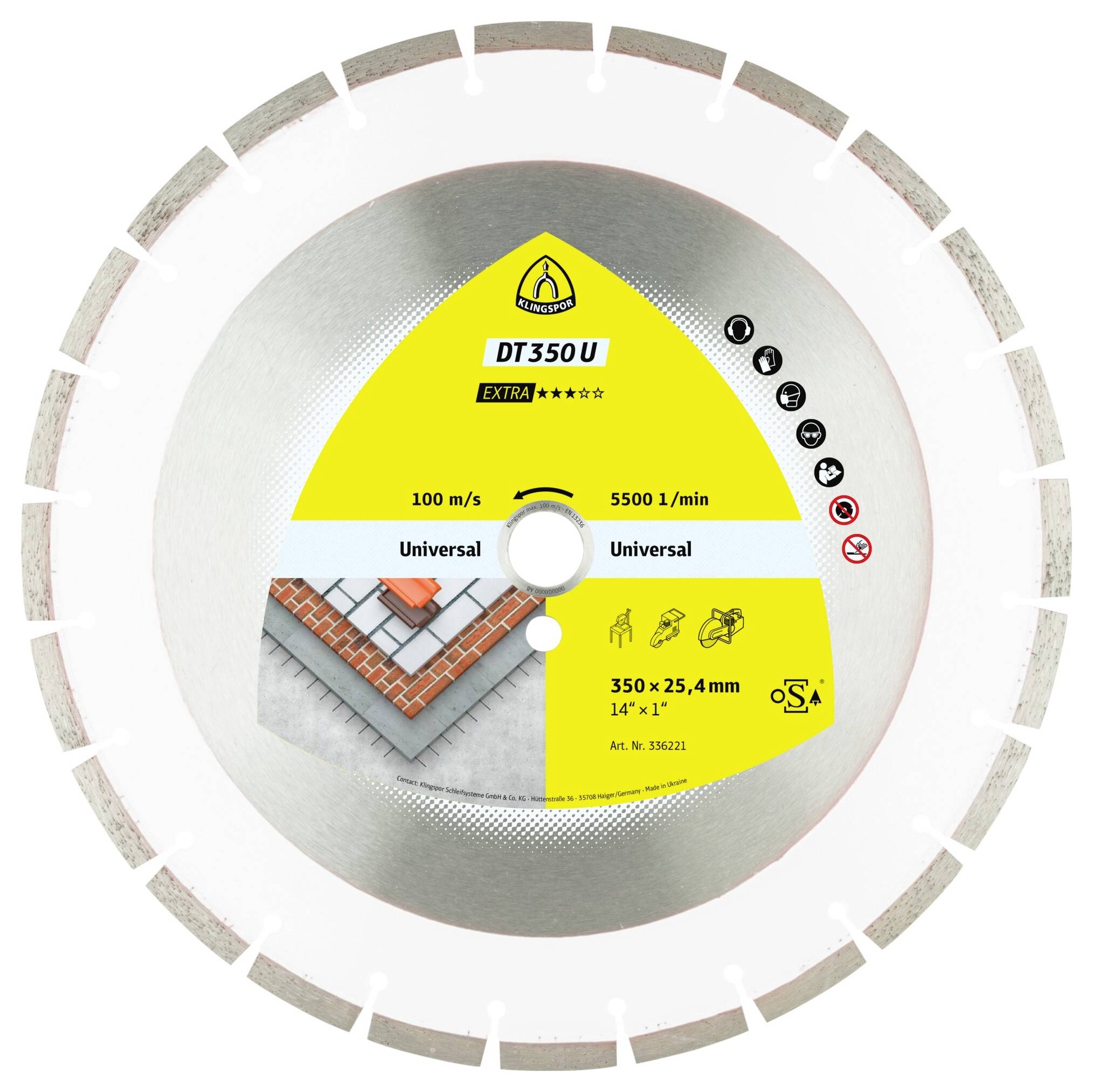

A circular saw blade labeled 'DT350U EXTRA' with specifications: 100 m/s, 5500 1/min, 350 x 25.4 mm, for cutting brick materials.

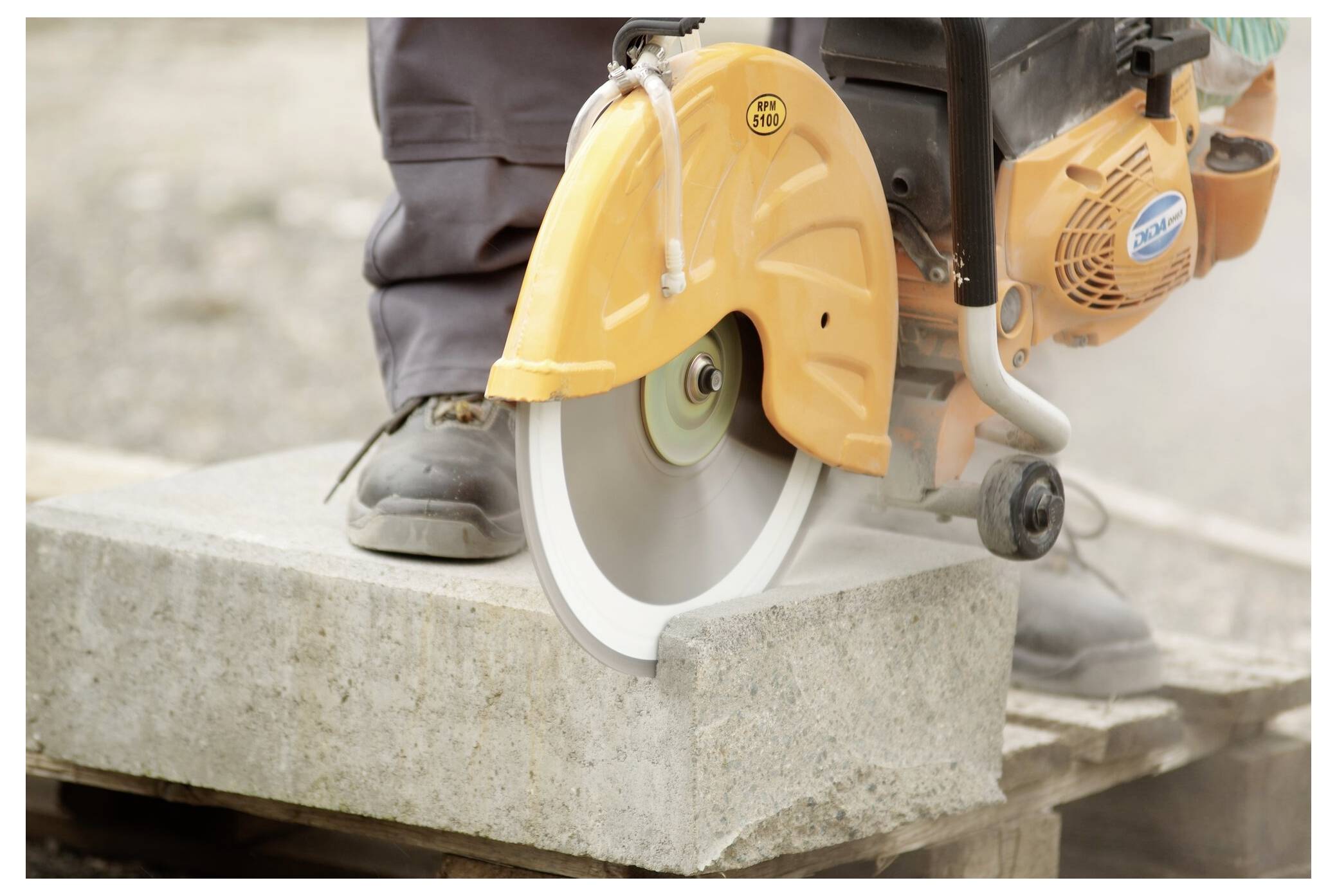

A person uses a circular saw with an orange shield to cut a large concrete block, generating dust.
1/2
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 83.99 / piece)
€ 83.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

DT 350 U diamond cutting discs, 300 x 2.8 x 20 mm 21 segments 40 x 2.8 x 10 mm, standard toothing

  • Universal product with laser-welded standard segments for general construction site materials
  • Light, low vibration and fast cutting with very good durability
  • Optimum value for money
  • A line drawing shows symbols of a car tire, a water drop with a plus, and another water drop with a minus, indicating wet and dry conditions.
  • 'Eye with two water droplets; one droplet is crossed out, symbolizing no water or tear production.'
  • A circular saw blade is shown cutting through material, indicated by a jagged line and a starburst at the cutting point.
  • Illustration of a circular saw with a protective guard and handle, typically used for cutting wood or metal in construction.
  • An isometric illustration of a table saw with a large circular blade on a sturdy table, used for cutting wood or materials.
  • '10 kW' icon above a simplified illustration of a small construction vehicle.

Technical specifications

  • Usage type: Petrol separator, table saw, joint cutter
  • Aggressivity: High
  • Design: Laser welded
  • Segmentation: Standard
  • Service life: High
  • Top speed 100 m/s.
  • Maximum speed 6400 rpm
  • Machine type: Engine disconnecting grinder
  • Edge design: Standard teeth
  • Number of segments: 21 pcs
  • Segment width 2.8 mm
  • Segment height 10 mm
  • Segment length 40 mm
Product type

Diamond cutting disc

Material suitability

Construction materials

Concrete (multi-purpose)

Bore Ø

20 mm

Dim

(Ø) 300 mm

(Ø)

300 mm

Rotational speed (max.)

6400 U/min

Features

Diamond

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3530197 Klingspor 336223 DT 350 U Extra Diamond cutting disc Diameter 300 mm Bore diameter 20 mm Construction materials, Concret

User & Safety Instructions

User & Safety Instructions 3530197 Klingspor 336223 DT 350 U Extra Diamond cutting disc Diameter 300 mm Bore diameter 20 mm Construction materials, Concret

Information

Information 3530197 Klingspor 336223 DT 350 U Extra Diamond cutting disc Diameter 300 mm Bore diameter 20 mm Construction materials, Concret

Description

The laser-welded universal disc DT 350 U extra is Ideal for quick cutting of concrete and other construction materials. The multi-talent offers Klingspor brand quality at an especially attractive price and in its class the best performance.
