Klingspor DK 612 B Supra 325765 Drill bit 171 mm 1 pc(s)

EAN:
Part number:
Item no:

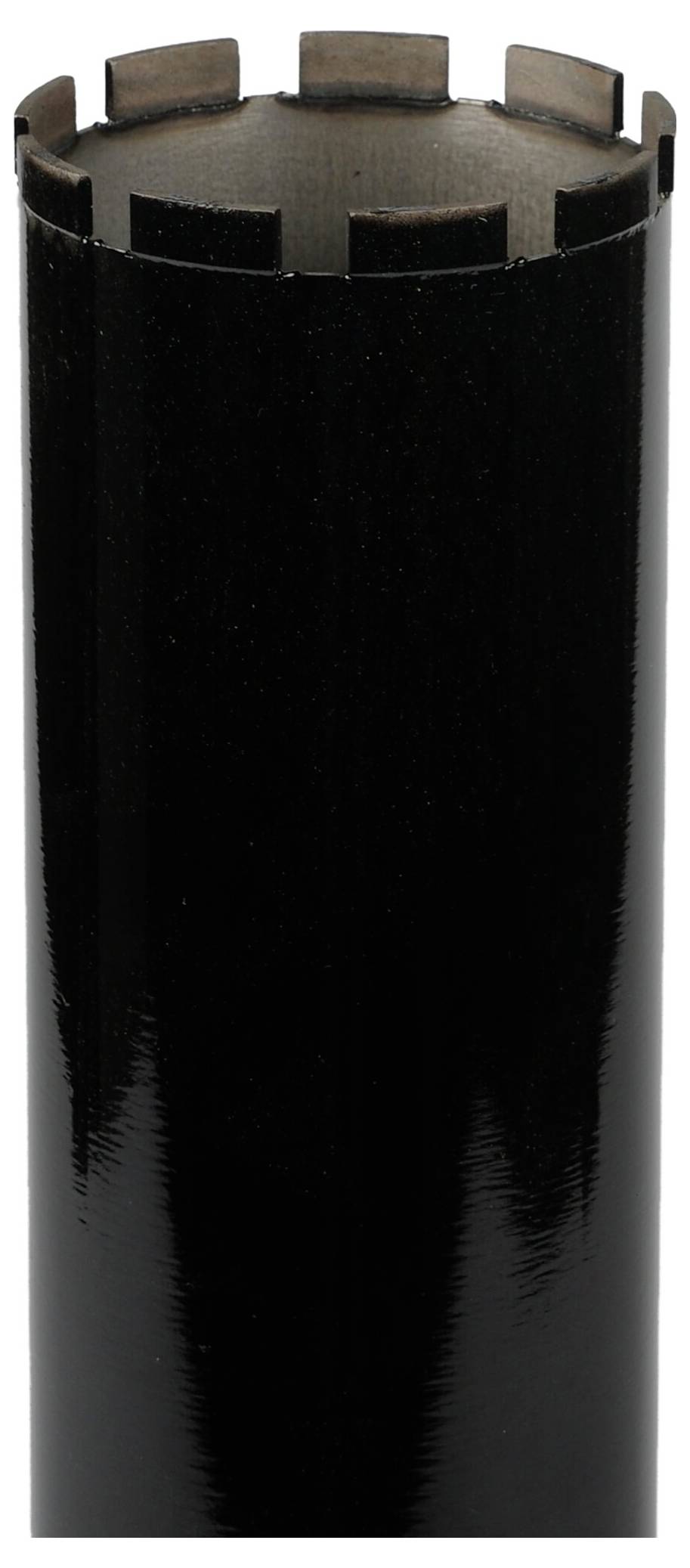

A black cylindrical object with a notched top edge, resembling a pipe or sleeve, set against a plain background.

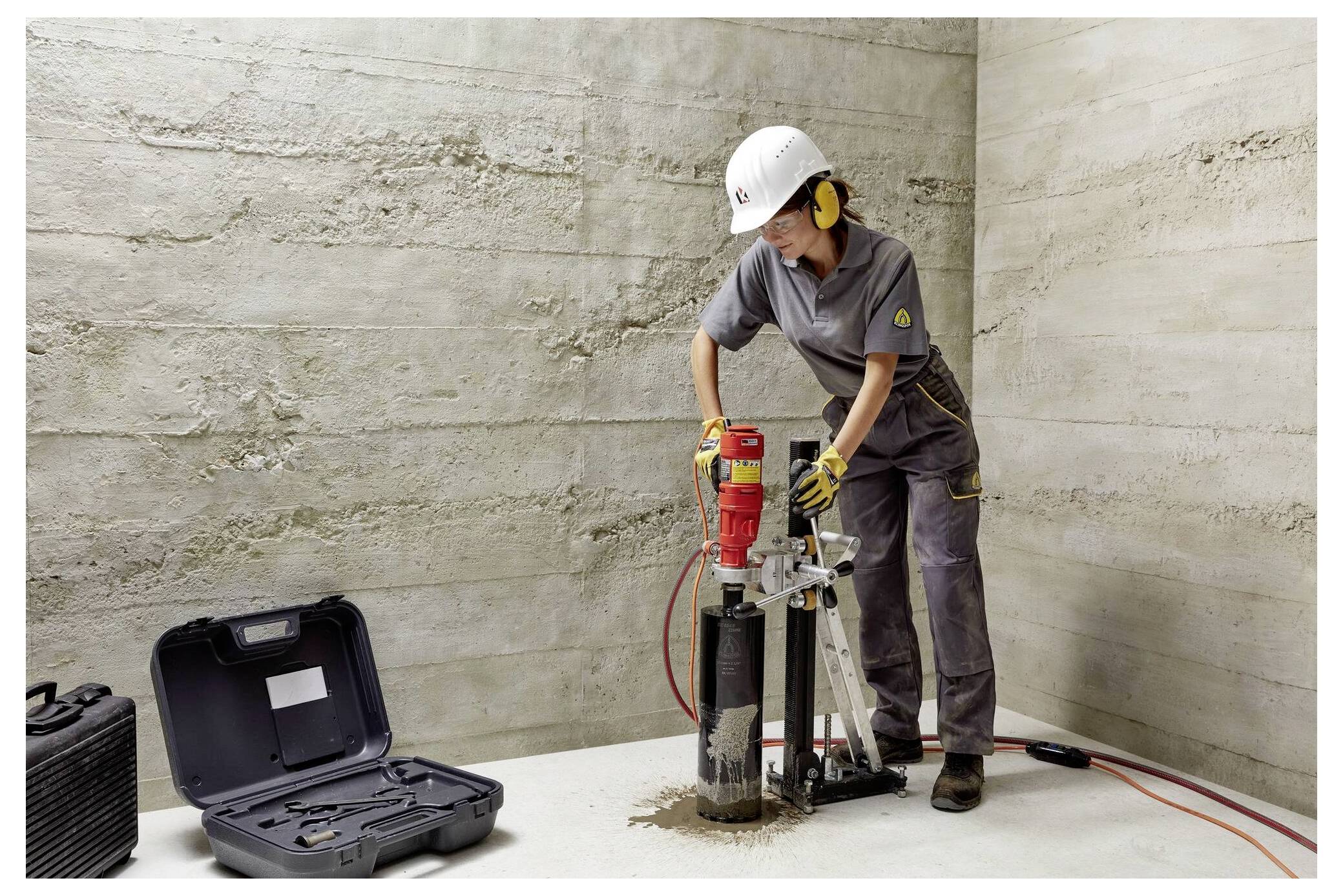

A worker in safety gear uses a core drilling machine on a concrete floor. Equipment cases are nearby. The setting suggests a construction site.
1/2
Image similar
Product type
Drill bit
Drill hole Ø
171 mm
Material suitability
Concrete
Working length
300 mm
Tool holder
1/2" (12.5 mm)
Datasheet (PDF)
Dispatches on Fri 30 Oct
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 459.00 / piece)
€ 459.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

DK 612 B Drilling crowns, 171 x 2.5 x 300 mm 12 segments 24 x 2.5 x 10 mm, standard teeth thread 1/2"

  • Core bit for universal use
  • High cutting speed and service life
  • Roof segments for fast cutting
  • Can be used on electric drills
  • For replacement segments see DE 600 B
  • A symbol of a water droplet falling from a faucet onto a bolt, inside a circle, possibly indicating corrosion or wear due to water.
  • Water faucet icon with droplet falling onto a cogwheel.
  • 'A saw blade with a crack and symbolic stress fracture indicating damage.'

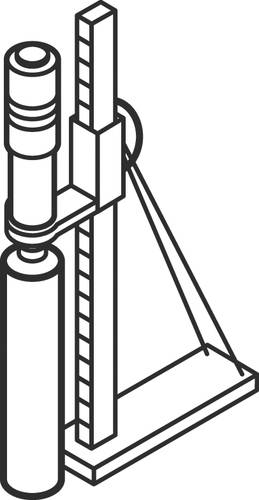

  • A side view illustration of a bench drill press, showcasing its main components including the drill head, vertical column, and base platform.

Technical specifications

  • Usage: Drilling stand
  • Aggressivity: Very high
  • Design: Laser welded
  • Mounting: Thread 1/2"
  • Edge design: Standard teeth
  • Hole diameter 12.7 mm
  • Diameter 171 mm
  • Number of segments: 12 pcs
  • Segment width 2.5 mm
  • Segment height 10 mm
  • Segment length 24 mm
  • Usable length 300 mm
Product type

Drill bit

Drill hole Ø

171 mm

Material suitability

Concrete

Working length

300 mm

Total length

300 mm

Tool holder

1/2" (12.5 mm)

Documents & Downloads

Datasheet

Datasheet 3530349 Klingspor DK 612 B Supra 325765 Drill bit 171 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3530349 Klingspor DK 612 B Supra 325765 Drill bit 171 mm 1 pc(s)

Information

Information 3530349 Klingspor DK 612 B Supra 325765 Drill bit 171 mm 1 pc(s)

Description

The laser-welded DK 612 B Supra drill crown is Ideal for fast drilling of all types of concrete. The versatile professional drill crown for daily use offers high aggressiveness and very long shelf life.
