Klingspor DK 654 B Supra 325774 Drill bit 72 mm 1 pc(s)

EAN:
Part number:
Item no:

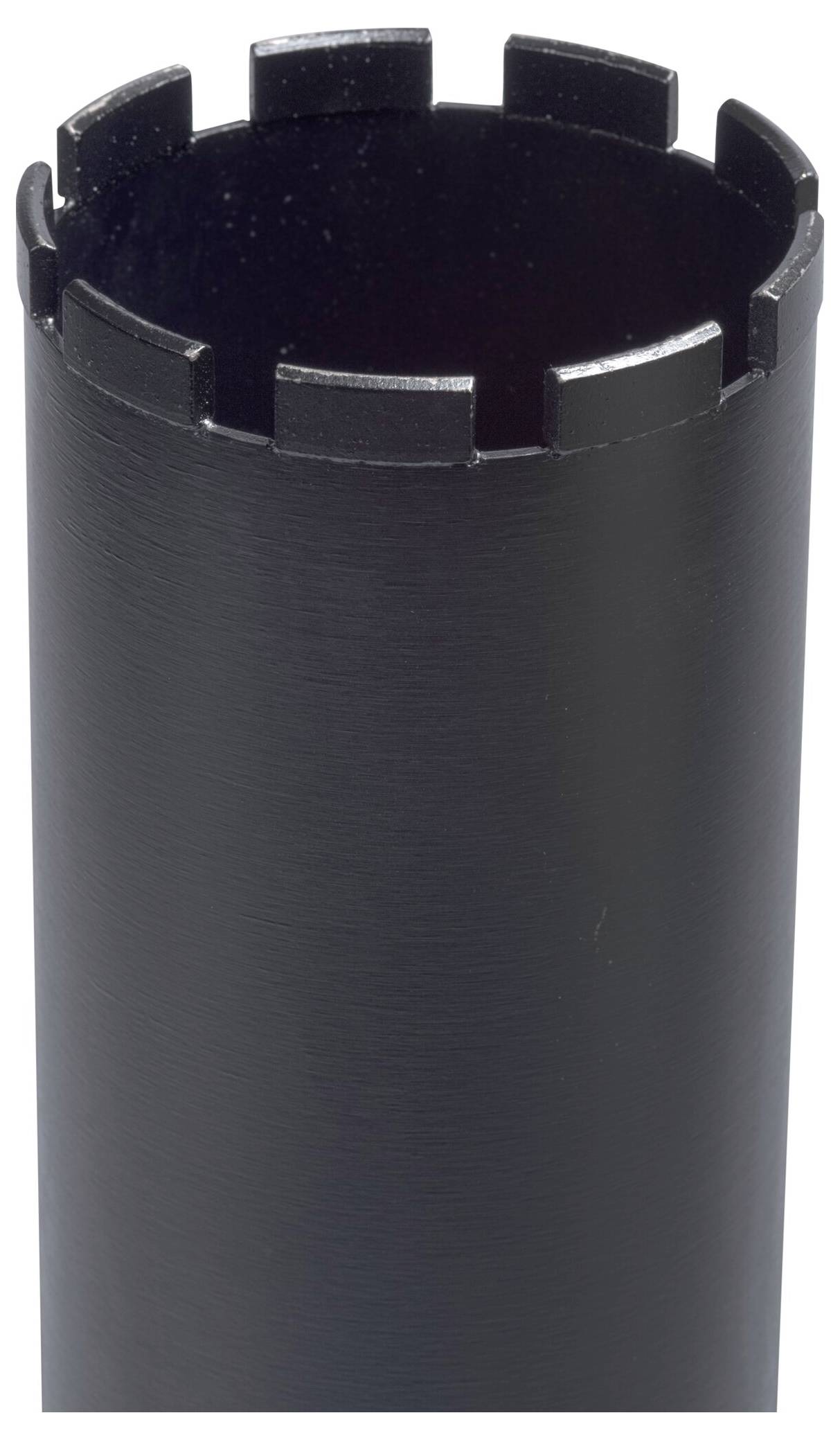

A cylindrical black core drill bit with a ridged top edge used for cutting through hard materials like concrete or stone.

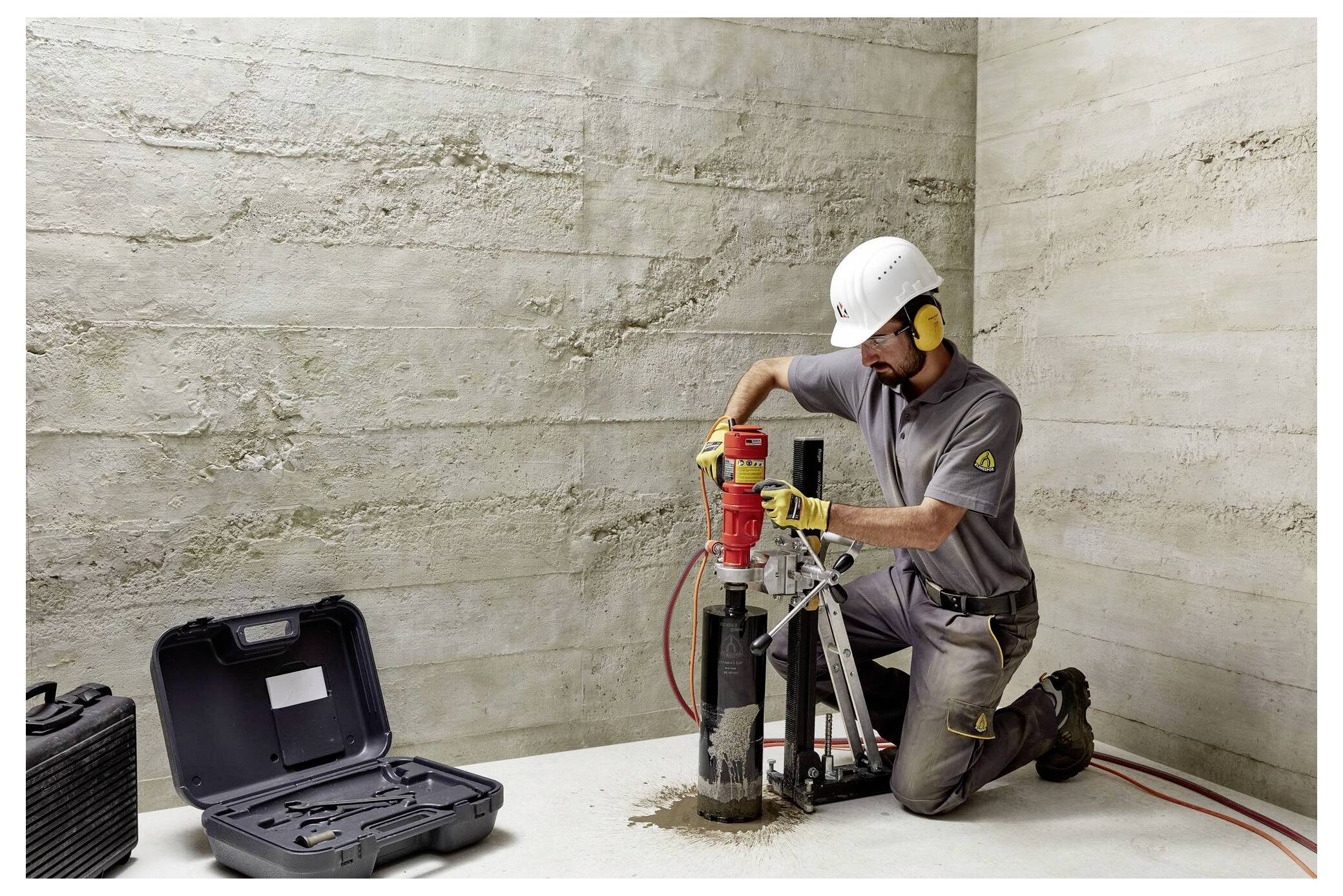

A construction worker in safety gear uses a core drill on a concrete floor in an industrial setting. Equipment cases are nearby.
1/2
Image similar
Product type
Drill bit
Drill hole Ø
72 mm
Material suitability
Concrete
Working length
450 mm
Tool holder
1/4" (6.3 mm)
Datasheet (PDF)
Dispatches on Fri 30 Oct
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 204.99 / piece)
€ 204.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

DK 654 B Drilling crowns, 72 x 3.5 x 450 mm 6 segments 24 x 3.5 x 11 mm, standard teeth thread 1 1/4"

  • Core bit for universal use
  • Very fast cut
  • Long tool life
  • Roof segments as DK 612 B
  • Can be used on electrical and hydraulic machines
  • 'Water droplet falling from a faucet onto a textured surface within a circular frame, symbolizing resistance to moisture or corrosion.'
  • 'Dripping tap over gear', illustrating corrosion risk from water.
  • 'Saw blade with laser beam cutting' symbol inside a circle indicates cutting or laser precision tool.
  • 'Line art of a vertical mechanical press with a lever and base, used for pressing or compressing materials in industrial applications.'

Technical specifications

  • Usage: Drilling stand
  • Aggressivity: Very high
  • Design: Laser welded
  • Mounting: Thread 1 1/4"
  • Edge design: Standard teeth
  • Hole diameter 31.75 mm
  • Diameter 72 mm
  • Number of segments: 6 pcs
  • Segment width 3.5 mm
  • Segment height 11 mm
  • Segment length 24 mm
  • Usable length 450 mm
Product type

Drill bit

Drill hole Ø

72 mm

Material suitability

Concrete

Working length

450 mm

Tool holder

1/4" (6.3 mm)

Documents & Downloads

Datasheet

Datasheet 3530376 Klingspor DK 654 B Supra 325774 Drill bit 72 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3530376 Klingspor DK 654 B Supra 325774 Drill bit 72 mm 1 pc(s)

Information

Information 3530376 Klingspor DK 654 B Supra 325774 Drill bit 72 mm 1 pc(s)

Description

The laser-welded DK 654 B Supra drill crown is Ideal for rapid drilling of all types of concrete. The versatile professional drill crown offers high aggressiveness and very long operating life thanks to 11 mm high roof segments.
