Klingspor DK 654 B Supra 325784 Drill bit 162 mm 1 pc(s)

EAN:
Part number:
Item no:

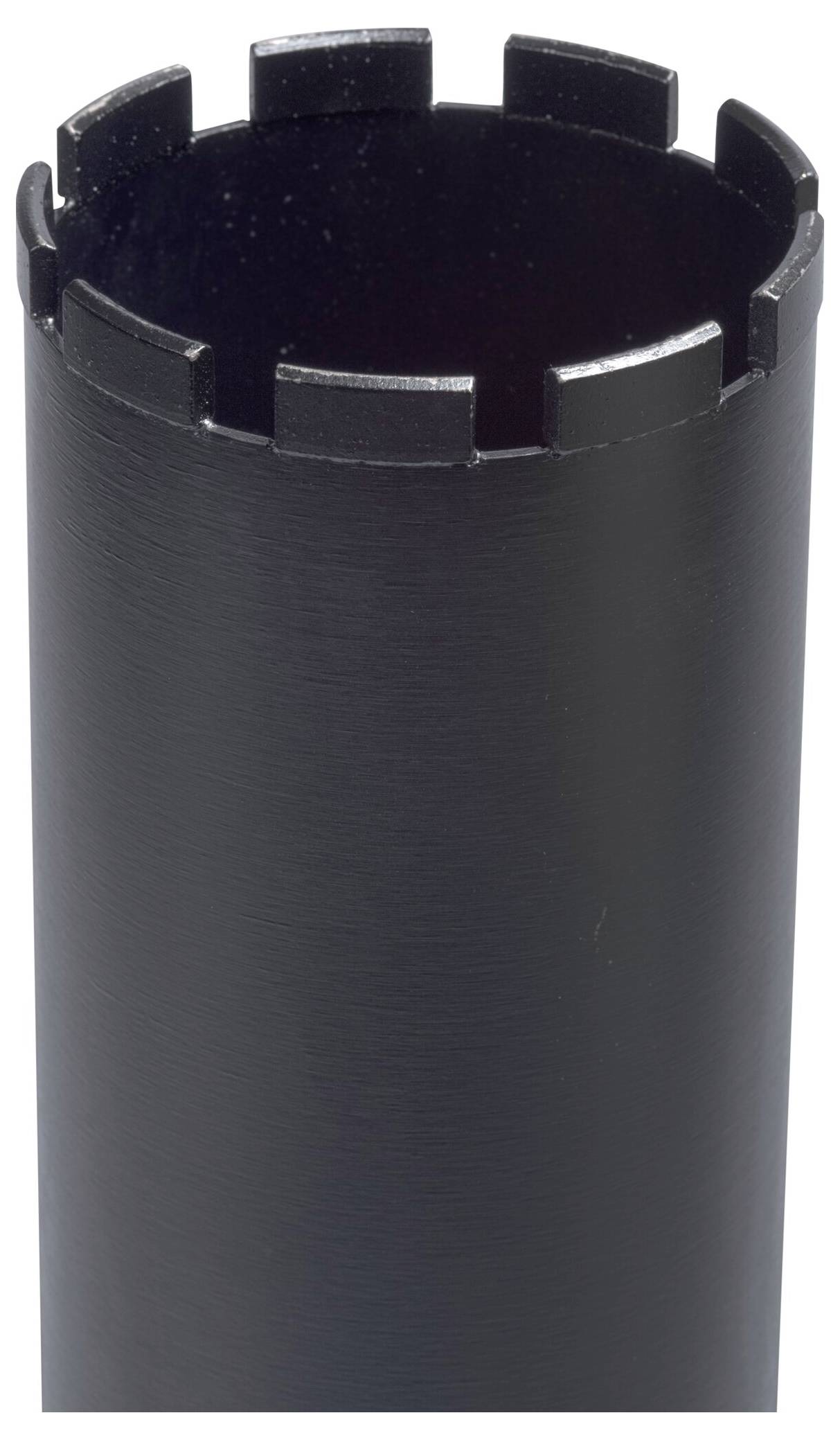

A black cylindrical metal core drill bit with a segmented cutting edge designed for drilling through hard materials like concrete or stone.

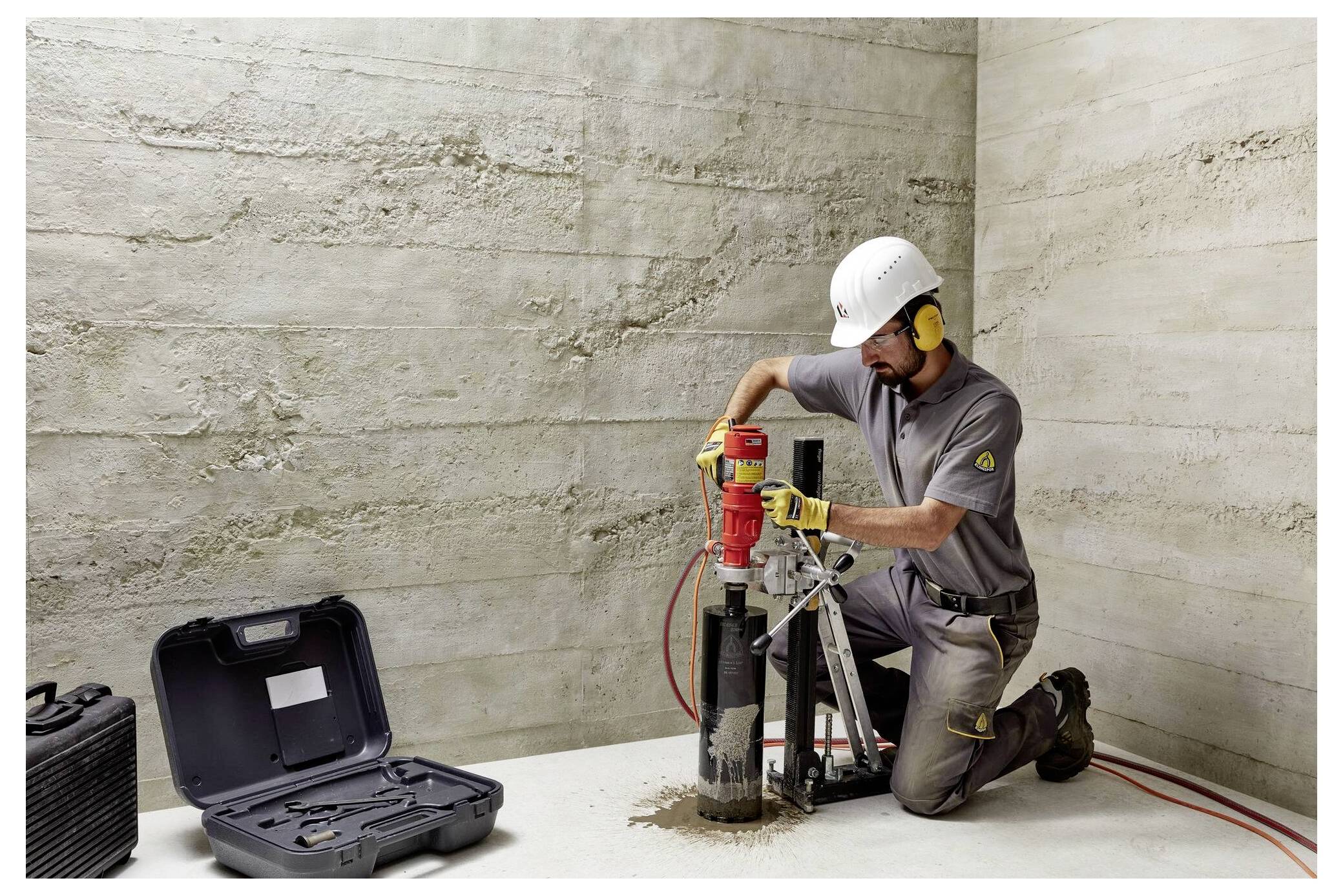

Worker in protective gear using a power drill on a concrete floor in a minimalist construction site. Open tool case nearby.
1/2
Image similar
Product type
Drill bit
Drill hole Ø
162 mm
Material suitability
Concrete
Working length
450 mm
Tool holder
1/4" (6.3 mm)
Datasheet (PDF)
Dispatches on Mon 2 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 535.00 / piece)
€ 535.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

DK 654 B Drilling crowns, 162 x 4 x 450 mm 13 segments 24 x 4 x 11 mm, standard teeth thread 1 1/4"

  • Core bit for universal use
  • Very fast cut
  • Long tool life
  • Roof segments as DK 612 B
  • Can be used on electrical and hydraulic machines
  • A droplet falling from a faucet onto a building block gear, symbolizing water's impact on mechanical processes.
  • A black water faucet dripping onto a castle wall icon, symbolizing the effects of water damage or erosion on structures.
  • 'A saw blade being cut by a laser beam, shown in a circular frame, possibly illustrating precision cutting or manufacturing process.'
  • A black and white line drawing of a standing manual drill press, showing its vertical spindle, handle, and base.

Technical specifications

  • Usage: Drilling stand
  • Aggressivity: Very high
  • Design: Laser welded
  • Mounting: Thread 1 1/4"
  • Edge design: Standard teeth
  • Hole diameter 31.75 mm
  • Diameter 162 mm
  • Number of segments: 13 pcs
  • Segment width 4 mm
  • Segment height 11 mm
  • Segment length 24 mm
  • Usable length 450 mm
Product type

Drill bit

Drill hole Ø

162 mm

Material suitability

Concrete

Working length

450 mm

Length

450 mm

Tool holder

1/4" (6.3 mm)

Documents & Downloads

Datasheet

Datasheet 3530364 Klingspor DK 654 B Supra 325784 Drill bit 162 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3530364 Klingspor DK 654 B Supra 325784 Drill bit 162 mm 1 pc(s)

Information

Information 3530364 Klingspor DK 654 B Supra 325784 Drill bit 162 mm 1 pc(s)

Description

The laser-welded DK 654 B Supra drill crown is Ideal for rapid drilling of all types of concrete. The versatile professional drill crown offers high aggressiveness and very long operating life thanks to 11 mm high roof segments.
