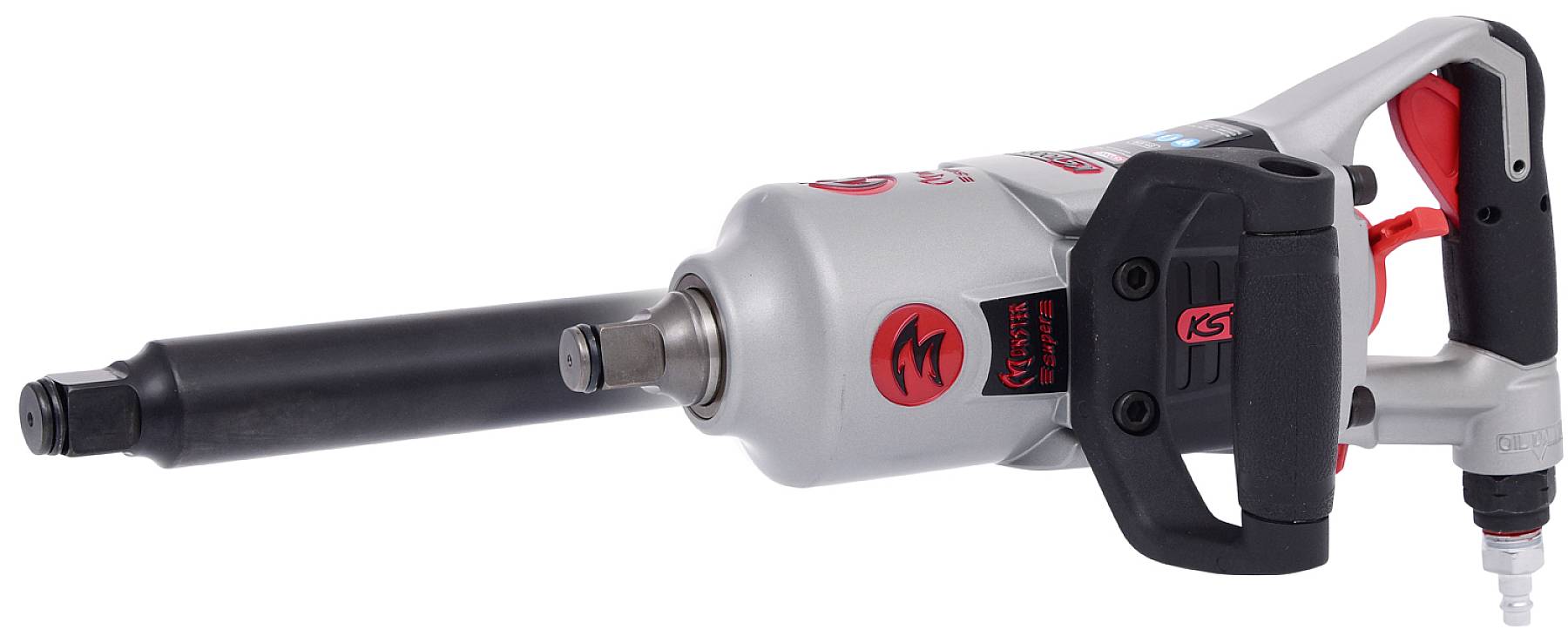

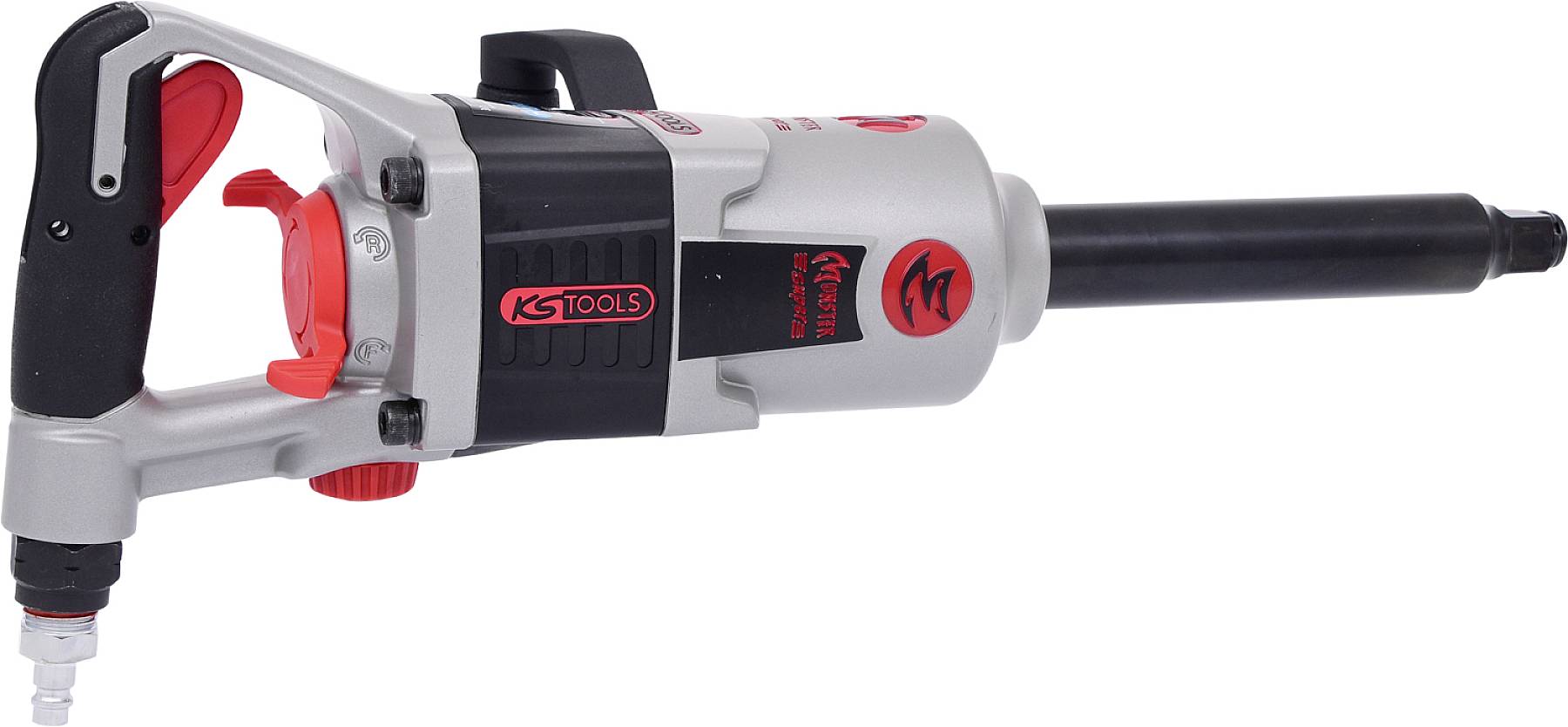

KS Tools 515.3260 Pneumatic impact driver Tool holder: 3/4" (19 mm) male square Torque (max.): 3405 Nm
EAN:
Part number:
Item no:
Number
Total (€ 886.55 / piece)
€ 886.55
plus VAT.
14-day return policy included
Highlights & Details

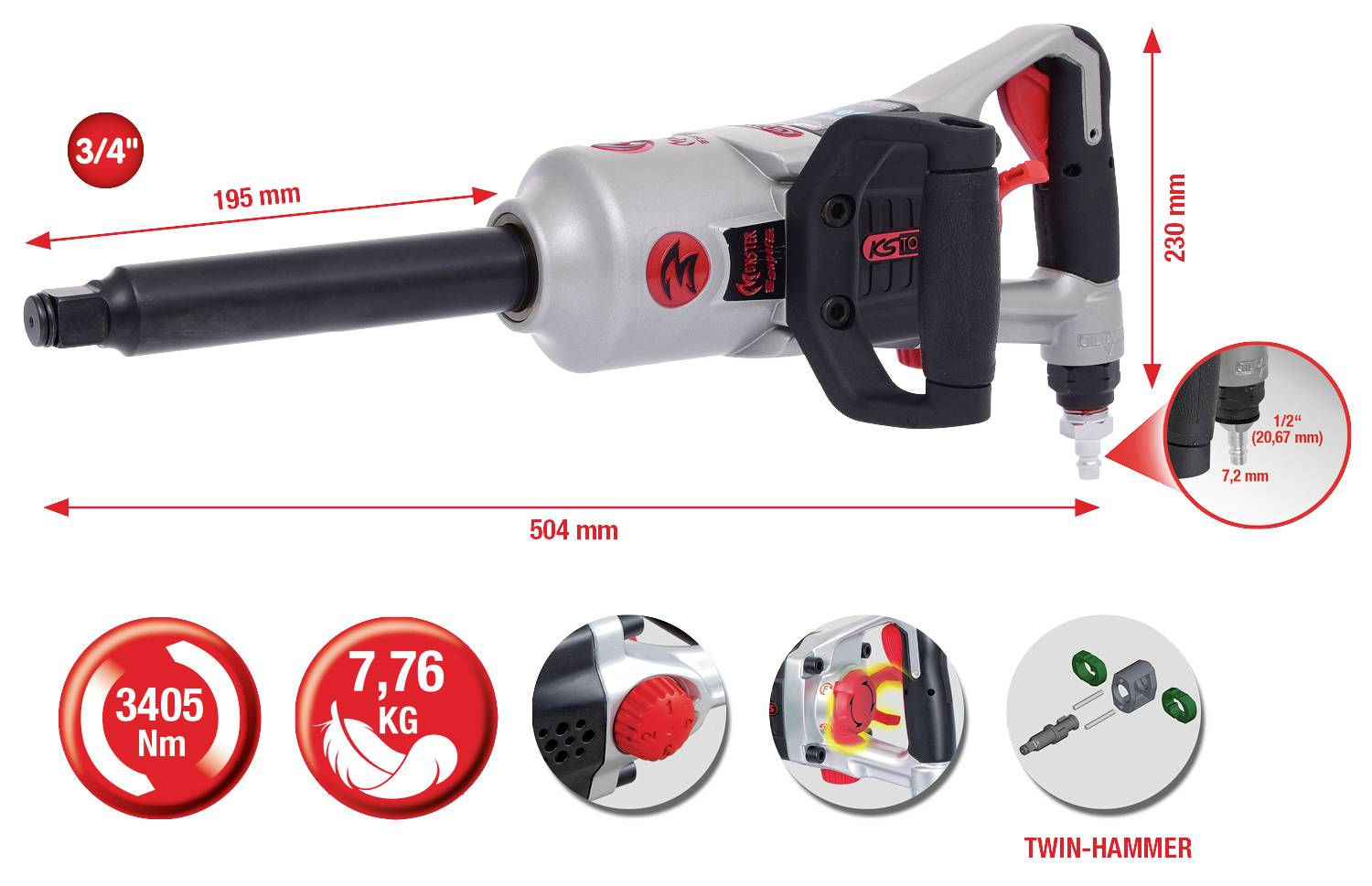

3/4" super monster high-performance compressed air impact driver, 3405Nm, 504 mm
- Torque (max.): 3405 Nm
Technical specifications

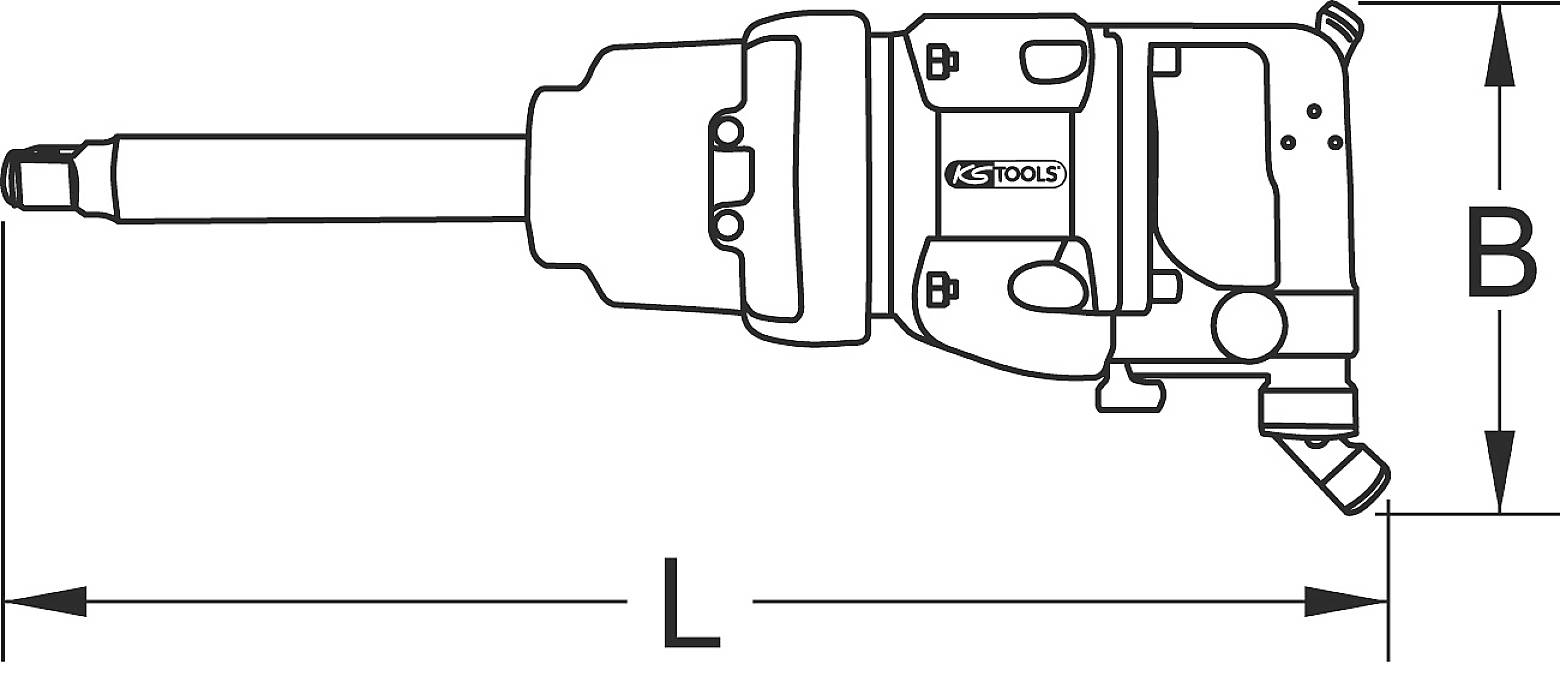

- Material 1: Aluminium Weight 7760 gTotal length L in mm: 504 mmHandle: Non-slip soft grip handle Width B 230 mmInclusion in inches: 3/4"Connection thread 1/2" PT Operating mode: Pneumatic Operating pressure in bar: Max. 6.3 bar (90 psi) min. Hose diameter 3/4" - 19 mm Vibration acceleration : < 12.88 m/s²Idle speed in rpm:6200 rpmSquare drive: 3/4"Max. clockwise rotation torque 1 = 919 Nm Air consumption in l/min: 283 l/min.Sound pressure level (DBA): 115.5 DBASound power level (DBA): 104.5 DBAMax. loosening torque: 3405 Nm Max. clockwise tortures2:2 = 1523 Nm Max. clockwise torture3: 3 = 2145 Nm Uncertainty Vibration acceleration: 1.77 m/s²Max. Screw size: M 38 Max. clockwise torqulations4: 4 = 3064 Nm Anvil length in mm 195.0 mm
- Product type
Pneumatic impact driver
- Tool holder
3/4" (19 mm) male square
- Connector
1/4" (6,35 mm)
- Max. operating pressure
6.3 bar
- Torque (max.)
3405 Nm
- Rotational speed (max.)
6200 U/min
- Air consumption
283 l/min
- Weight
7760 g
- Length
504 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2700755 KS Tools 515.3260 Pneumatic impact driver Tool holder: 3/4" (19 mm) male square Torque (max.): 3405 Nm
Conformity certificate
Conformity certificate 2700755 KS Tools 515.3260 Pneumatic impact driver Tool holder: 3/4" (19 mm) male square Torque (max.): 3405 Nm
Description

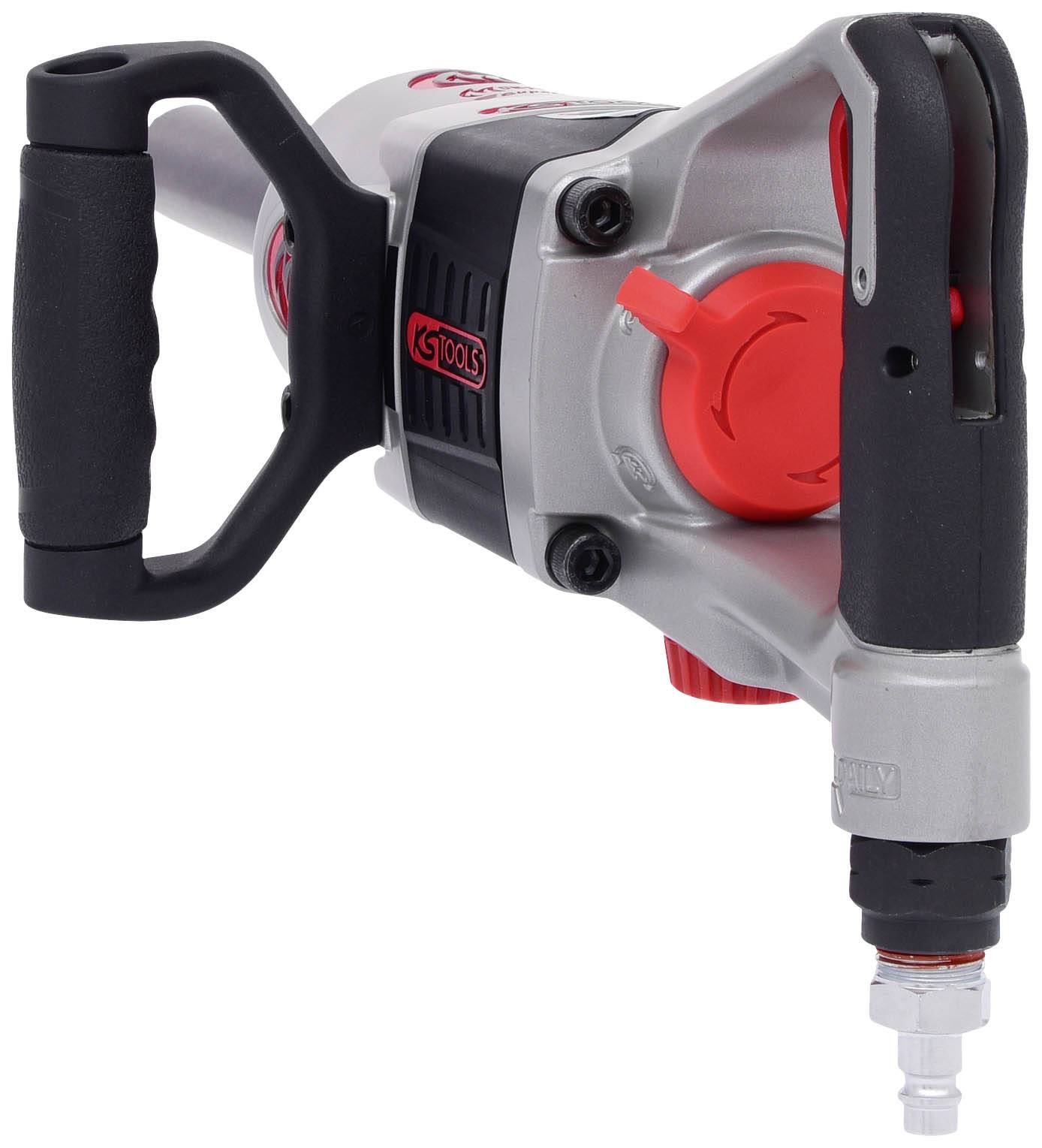

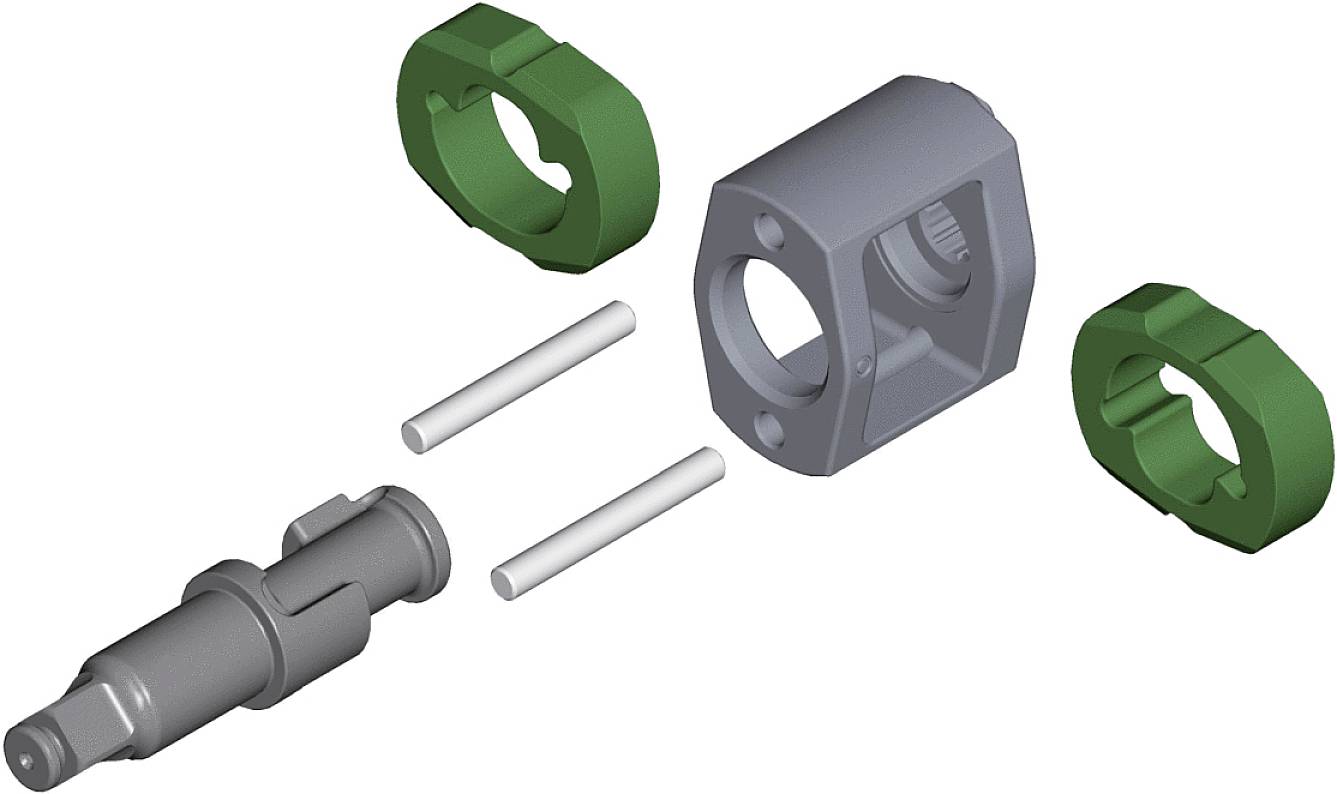

With non-slip soft-grip handleAir exhaust by pushing down the handleLong anvilWith 4-speed pre-selection for tightening and looseningEasy to operateLow vibrationPull-off integrated in the handleLow noise levelHigh-performance double hammer impactWith hole for pin safetyHigh durabilityCold-insulated handleIncluding 1/2" coupling connectorUltra-light aluminum casing
