Buy Kyoritsu KEW 3551 Insulation tester 50 V, 100 V, 125 V, 250 V, 500 V, 1000 V 4000 MΩ | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

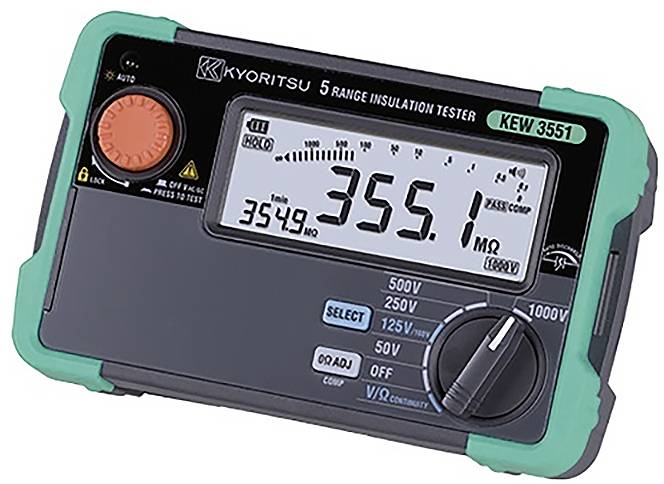

'Kyoritsu KEW 3551' insulation tester displaying 355.1 MΩ reading, with 500V setting, dial, buttons, and digital screen.

'Kyoritsu KEW 3551' insulation tester displaying 355.1 MΩ reading, with 500V setting, dial, buttons, and digital screen.

Kyoritsu

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 669.00 / piece)

€ 669.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Kyoritsu KEW 3551 digital insulation tester

Fastest measurement speed (0.5 sec.)
6 measuring ranges for insulation resistance (50/100/125/250/500/1000 V)
Insulation measurement up to 4 GΩ
Diagnosis insulation test: PI
ILLUSTRATED

Technical specifications

Auto-discharge: Automatically discharges the test voltage after measurement
Live Circuit Warning: Warning when the voltage is present before the measurement
Measurement speed: Extremely fast measurement (approx. 0.5 sec. Response time)
Standard filling:IEC 61010-1, IEC 61557-1, -2, -4, -10

Product type: Insulation tester

Test voltage: 50 V
100 V
125 V
250 V
500 V
1000 V

Reading type: Insulation resistance
Voltage

: Manufacturer's standards (no certificate)

Reading range - resistance: 0.00 - 40 Ω

: IP40

Power supply (details): 9 V

Dim: (L x W x H) 97 x 156 x 46 mm

Weight: 490 g

Display type: Digital (LCD)

Max. frequency: 60 Hz

Min. frequency: 45 Hz

Frequency range: 45 Hz - 60 Hz

Insulation resistance (max.): 4000 MΩ

Calibration service: Factory test of voltage, resistance and insulation

Voltage reading range (max.): 600 V AC
600 V DC

Voltage reading range (min.): 2 V

Reading category: CAT III 600 V
CAT IV 300 V

Width: 156 mm

Height: 46 mm

Length: 97 mm

Documents & Downloads

Datasheet

Datasheet 3642367 Kyoritsu KEW 3551 Insulation tester 50 V, 100 V, 125 V, 250 V, 500 V, 1000 V 4000 MΩ

User & Safety Instructions

User & Safety Instructions 3642367 Kyoritsu KEW 3551 Insulation tester 50 V, 100 V, 125 V, 250 V, 500 V, 1000 V 4000 MΩ

Description

Kyoritsu digital insulation tester

This text is machine translated.

Scope of delivery

Test leads (7243A)
Remote control switch (7260)
Cord Case (9150)
Carry strap
Batteries (6x AA)
User manual

Description

Kyoritsu digital insulation tester

This text is machine translated.

Scope of delivery

Test leads (7243A)
Remote control switch (7260)
Cord Case (9150)
Carry strap
Batteries (6x AA)
User manual
