Name: LAPP 1032001/100 Bus cable UNITRONIC® ROBUST 3 x 0.14 mm² Black 100 m
Brand: LAPP
SKU: 1500284
Availability: SoldOut

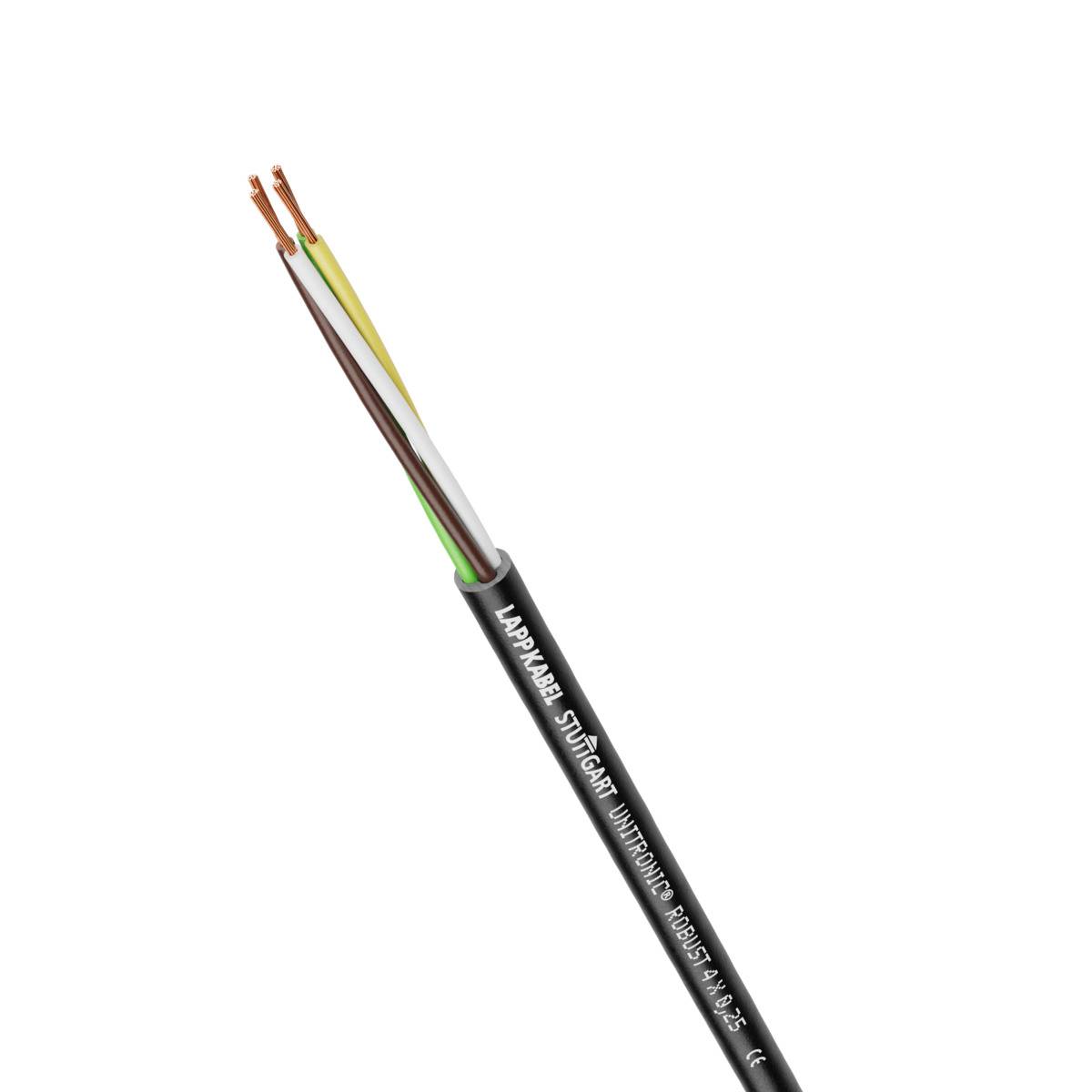

Black cable with label 'LAPP KABEL STUTTGART UNITRONIC ROBUST' and coloured cable cores at the right-hand end.

Image similar

Product type

Bus cable

No. of leads

3 x

Cross section (each core)

0.14 mm²

Cable features

Halogen-free

chemical-resistant

Cold-resistant

suitable for outdoor use

UV-resistant

Cable type

UNITRONIC® ROBUST

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (1 m = € 1.10)

€ 109.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

UNITRONIC ® ROBUST

Technical specifications

Product type: Bus cable

Cable type: UNITRONIC® ROBUST

No. of leads: 3 x

Cross section (each core): 0.14 mm²

Cross section: 3 x 0.14 mm²

Cable features: Halogen-free
chemical-resistant
Cold-resistant
suitable for outdoor use
UV-resistant

Outside Ø: 3.40 mm

Factory colour: Black

Content: 100 m

Test voltage: 1200 V

Bend radius (no. of ODs for fixed installation): 4

Bend radius (no. of ODs for flexible installation): 10

Packaged: Yes

Sold per metre: No

Halogen-free: Yes

Manufacturer part #: 1032001/100

Min. temperature range (flexible installation): -40 °C

Max. temperature range (flexible installation): +90 °C

Min. temperature range (fixed installation): -50 °C

Max. temperature range (fixed installation): +90 °C

Type: UNITRONIC ROBUST 3x0,14

Nominal voltage: 350 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1500284 LAPP 1032001/100 Bus cable UNITRONIC® ROBUST 3 x 0.14 mm² Black 100 m

User & Safety Instructions

User & Safety Instructions 1500284 LAPP 1032001/100 Bus cable UNITRONIC® ROBUST 3 x 0.14 mm² Black 100 m
