Name: LAPP 2170620/500 Bus cable UNITRONIC® BUS 1 x 2 x 0.32 mm² + 0.32 mm² Violet 500 m
Brand: LAPP
SKU: 1336204
Availability: InStock

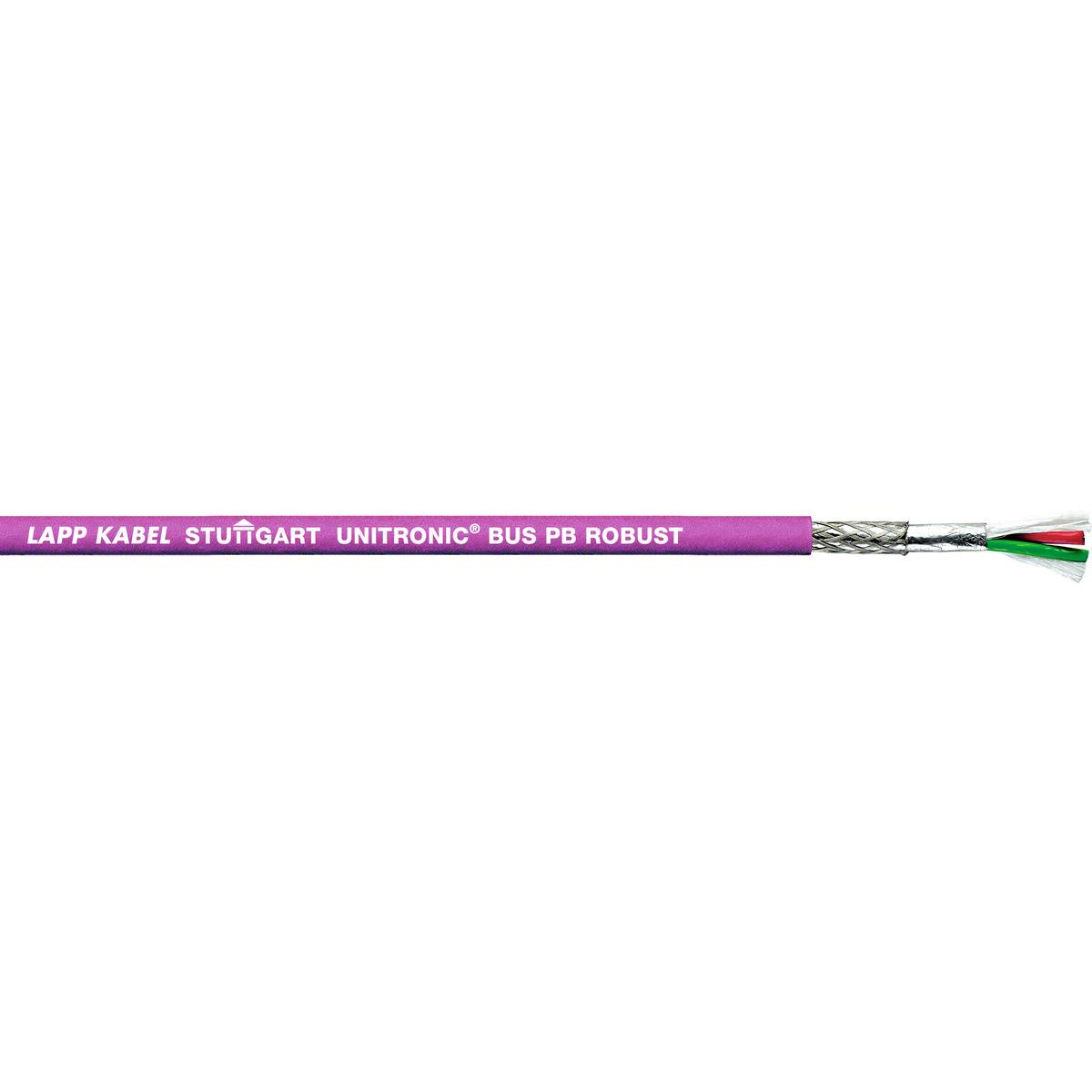

A purple LAPP cable with the inscription 'LAPP KABEL STUTTGART UNITRONIC BUS PB ROBUST', partially stripped, revealing internal wires in various colours.

Image similar

Product type

Bus cable

Cable type

UNITRONIC® BUS

No. of leads

2 x

Cross section (each core)

0.32 mm²

Cross section (each core) (part 2)

0.32 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

7 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (1 m = € 3.96)

€ 1,979.00

incl. VAT

Only 7 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

UNITRONIC ® BUS PB ROBUST

Technical specifications

Product type: Bus cable

Cable type: UNITRONIC® BUS

No. of leads: 2 x

Cross section (each core): 0.32 mm²

Cross section (each core) (part 2): 0.32 mm²

Cross section: 1 x 2 x 0.32 mm² + 0.32 mm²

Cable features: Shielded
Common shield
Flame-retardant
UV-resistant

Outside Ø: 8 mm

Factory colour: Violet

Content: 500 m

Nominal voltage: 250 V

Test voltage: Wire/Wire: 1500 V eff · Wire/shield: 1500 V

Bend radius (no. of ODs for fixed installation): 10

Bend radius (no. of ODs for flexible installation): 19.23

Packaged: Yes

Sold per metre: No

Halogen-free: No

Shielded: Yes

Manufacturer part #: 2170620/500

Insulation material: TPE (low-odour thermoplastic elastomer )

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (flexible installation): -40 °C

Max. temperature range (flexible installation): +80 °C

Operating capacity: (1 kHz): approx. 28.5 nF/km

Wave impedance: 150 Ω

Type: UNITRONIC BUS PB ROBUST 1X2X0,64

Max. length sold by the metre: 500 m

Twisted pair cabling (part 1): Yes (1)

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1336204 LAPP 2170620/500 Bus cable UNITRONIC® BUS 1 x 2 x 0.32 mm² + 0.32 mm² Violet 500 m

User & Safety Instructions

User & Safety Instructions 1336204 LAPP 2170620/500 Bus cable UNITRONIC® BUS 1 x 2 x 0.32 mm² + 0.32 mm² Violet 500 m

Description

Robust PROFIBUS cable for use under difficult ambient conditions.

This text is machine translated.

Description

Robust PROFIBUS cable for use under difficult ambient conditions.

This text is machine translated.
