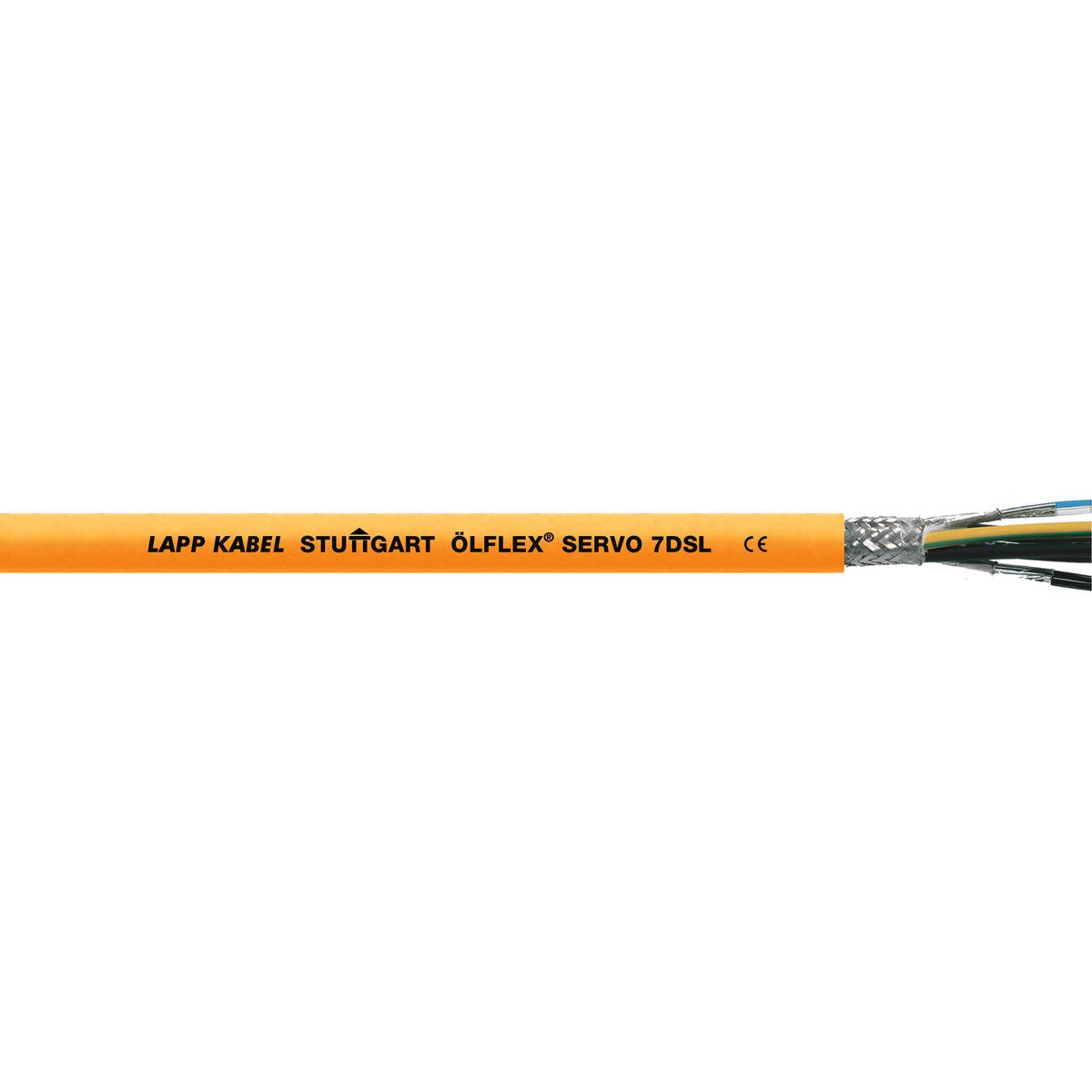

LAPP ÖLFLEX® SERVO 7DSL Servo lead 4 G 4 mm² + 2 x 0.32 mm² Orange 1023292/50 50 m
EAN:
Part number:
Item no:
Product type
Servo lead
No. of leads
4 G
Cross section (each core)
4 mm²
Cable type
ÖLFLEX® SERVO 7DSL
Outside Ø
14.0 mm
Datasheet (PDF)
Total (1 m = € 10.17)
€ 508.40
plus VAT.
14-day return policy included
Highlights & Details
Hybrid cable ÖLFLEX ® SERVO 7 DSL
Technical specifications
- Product type
Servo lead
- No. of leads
4 G
- Content
50 m
- Cross section (each core)
4 mm²
- Cable features
Flame-retardant
Oil-resistant
- Cross section (each core) (part 2)
0.32 mm²
- No. of leads (part 2)
2 x
- Cable type
ÖLFLEX® SERVO 7DSL
- Outside Ø
14.0 mm
- Packaged
Yes
- Bend radius (no. of ODs for fixed installation)
5
- Bend radius (no. of ODs for flexible installation)
7.5
- Halogen-free
No
- Manufacturer part #
1023292/50
- Factory colour
Orange
- Insulation material
PVC
- Sold per metre
No
- Nominal voltage
1000 V
- Nominal voltage U0
600 V
- Cross section
4 G 4 mm² + 2 x 0.32 mm²
- Max. temperature range (flexible installation)
+90 °C
- Min. temperature range (flexible installation)
-40 °C
- Max. temperature range (fixed installation)
+70 °C
- Min. temperature range (fixed installation)
-40 °C
- Type
ÖLFLEX SERVO 7DSL 4G4+(2x22AWG)
Documents & Downloads
Datasheet
Datasheet 1335301 LAPP ÖLFLEX® SERVO 7DSL Servo lead 4 G 4 mm² + 2 x 0.32 mm² Orange 1023292/50 50 m
User & Safety Instructions
User & Safety Instructions 1335301 LAPP ÖLFLEX® SERVO 7DSL Servo lead 4 G 4 mm² + 2 x 0.32 mm² Orange 1023292/50 50 m
Description
Well-suited for use in power chains, the electric drive technology as well as connecting wire between Servo regulator and motor. Easy to install.
