LEDmaxx 105627 2x Floor socket incl. CAT5 socket, Child safety Aluminium

Double socket in a metal casing with hinged lids, mounted on a surface. Suitable for furniture or worktops.
Metal switch plate with two equally sized rectangular buttons, each with a small downward-pointing arrow at the bottom.

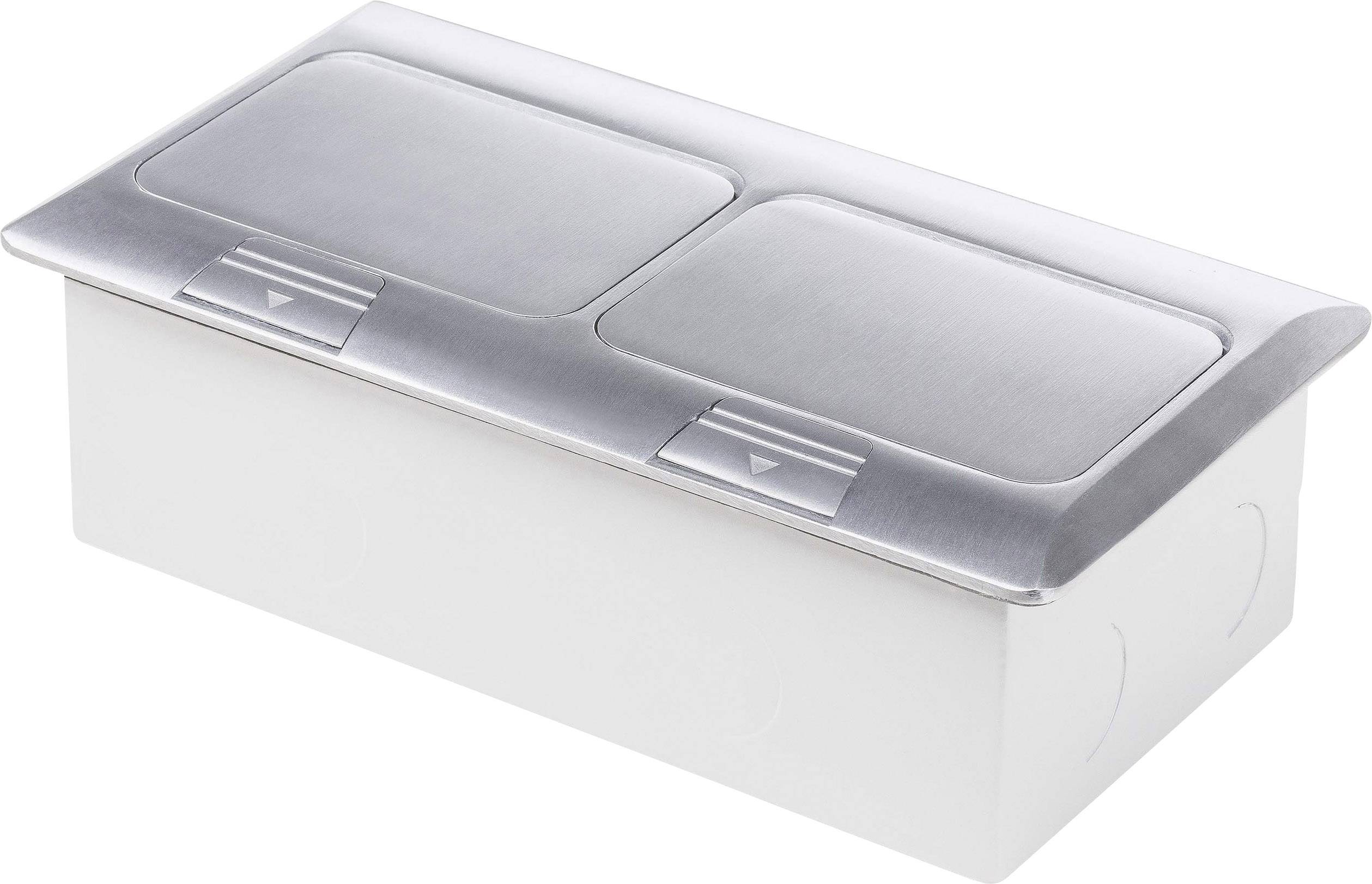

A rectangular, silver floor tank with two hinged lids.

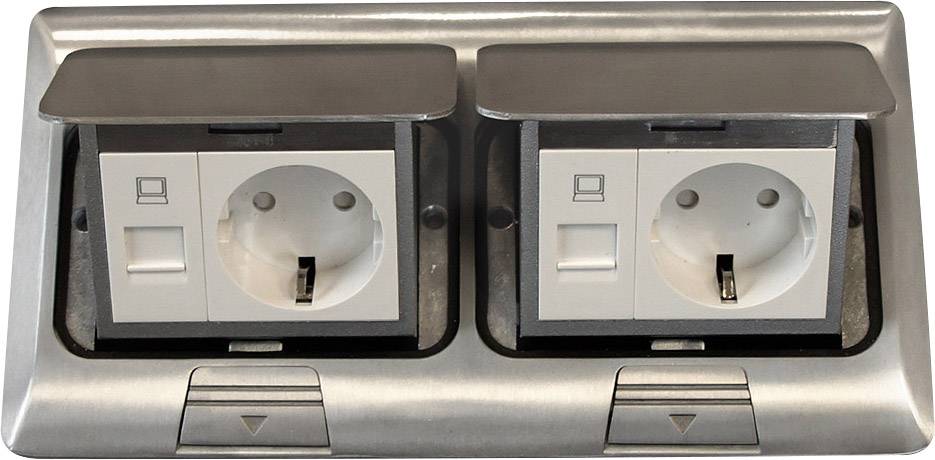

Double socket in a recessed enclosure, suitable for use in office spaces or conference rooms.

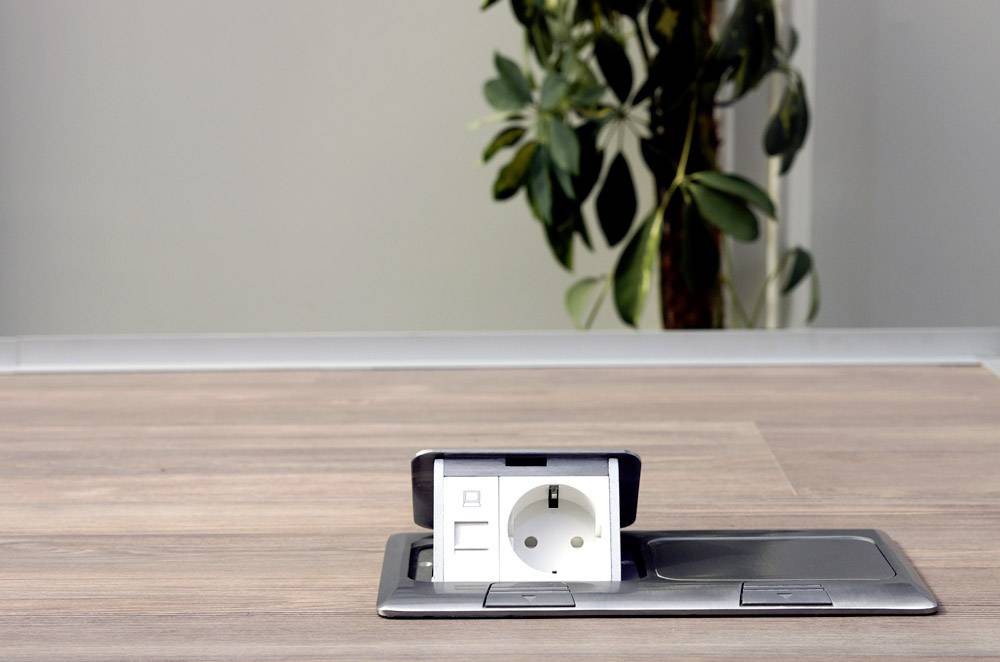

Socket integrated into a wooden desk, open with visible connections. Plant in the background.

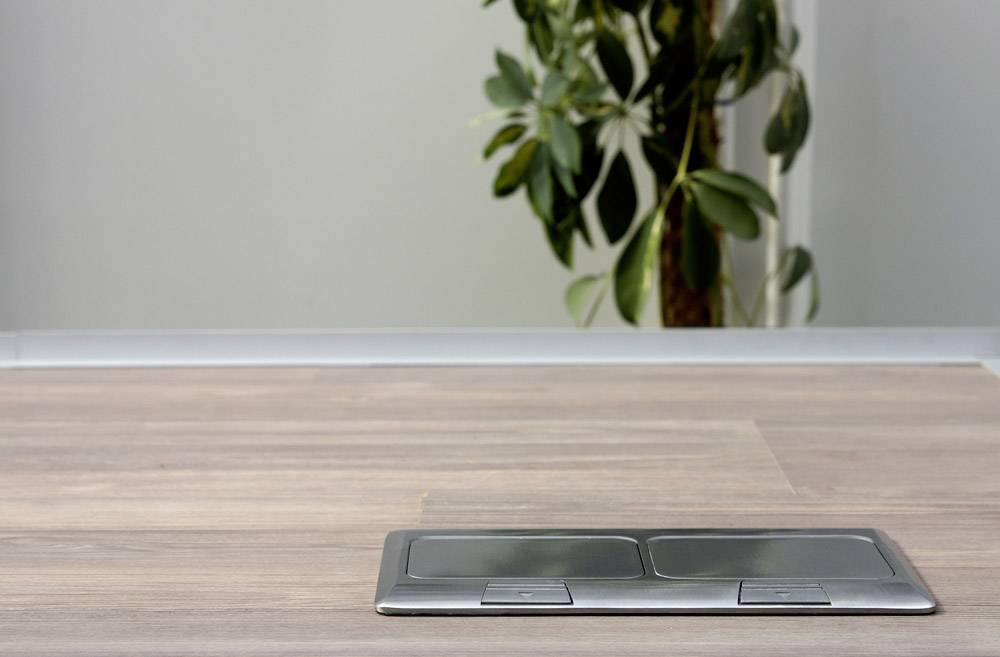

A closed metal floor socket adapter in front of a blurred background with green leaves.

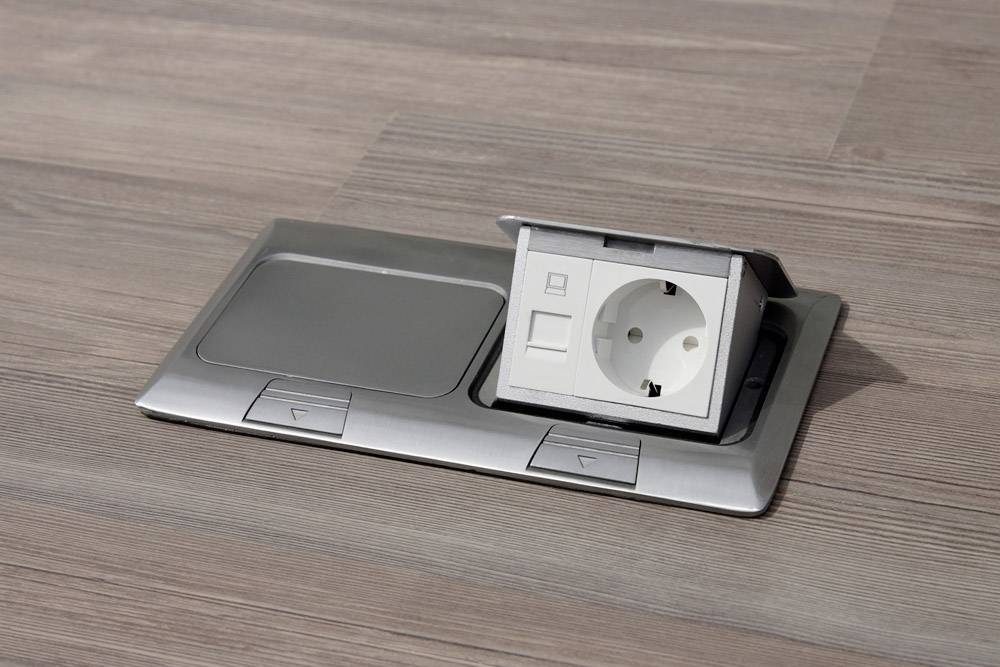

A floor socket with an open hinged lid is located in a wooden floor. The socket and connections are visible.

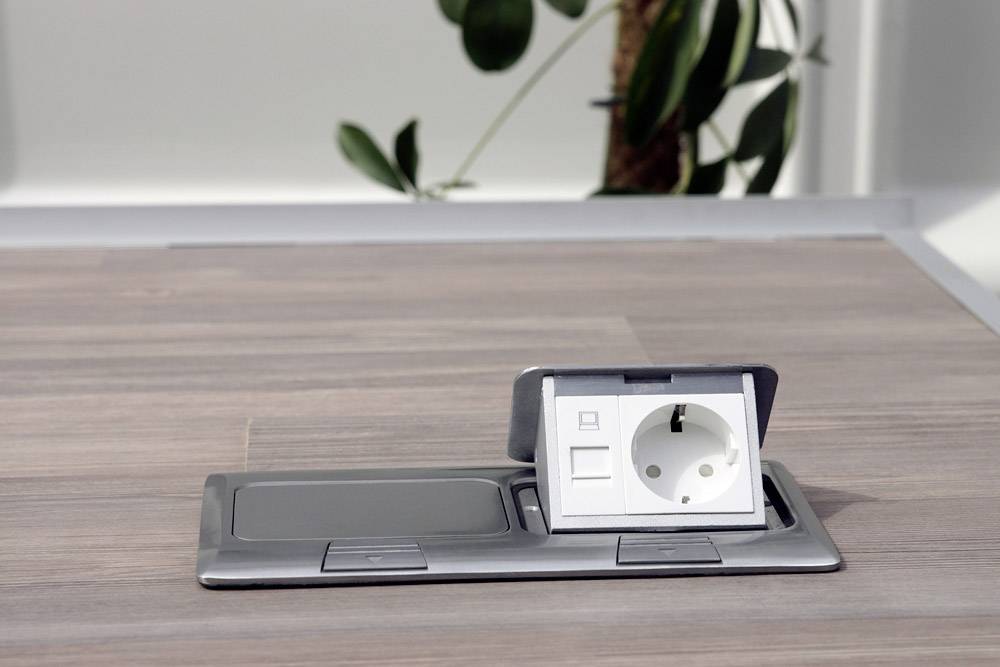

Socket embedded in table surface, surrounded by wood grain pattern. A plant is slightly out of focus in the background.

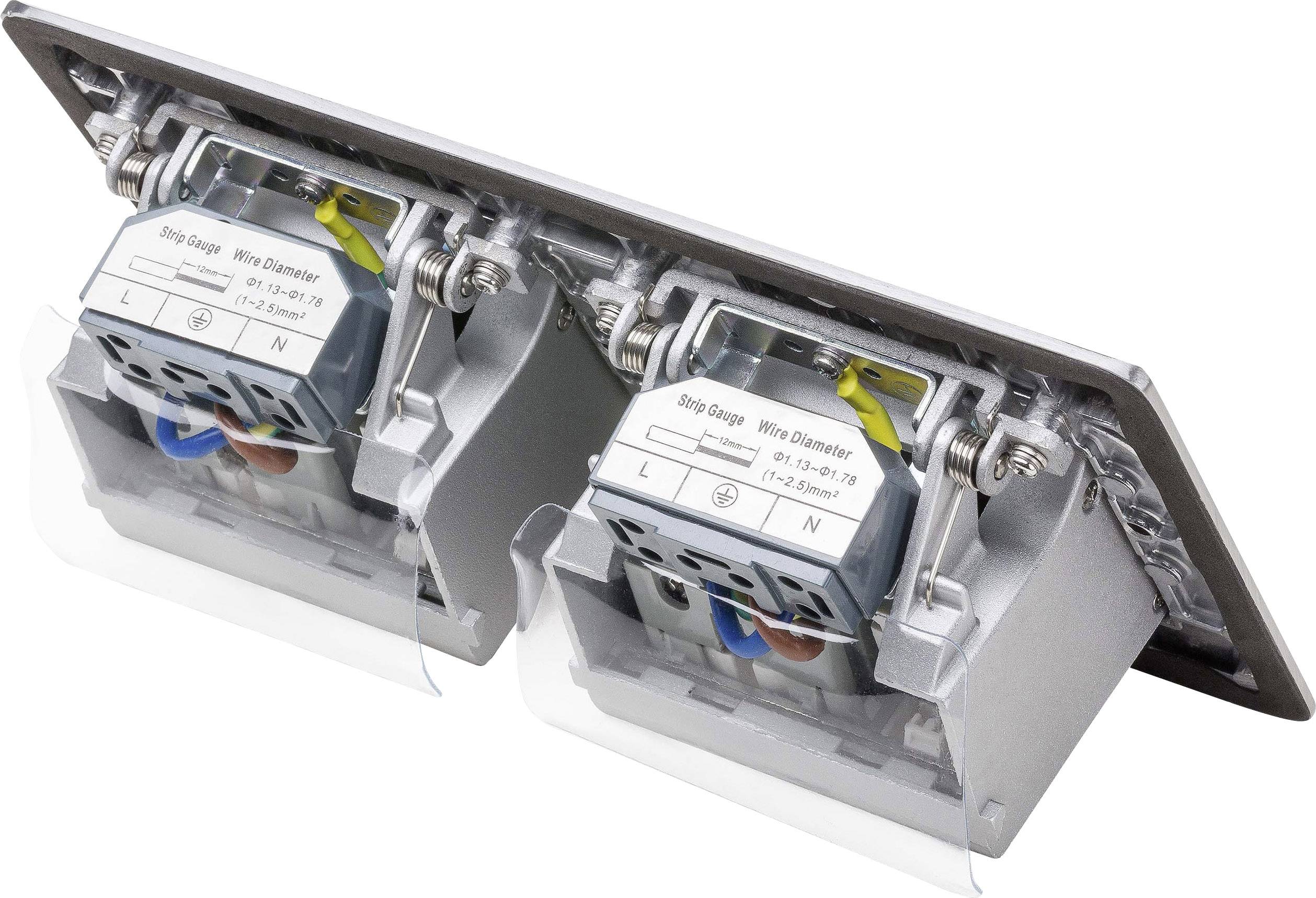

Two electrical wall sockets with labelled cable connections (L, N) and visible wire connections, mounted on a board.
1/9
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
4 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 114.99 / piece)
€ 145.00
-21 %
€ 114.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 4 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

  • Mounting dimensions: 200 x 100 x 57 mm
  • Mass (cover): 220 x 120 mm
Product type

Floor socket

Light bulb features

incl. CAT5 socket

Child safety

Outlets

2

Nominal voltage

230 V

Nominal current

16 A

Mounting type

Recess-mount

Floor

Wall

Factory colour

Aluminium

Content

1 pc(s)

Description

The floor and wall mounting socket is equipped with two earthing contact sockets with increased touch protection and two module data sockets RJ45 8-pin CAT5 with self-closing dust protection cover. Galvanized mounting box 200x100x57 mm. Cover aluminum cast/ground 220x120 mm. Can be driven over. With plug connection 1 - 2.5 mm².

This text is machine translated.
