LEDmaxx DM001 Universal dimmer Suitable for light bulbs: Halogen lamp, LED bulb White

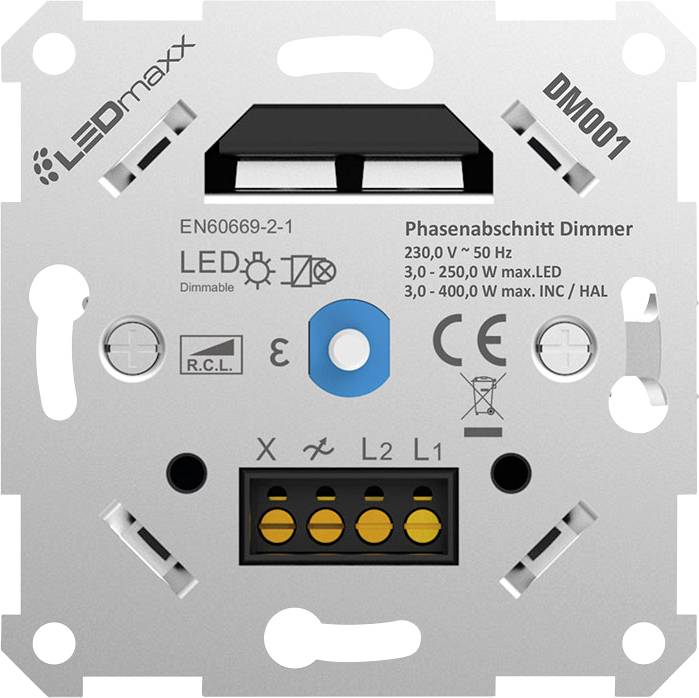

LEDmaxx DM001 dimmer switch front showing connection terminals and German technical specifications for LED compatibility and load.

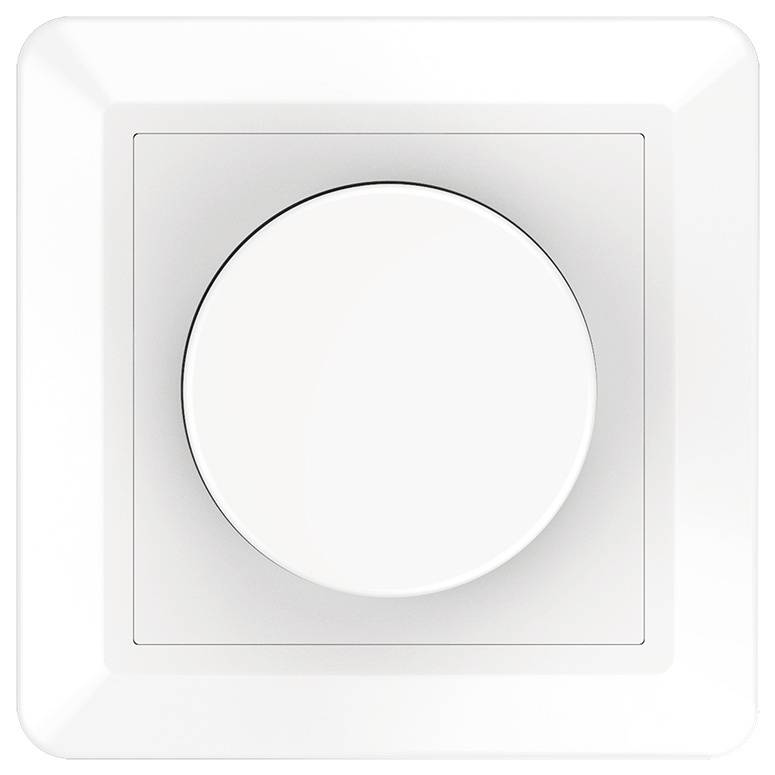

A white wall-mounted dimmer switch with a round knob, set within a square frame, used to adjust light brightness in a room.

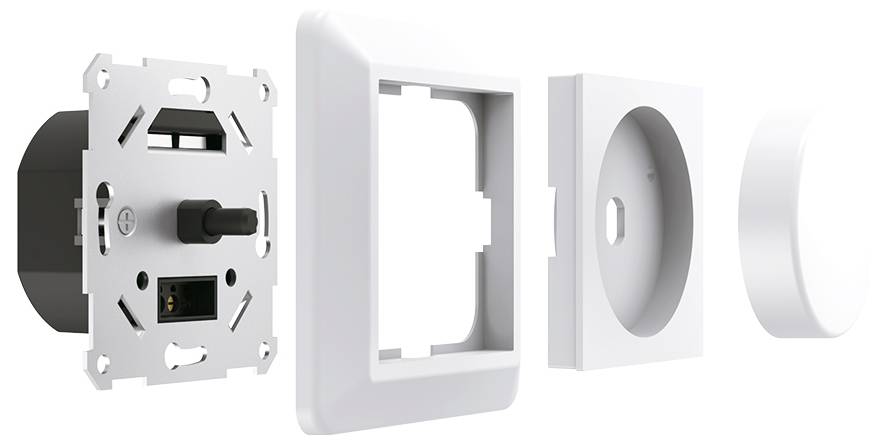

Exploded view of a light switch assembly, showing internal components and outer frame in sequence from left to right.
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
1 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 48.99 / piece)
€ 48.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 1 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

  • Universal dimmer
  • Dimming type: Trailing edge phase dimmer
  • Operating temperature range 5-25°C.
  • Voltage 220-240/AC
  • Mains frequency: 50/60 Hz.
  • Net weight: 90g
Product type

Universal dimmer

Power rating (min.)

3 W

Power rating (max.)

400 W

Suitable for light bulbs

Halogen lamp

LED bulb

Switching capacity (LED)

250 W

Switching capacity (light bulbs)

3-250 W

Switching capacity (halogen bulbs)

3-400 W

Factory colour

White

Documents & Downloads

Datasheet

Datasheet 3451729 LEDmaxx DM001 Universal dimmer Suitable for light bulbs: Halogen lamp, LED bulb White

User & Safety Instructions

User & Safety Instructions 3451729 LEDmaxx DM001 Universal dimmer Suitable for light bulbs: Halogen lamp, LED bulb White

Description

This universal white dimmer has a wide range of uses and is compatible with a wide range of bulbs. It supports LED bulbs with a power from 3 to 250 watts as well as halogen lamps from 3 to 400 watts. The dimmer offers an easy regulation of the brightness and thus provides for the perfect light mood in every room. Ideal for use in the home or workplace, where flexibility and user-friendliness are required.

This text is machine translated.
