Name: Leica Disto D5 Laser range finder Bluetooth, Data logger app, Rechargeable Li-ion battery 200 m
Brand: Leica
SKU: 3453327
Availability: SoldOut

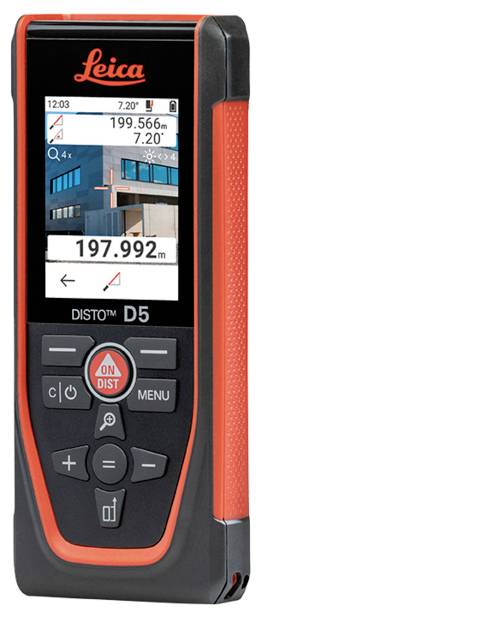

Handheld laser distance meter with a digital screen, displaying measurements of '199.566m' vertically and '197.992m' horizontally.

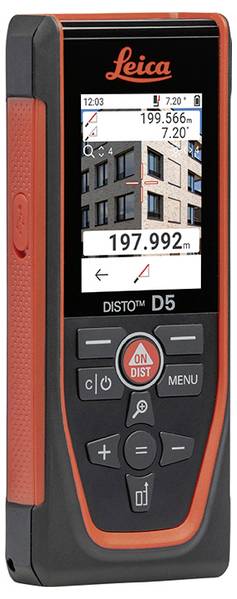

A handheld laser distance measuring tool with a color screen displaying a building's distance and angle measurements.

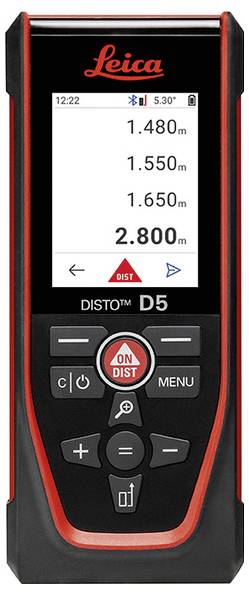

A digital laser distance measurer displaying different measurements on its screen, with buttons for various functions below the display.

Handheld laser distance meter with digital display and buttons, used for measuring distances accurately.

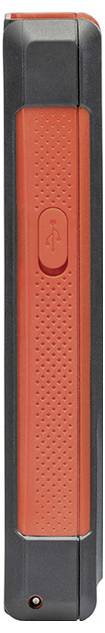

A black and red portable power bank with a vertical USB port icon on the side.

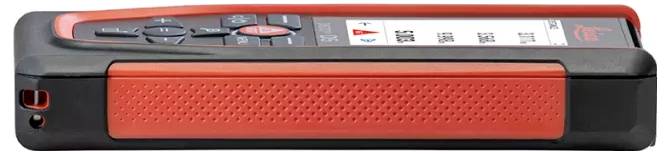

A red and black laser distance meter with a digital display and buttons on the top, used for measuring distances accurately.

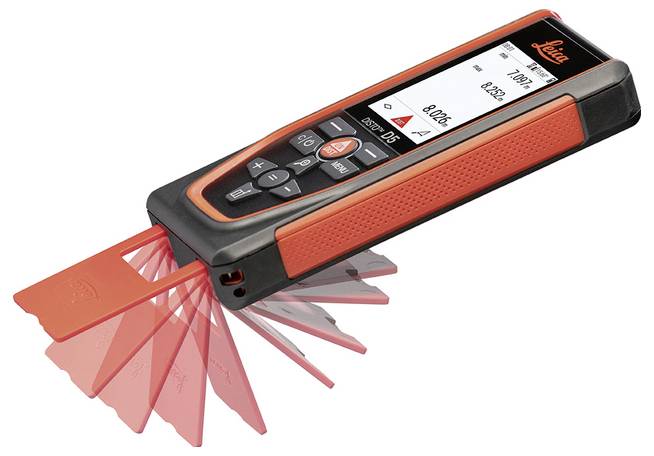

A laser distance measurer with a digital display, buttons, and a retractable red angle finder, used for precise measurements.

1/7

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 685.00 / piece)

€ 685.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Leica 950908 DISTO D5

Reading range 0.05 m - 200 m
Accuracy ± 1 mm;IP54

Technical specifications

Accuracy in favorable conditions 1.0 mm
Accuracy in unfavorable conditions: 2.0 mm
Range under favorable conditions 0.05 – 200 m.
Range under unfavorable conditions 0.05 – 120 m
Smallest display unit: 0.1 mm
X-Range Power technology: Yes
Digital homing device with 4-way Zoom: Yes
Angle of inclination range 360 °
Inclination tolerance: ± 0.2°
ø Laser point | at distance: 6 / 30 / 60 mm | 10 / 50 / 100 m.
Automatically Laser shut-off after:90 s.
Automatically Switch-off after 180 s.
Bluetooth® Smart: Bluetooth® v5.0
Range of Bluetooth®: Up to 10 m.
Rechargeable battery life (Li-Ion, 2000 mAh): Up to 5,000 measurements; up to 10 hours operating time
Storage temperature range | Operating: -25 to 70 °C | -10 to 50 °C.

Product type: Laser range finder

Type: Laser distance meter

Min. reading range: 0.05 m

Max. reading range: 200 m

Accuracy ±: 1 mm

Units of measurement: mm

Functions: Range finding (obstacles)
Inclinometer function

Power supply (details): Li-Ion 2000 mAh rechargeable battery, charged via USB-C

Weight: 180 g

: IP54

Laser category: 2

Laser wavelength: 635 nm

Reading (details): Display with IPS technology

Dim: (L x W x H) 144 x 60 x 24 mm

Width: 60 mm

Height: 24 mm

Length: 144 mm

: Manufacturer's standards (with certificate)

Features: Bluetooth
Data logger app
Rechargeable Li-ion battery

Type: Disto D5

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3453327 Leica Disto D5 Laser range finder Bluetooth, Data logger app, Rechargeable Li-ion battery 200 m

User & Safety Instructions

User & Safety Instructions 3453327 Leica Disto D5 Laser range finder Bluetooth, Data logger app, Rechargeable Li-ion battery 200 m

Description

The Leica DISTO D5 is particularly suitable for distance measurements in the outdoor area. Due to the digital homing device, the aim is no problem even in sunshine and at very large distances. Both the aim and the measurement results can be read very well on the large display with IPS-technology. For the highest accuracy the measurement can be triggered by gestures, WAS is a decisive advantage, especially at large distances. High flexibility offers different functions such as Smart horizontal mode, height tracking, profile or angle measurements. In this way, every measuring situation on the construction site can be solved quickly and efficiently. The data can then be transferred to the DISTO PLAN APP or individual templates, e.g. in EXCEL, and further processed in order to support an efficient and error-free digital workflow.

This text is machine translated.
