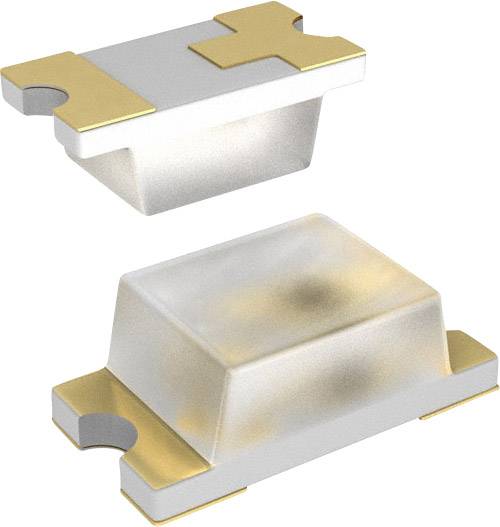

Lite-On LTST-C190TGKT SMD LED 1608 Green 260.5 mcd 130 ° 20 mA 3.2 V
EAN:
Part number:
Item no:
Product type
SMD LED
Forward voltage U(F)
3.2 V
Forward current I(F)
20 mA
Type
SMD
Type
1608
Datasheet (PDF)
25675 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
25
-
€ 0.07
75
14% = € 0.01
€ 0.06
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 25
Multiple: 25
Total (€ 0.07 / piece)
€
Technical specifications
- Product type
SMD LED
- Type
LTST-C190 TGKT
- Factory colour
Green
- Forward voltage U(F)
3.2 V
- Forward current I(F)
20 mA
- Type
SMD
- Type
1608
- Light intensity I(V)
260.5 mcd
- Wavelength
525 nm
- Radiation angle
130°
- Type
Clear
- Dim
(L x W x H) 1.6 x 0.8 x 0.8 mm
- Length
1.6 mm
- Technology
InGaN
- Width
0.8 mm
- Min. temperature
-20 °C
- Height
0.8 mm
- Max. temperature
+80 °C
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1127719 Lite-On LTST-C190TGKT SMD LED 1608 Green 260.5 mcd 130 ° 20 mA 3.2 V
User & Safety Instructions
User & Safety Instructions 1127719 Lite-On LTST-C190TGKT SMD LED 1608 Green 260.5 mcd 130 ° 20 mA 3.2 V
Description
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
