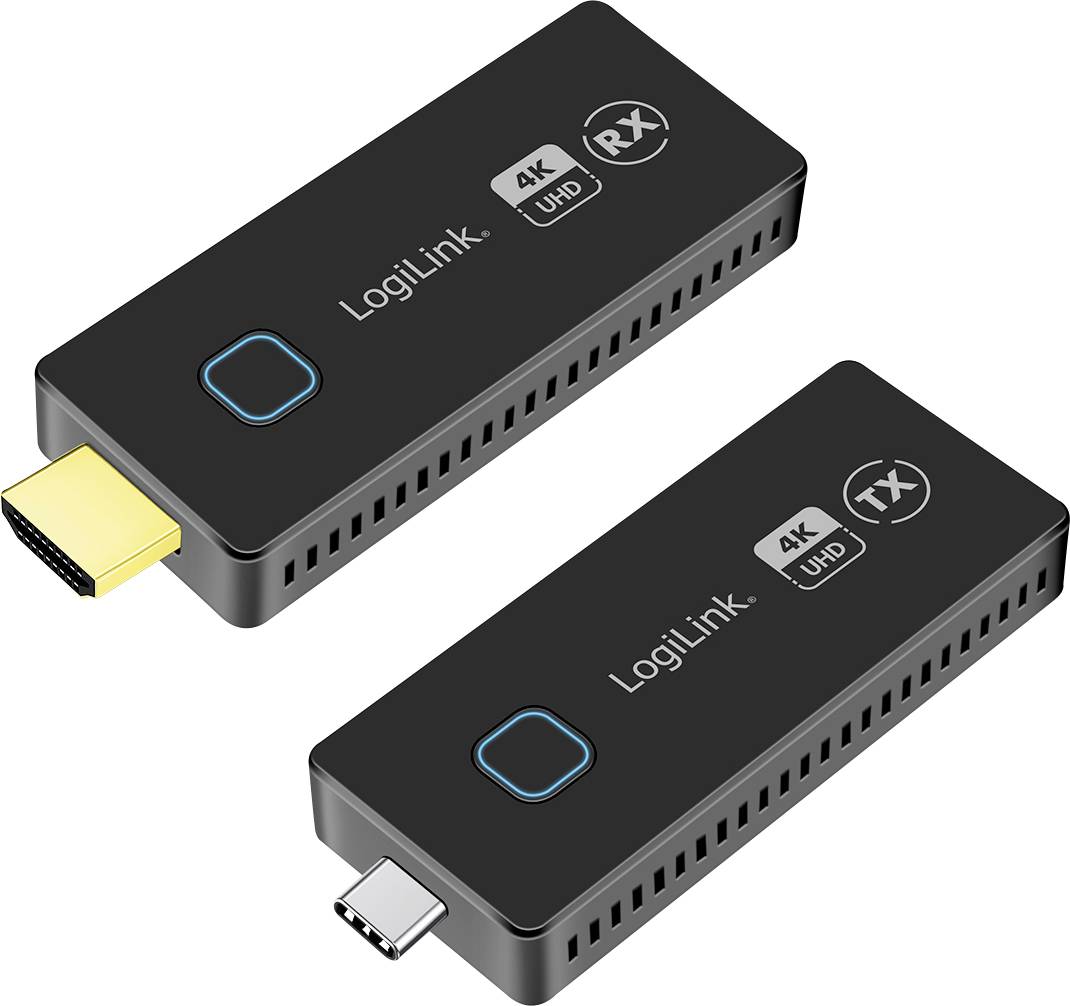

LogiLink HDW0104 Wireless HDMI (set) 30 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 159.66 / piece)
€ 159.66
plus VAT.
Only 7 Set(s) available
Highlights & Details
LogiLink HDMI transmission set, USB-C to HDMI, compact, wireless, 30m, 1zu 1, 4K@60Hz
- Based on HDMI 2.0 technology and the wireless standard 802.11ac
- Bandwidth: 6 Gbps at 600 MHz per line (18 Gbps total)
- Supports full HD A/V-signal transmission up to 30 m/98 ft
- Supports Ultra HD 4K/60 Hz video resolutions (YUV 4:2:0)
- Complies with HDCP 1.4 and 2.2
- The USB-C port of the signal source must support DisplayPort Alternate Mode (DP Alt Mode) or Thunderbolt
- Supports uncompressed audio such as LPCM 7.1 and sampling rates up to 48 KHz
- Supports compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD)
- Latency near zero
- Metal housing
- POWER SUPPLY DC 5 V/0.5 A
- Plug and play – no driver installation necessary
- Packing: Colour box
Technical specifications
- Product type
Wireless HDMI (set)
- Interfaces (input)
HDMI™
- Interfaces (output)
USB C®
- Range (max.)
30 m
- Factory colour
Black
- Weight
64 g
- Length
34 mm
- Width
13 mm
- Height
90 mm
- Dim
(L x W x H) 34 x 13 x 90 mm
- Power supply (LOV)
via USB
- Switch function
Key
Documents & Downloads
Datasheet
Datasheet 3399447 LogiLink HDW0104 Wireless HDMI (set) 30 m
User & Safety Instructions
User & Safety Instructions 3399447 LogiLink HDW0104 Wireless HDMI (set) 30 m
Description
With the wireless HDMI transmission set by LogiLink, you can transfer wireless HDMI video and audio signals over a distance of up to 30 m in free view. The operation and installation is very easy. Real plug & play – plug it in and go. Please keep in mind that the USB-C port of the signal source supports the DisplayPort alternative mode (DP-Alt mode) or Thunderbolt. Thanks to the compact design of transmitter and receiver, you can install it easily, quickly and individually - the perfect solution for spontaneous or short-term installations in meeting rooms and in private areas.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x (Sender)
- 1x receiver
- 1x HDMI extension cable
- 1x USB-C extension cable
- 2x USB-C to USB A cable
- 1x user manual.
