Name: LUKAS-ERZETT A27401250402071 Grinding disc set Diameter 125 mm Grit size=40 5 pc(s)
Brand: LUKAS-ERZETT
SKU: 3442547
Availability: BackOrder

A blue and black abrasive grinding disc labeled 'Lukas U-Edge Pro', suitable for stainless steel and iron, size 125x22.23 mm, type ZK 40.

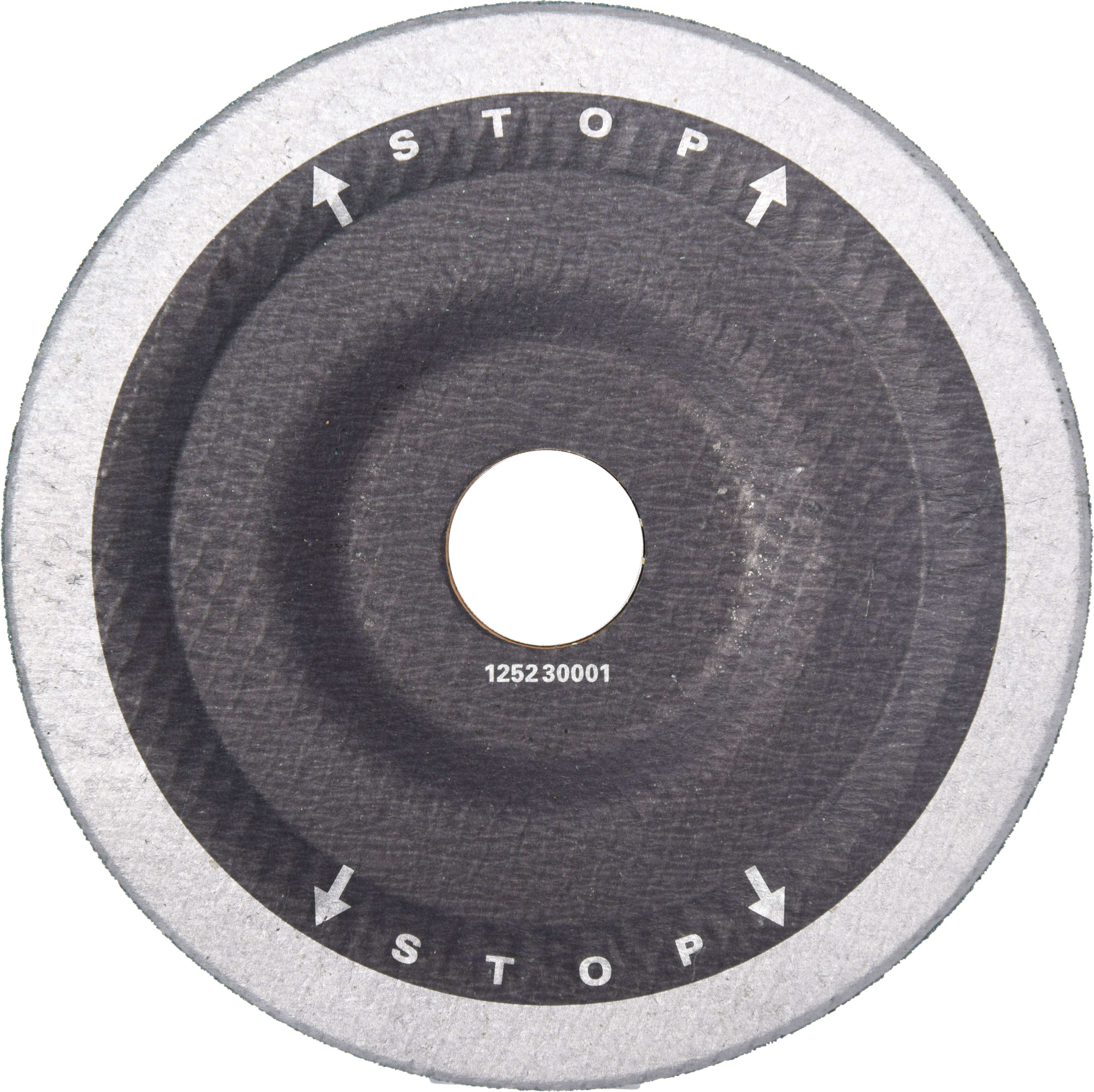

'A round, black abrasive disc with the word STOP and arrows pointing in opposite directions around the center hole.'

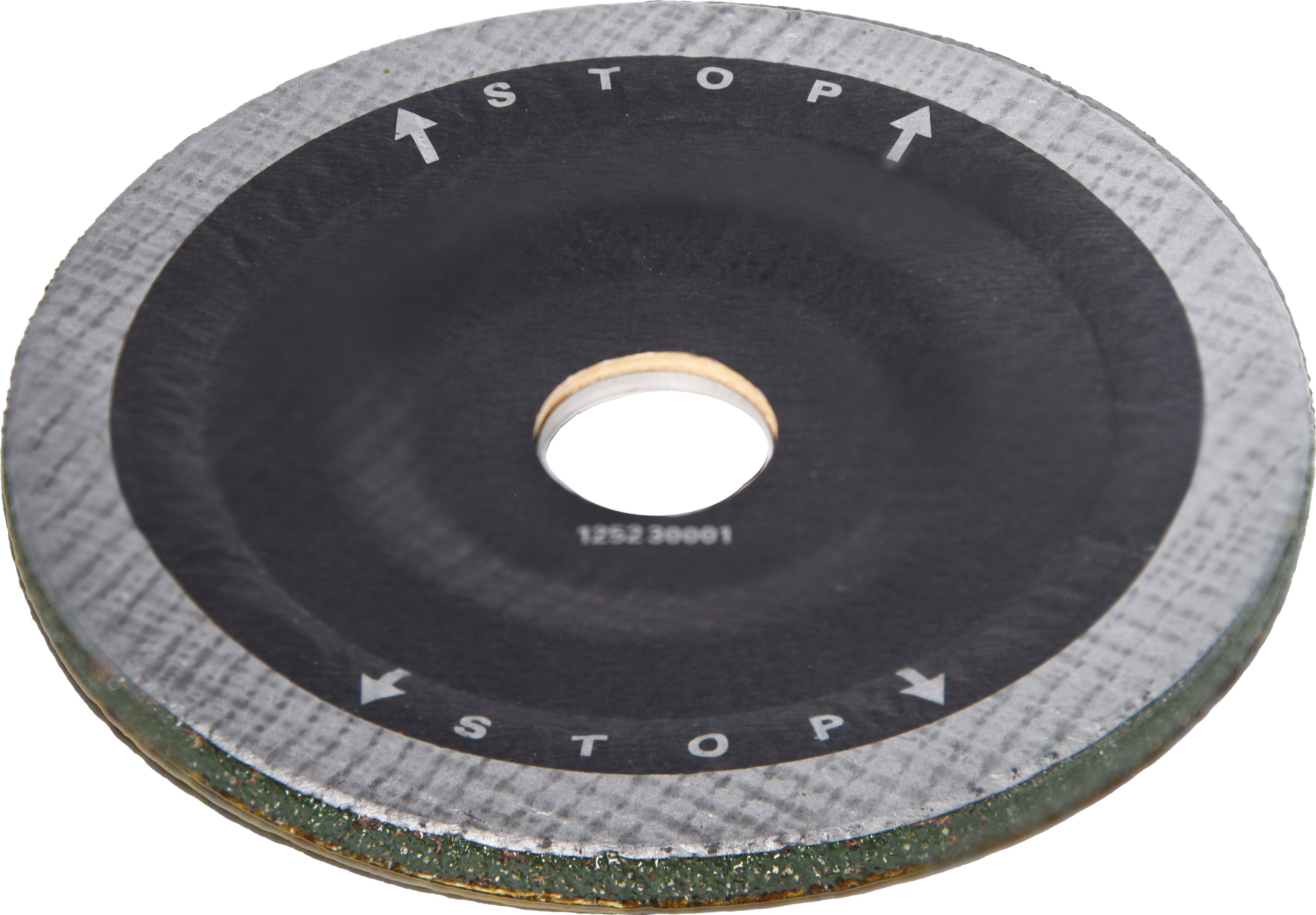

A circular grinding disc with arrows indicating a stop direction is shown. The outer edge is textured, and the center has a hole.

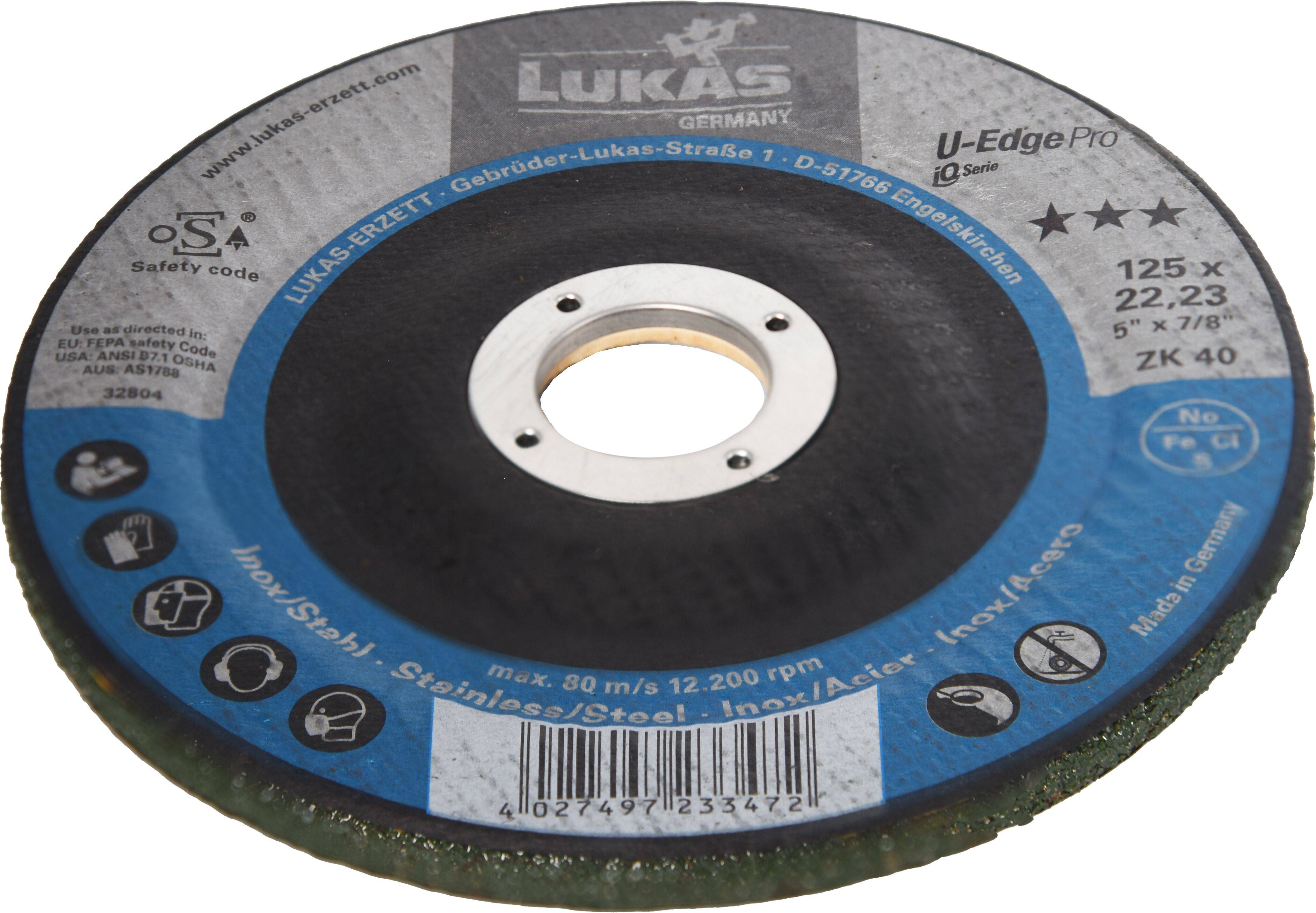

'Grinding disc labeled "LUKAS Germany U-Edge Pro" with specifications: 125x22.23 mm, for stainless steel, max 80 m/s, 12,200 rpm.'

1/4

EAN:

Part number:

Item no:

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 5 pc(s))

Set(s)

Total (€ 7.00 / piece)

€ 34.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Compact grinding disc U-Edge Pro Ø 125 mm zirconcorund Korn 40 flat

Sand-welding seams innovative

Technical specifications

Safety standard: OSA
Tool holder: Drilling
Tool holder dimensions 22.23 mm
V max. (m/s): 80
n max. (1/min): 12200
Tool form: Disc
Grain size - fleece 40
Stars: 3
Grinding agent: ZK (zirconium corundum)
Flap-wheel plate design: U-EDGE fillet weld grinder
Flap-disc shape: Flat
Suitability Steel and cast steel RM up to 800 N/mm²: Well suitable
Suitability alloyed, coated steels RM up to 1200: Well suited
Suitability for tool steels RM up to 1300 N/mm²: Well suited
Suitability rust, acid, heat-resistant. Steel/cast: Well suited
Suitability cast iron: Suitable
Suitable Al, Mg and Cu alloys: Well suited
Application deburring: Well suited
Application fine grinding: Suitable
Application Fillet weld grinder: Well suited
Application roughing: Suitable
Application of welding seam working: Well suited
Suitable for steel: Well suited
Suitable for Inox/Steel: Well suited
Suitable for Aluminum: Well suitable
Suitable for titanium

Product type: Grinding disc set

(Ø): 125 mm

Bore Ø: 22.23 mm

Grit size: 40

Material: Zirconium/corundum

Material suitability: Cast steel
Titanium
Stainless steel
Copper alloy
Aluminium
Aluminium alloy
Tool steel
Magnesium
Cast iron
Steel
Steel alloy
Quenched steel
Show more

Content: 5 pc(s)

Rotational speed (max.): 12200 U/min

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3442547 LUKAS-ERZETT A27401250402071 Grinding disc set Diameter 125 mm Grit size=40 5 pc(s)

Description

Sand-welding seams innovative
Point-exact processing of each weld seam
Roughing disk is not needed
Innovative new development, which makes application compromises unnecessary
Sanding sleeves wound up several times
Integrated edge protector prevents tool damage
Long tool life
LUKAS' innovative U-Edge Pro offers a revolutionary solution for precise grinding of fillet seams. This eliminates the need for grinding and grinding discs for machining welding seams. Unlike conventional grinding tools, the grinding surface is not on the flat side but on the edge of the disc. The special U-shape of the tool enables the work on small surfaces as well as the processing of narrow corners and edges for precise and point-exact grinding results with high tool life. Whether for sanding over welded seams, sanding during correction welding, cleaning, paint stripping or optical optimization, the radial grinding surface on the disc allows the use on almost any weld seam. Thanks to multi-wound grinding lines, this patented tool always offers you constant results till the last grinding grain. In addition, the integrated edge protector prevents damage to the workpiece during welding seam processing.

This text is machine translated.
