m-e modern-electronics VDV-B90 Vistus, Vistadoor Door intercom Corded Door intercom module
EAN:
Part number:
Item no:
Number
Total (€ 242.86 / piece)
€ 242.86
plus VAT.
Highlights & Details
m-e modern-electronics VDV-B90 Vistus, Vistadoor Door intercom Corded Door intercom module
Technical specifications
- Dim.: color camera module 80 x 80 x 26 mm lens Ø 52 mm, Loudspeaker 70 x 70 x 26 mm, microphone 30 x 30 x 19 mm, junction box 112 x 174 x 25 mm,
- IP camera protection class IP44
- Product type
Door intercom
- Component
Door intercom module
- Transfer type
Corded
- Leads
4 (+2 door openers)
- Mounting type (interior)
Recess-mount
- Mounting type (outdoor)
Recess-mount
- Upgradable with
Internal extension
- Max. viewing angle hor.
135°
- Vertical viewing angle
100°
- Width
80 mm
- Height
80 mm
- Depth
26 mm
- Series
Vistus
Vistadoor
- Fitting type (details)
Wall-mounted
- Operating voltage
15 V / DC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1299419 m-e modern-electronics VDV-B90 Vistus, Vistadoor Door intercom Corded Door intercom module
Information
Information 1299419 m-e modern-electronics VDV-B90 Vistus, Vistadoor Door intercom Corded Door intercom module
Warranty Terms
Warranty Terms 1299419 m-e modern-electronics VDV-B90 Vistus, Vistadoor Door intercom Corded Door intercom module
Description

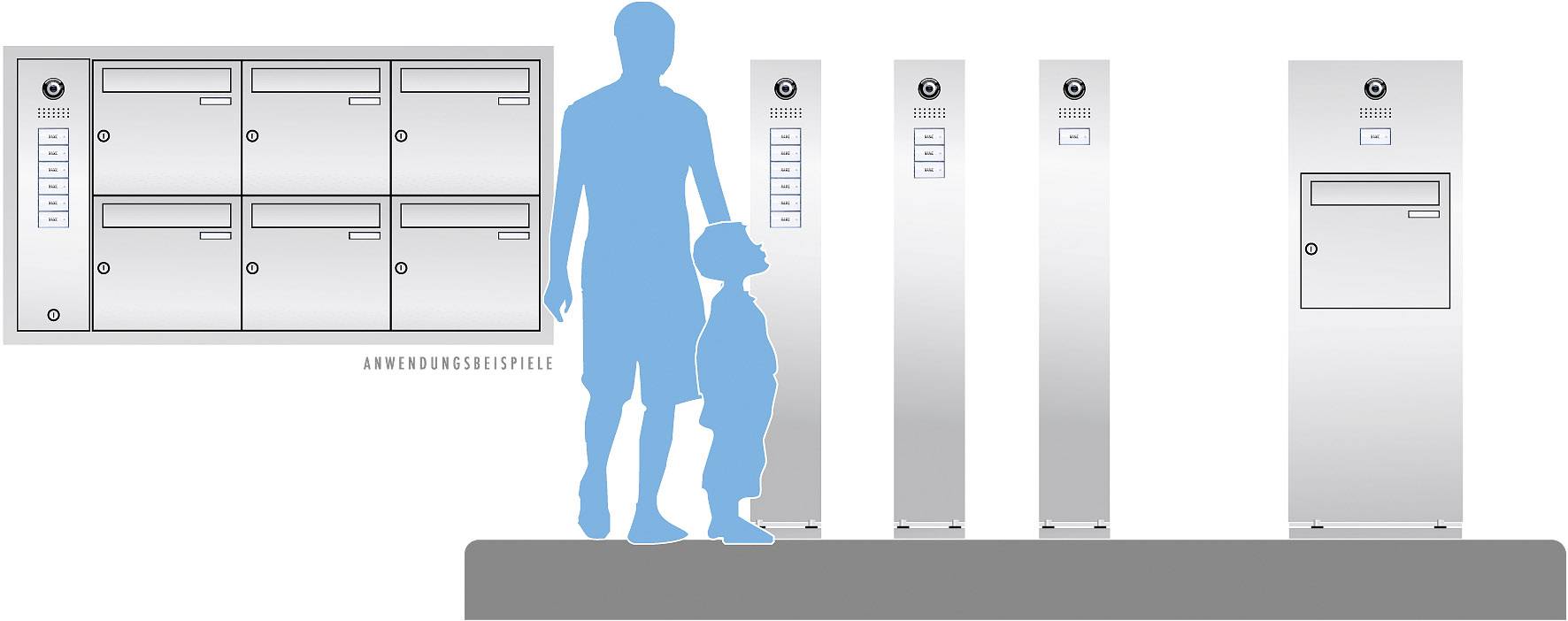

Door intercom module for universal installation for 1 to 6-family houses. For installation in letter boxes, pillars, pillars, individual inputs or to modernize old door intercom systems. It can be connected to 1 to 6 doorbell button. For the supply voltage is a 15 V DC power supply is required, order no. 552028. Incl. high-quality wide-angle camera (135° horizontal/100° vertical) with infrared night vision. Connection to existing door opener is possible. Sensor-controlled lighting Automatic for doorbell button. For audio and video intercom systems of the VISTADOOR and VISTUS system. Up to 4 indoor units by bell button can be connected. An external camera possible, order no. 1277042. Temperature range: -20 to +50 °C
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x color camera module with connection cable
- 1x speaker with connection cable
- 1x microphone with connection cable
- 1x connection box
- 1x light sensor with connection cable

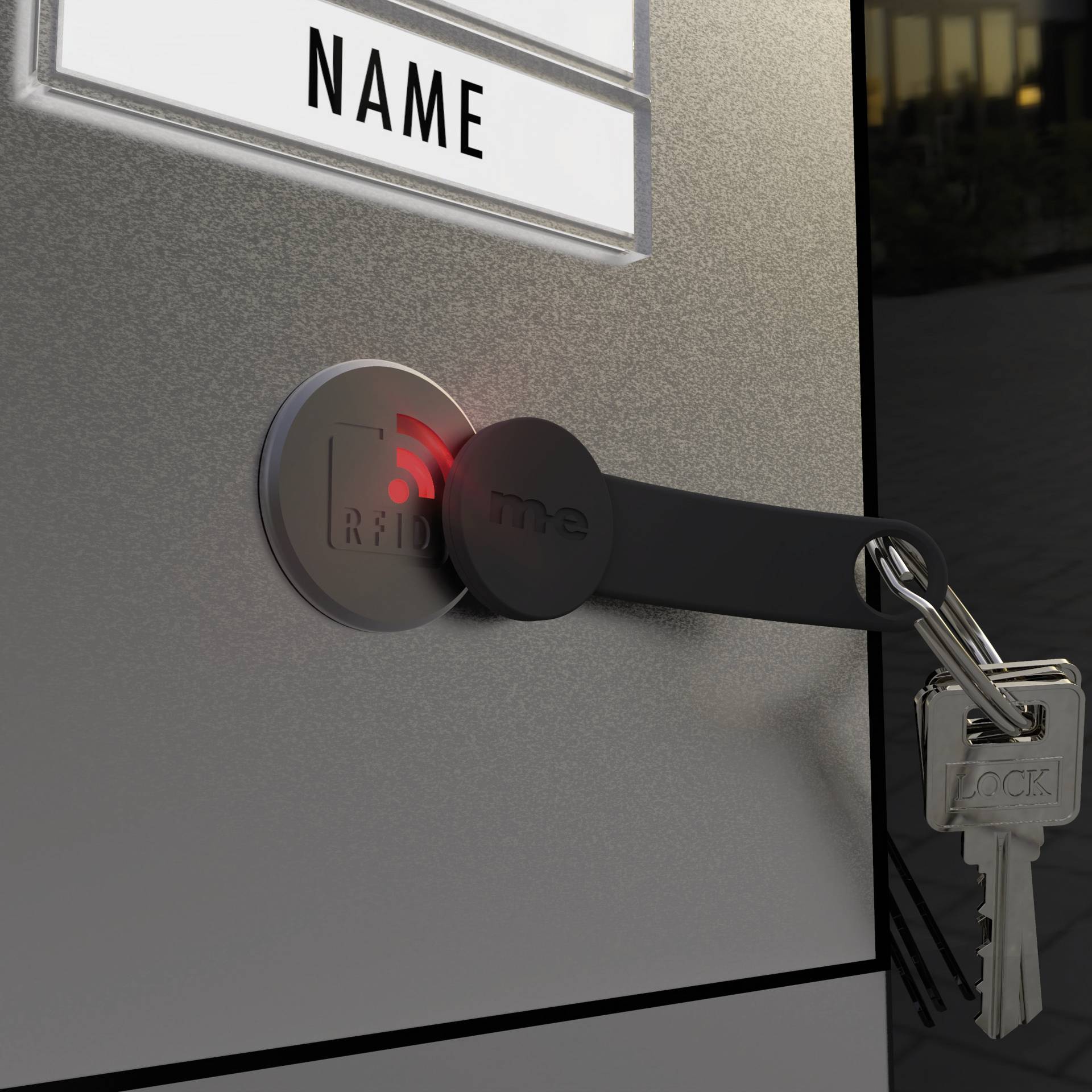

- RFID module
- 8x dongle.
Hints
For connection to VISTA-DOOR and VISTUS indoor units.
