MAAS Elektronik KCB-3000 3035 CB radio
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 104.99 / piece)
€ 104.99
incl. VAT
Only 5 Piece(s) available
Highlights & Details
MAAS Elektronik KCB-3000 CB radio
- Multi-channel device, can easily switch at the national borders
- Power supply 12 or 24 Volt direct voltage (can also be used in older trucks without converters)
- Large LC-display with 7 possible color settings, can be dimmed
- Automatic or manually adjustable noise limiter
- Key-lock (lock)
- Integrated ANL noise suppression
- Channel 9/19 switch
- Vox function for voice control transmission internal and external
- Channel search (scan)
- Up-/down keys for channel selection
Technical specifications
- Product type
CB radio
- Features
12 V
Speaker/microphone jack
Microphone jack
Automatic squelch
Squelch
Scan mode
VOX
- Transfer type
Radio
- Frequency
27 MHz
- Channels
40 FM / 40 AM
80 FM / 40 AM
- Transmitter power
4 W
- Width
189 mm
- Height
57 mm
- Depth
74 mm
- Weight
630 g
- Dim
(W x H x D) 189 x 57 x 74 mm
Documents & Downloads
Datasheet
Datasheet 3349319 MAAS Elektronik KCB-3000 3035 CB radio
User & Safety Instructions
User & Safety Instructions 3349319 MAAS Elektronik KCB-3000 3035 CB radio
Description
MAAS KCB-3000 CB-radio set multi-standard with vocal microphone and headset connection. Built-in front speaker with very good loud reproduction. Due to its very low installation depth, the device fits into any DIN slot and is suitable for surface or under mounting. The new MAAS KCB-3000 comes with voice-controlled Vox microphone, which can be set in several stages in response sensitivity and response delay. In addition, one can also have microphone fittings with 2 pin. Connect the Kenwood circuit to the front of the device (not included). A fully equipped CB radio for cars or trucks, suitable for 12 volt and 24 volt power supply. The device has a large illuminated LCD-display, on which all the important information is displayed clearly. The color of the background lighting can be changed in 7 stages or switched off completely.
This text is machine translated.
This text is machine translated.
Features
- Control for noise limiter and volume
- Microphone with built-in channel selection keys and Vox function

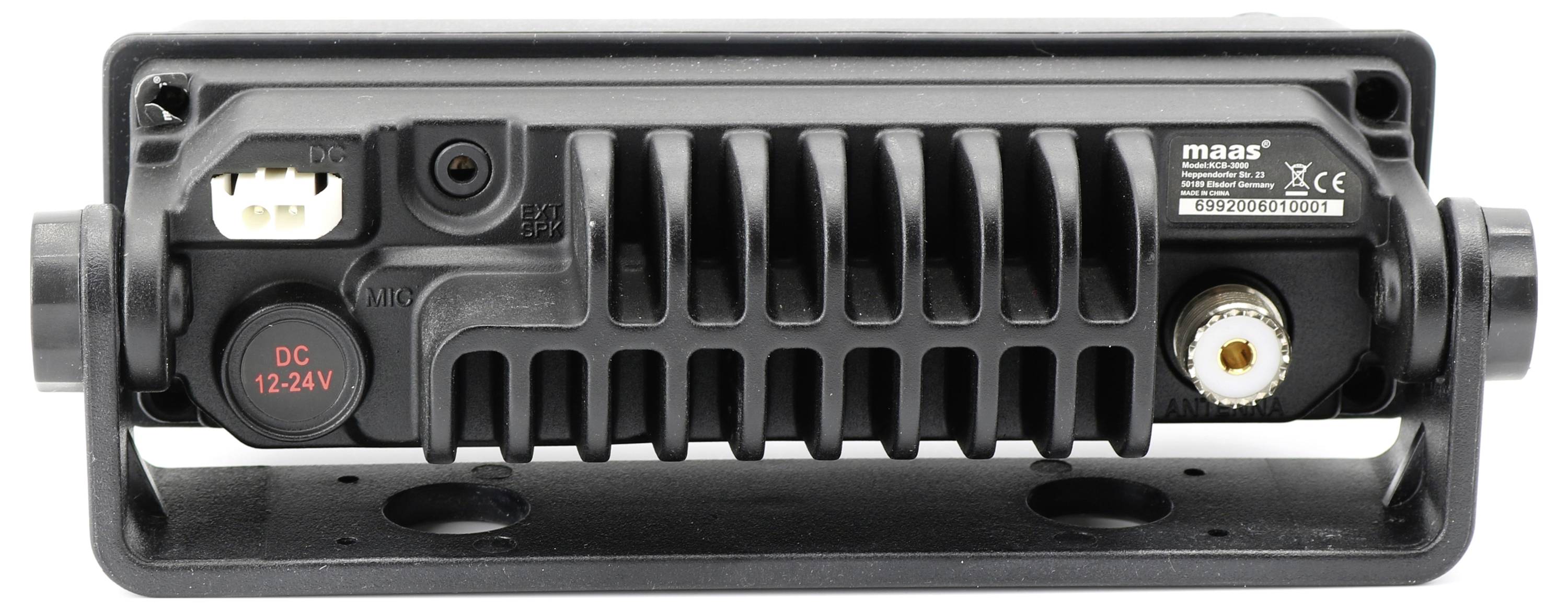

- Connections for antenna, external speakers and microphone fittings (Kenwood standard) available
- Connection for microphone fittings and loud speakers (Kenwood standard: 2.5 mm jack socket for speakers - 3.5 mm microphone / PTT)
- Power cable can be removed

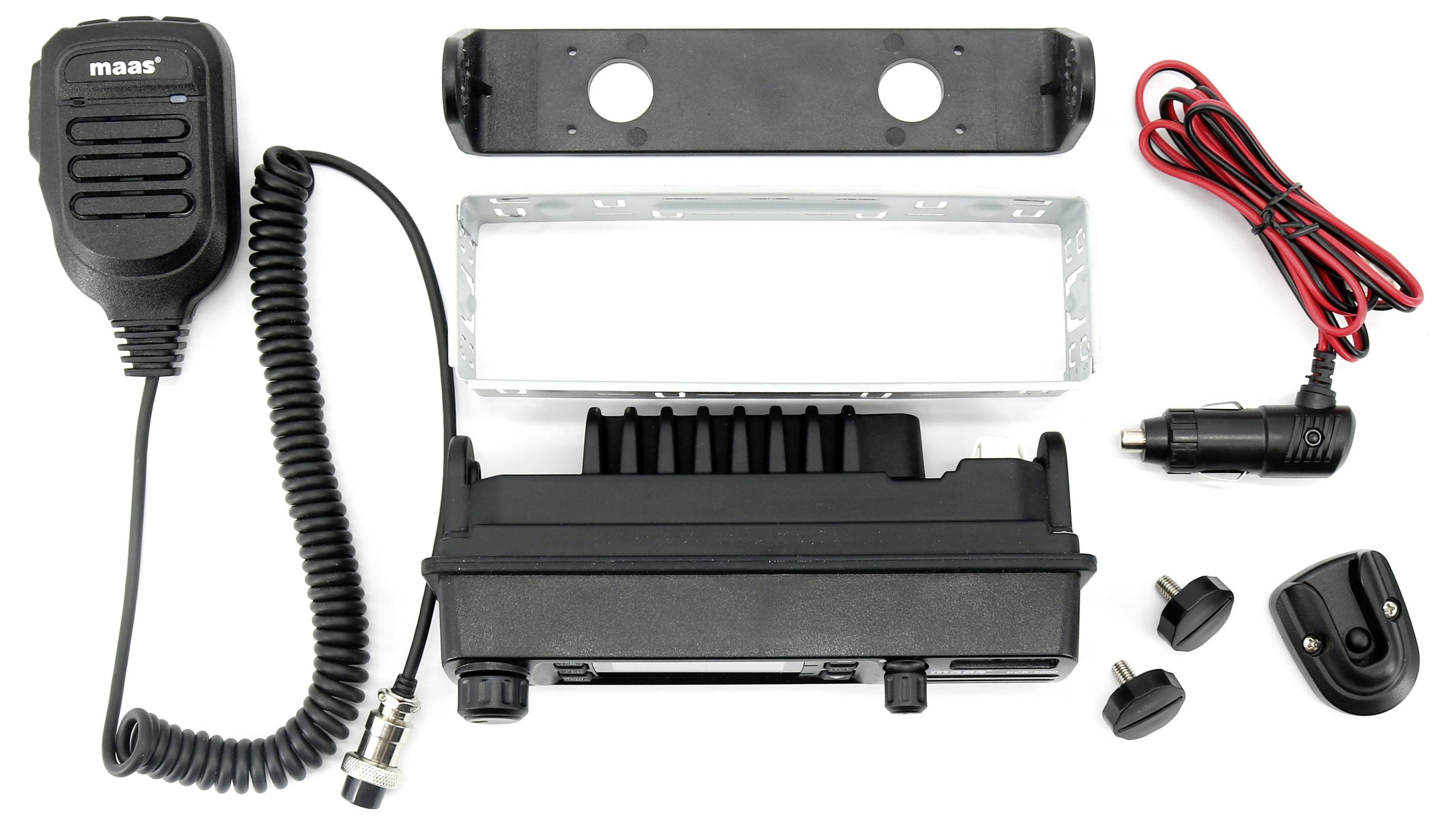

Scope of delivery
- MAAS Elektronik KCB-3000 CB radio
- Bracket with knurled screws for normal mounting
- DIN installation frame
- Power cable with cigarette lighter plug
- Power cable for permanent installation

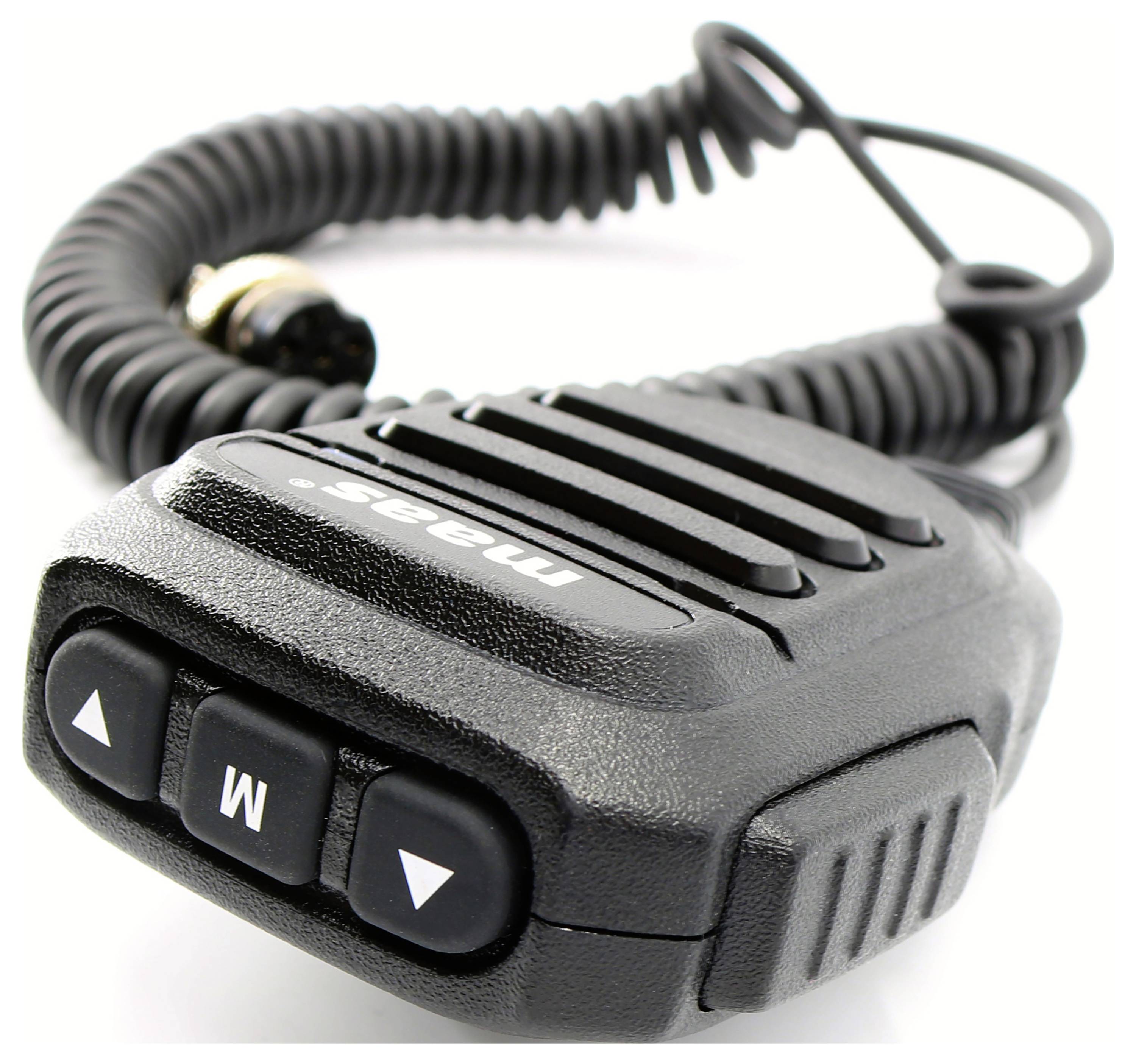

- Vox microphone 6-pin (GDCH standard) with channel selection buttons
- User manual
Hints
The KCB-3000 has, as opposed to similar equipment on the market, a 6-pin GDCH connection for microphones, as well as a 2 pin. Socket for speakers and microphone sets with "Kenwood" configuration, which is also really compatible (especially adequate LF signal).
What kind of CB Radio are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
