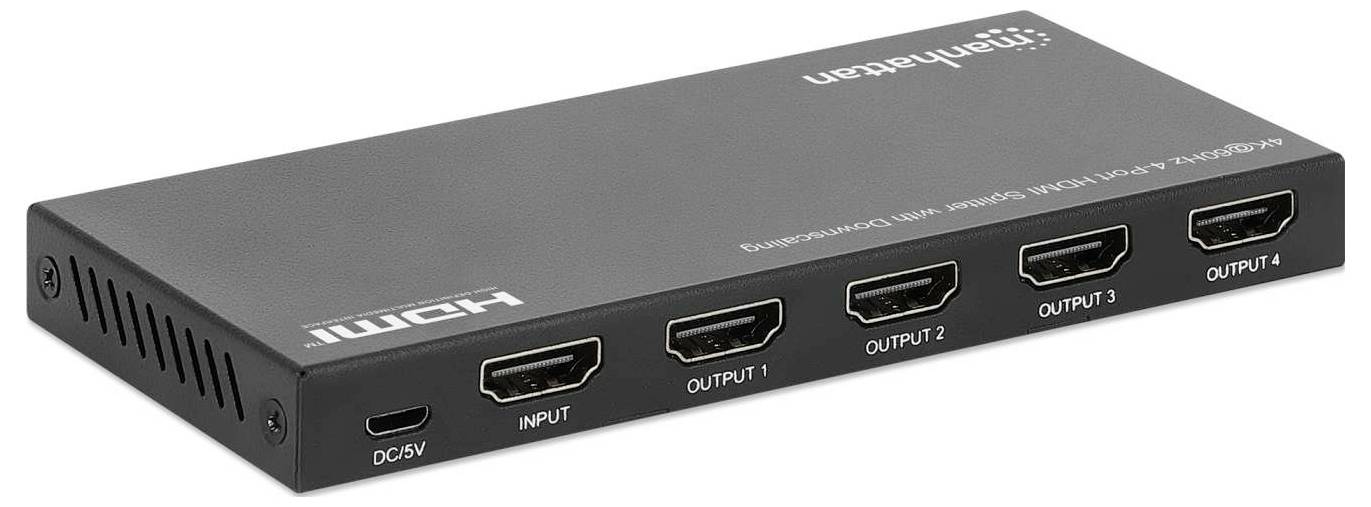

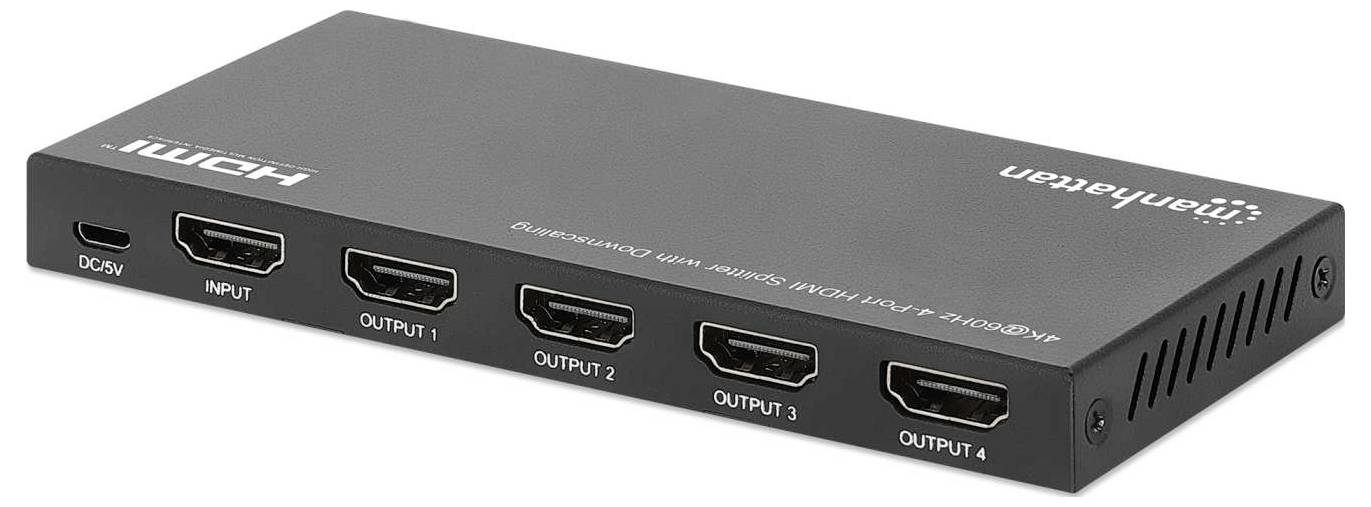

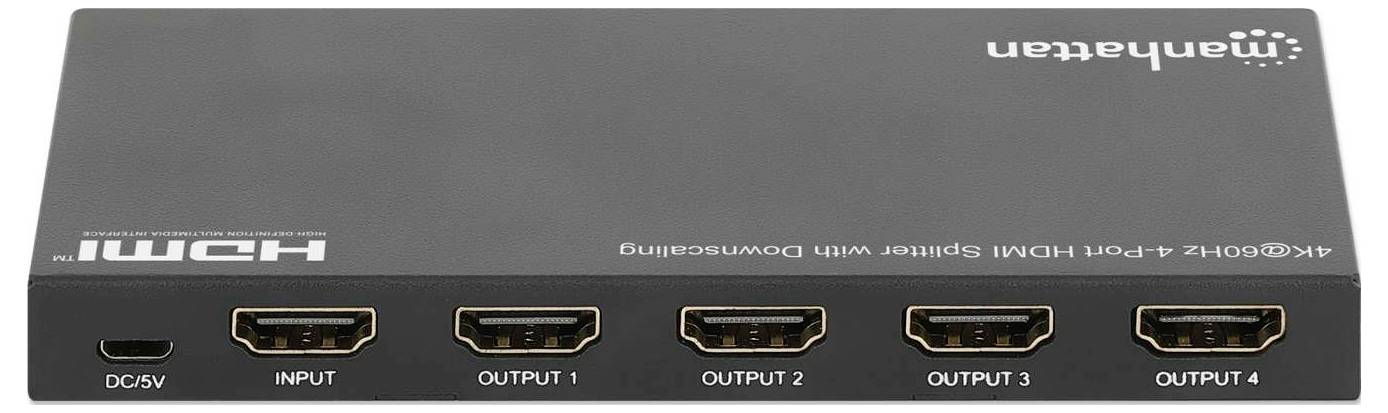

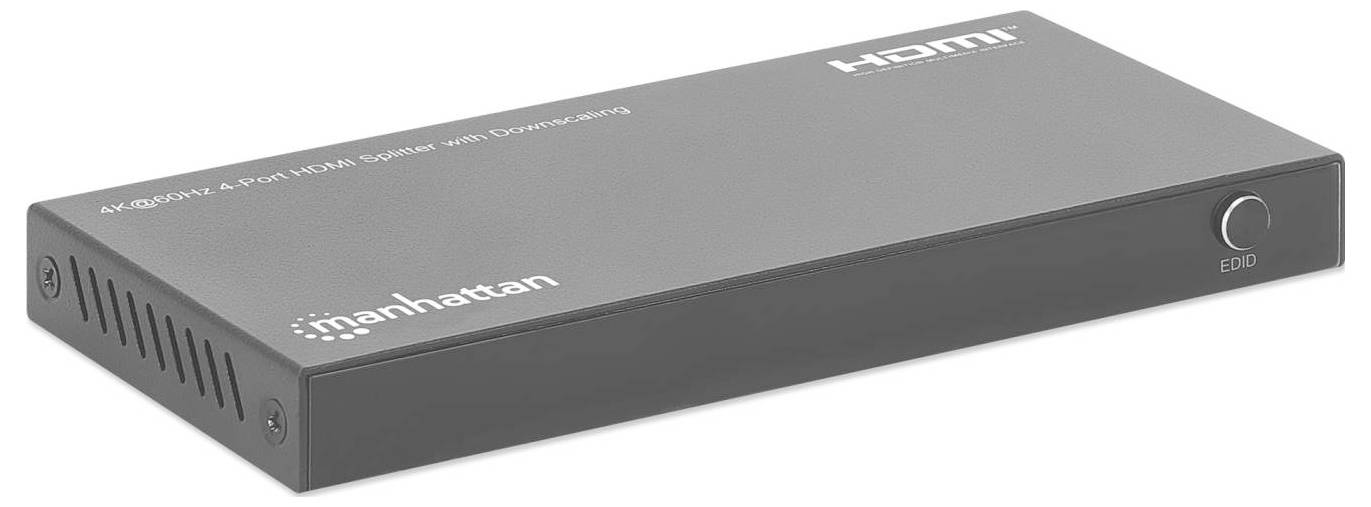

Name: Manhattan 208369 HDMI splitter + LED indicator lights, Ultra HD compatibility 3840 x 2160 p Black
Brand: Manhattan
SKU: 3338829
Availability: BackOrder

Manhattan 208369 HDMI splitter + LED indicator lights, Ultra HD compatibility 3840 x 2160 p Black-0

Manhattan 208369 HDMI splitter + LED indicator lights, Ultra HD compatibility 3840 x 2160 p Black-1

Manhattan 208369 HDMI splitter + LED indicator lights, Ultra HD compatibility 3840 x 2160 p Black-2

Manhattan 208369 HDMI splitter + LED indicator lights, Ultra HD compatibility 3840 x 2160 p Black-3

Manhattan 208369 HDMI splitter + LED indicator lights, Ultra HD compatibility 3840 x 2160 p Black-4

Manhattan 208369 HDMI splitter + LED indicator lights, Ultra HD compatibility 3840 x 2160 p Black-5

Manhattan 208369 HDMI splitter + LED indicator lights, Ultra HD compatibility 3840 x 2160 p Black-6

Manhattan 208369 HDMI splitter + LED indicator lights, Ultra HD compatibility 3840 x 2160 p Black-7

1/8

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 51.99 / piece)

€ 51.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Manhattan 4K@60Hz 4-port HDMI splitter with downscaling Extends one HDMI input into four HDMI outputs (1x4), EDID switch for downscaling 18G, black

Video port type: HDMI video ports Number: 5 black
3840 x 2160 pixels
Maximum working distance: 5 m.
Bandwidth 600 MHz
High Dynamic Range video (HDR) support
1 pieces(s)

Technical specifications

HDMI version 2.0
HD type 4K Ultra HD
Data transfer rate 18 Gbps
Downscaler: Yes

Product type: HDMI splitter

Supported monitors: 4

No. of inputs: 4 x

Interfaces (input): HDMI™

No. of outputs: 1 x

Interfaces (output): HDMI™

Resolution (max.): 3840 x 2160 p

Power supply (LOV): via USB

Distributor/switch features: + LED indicator lights
Ultra HD compatibility

Factory colour: Black

Weight: 87 g

Width: 62 mm

Height: 15 mm

Depth: 136 mm

Dim: (W x H x D) 62 x 15 x 136 mm

Cable length: 0.8 m

Display resolution: 3840 x 2160 Pixel

HDR support: Yes

Material (details): Plastic

Power consumption (ON): 5 W

Power supply (details): 5 V

UKCA: yes

Operating temperature (T-T): 0 - 70 °C

Colour depth: 36 Bit

Maximum operating distance: 5 m

Quantity per pack: 1 Stück(e)

USB powered: yes

Extended display identification data (EDID): yes

Manual: yes

Bandwidth: 600 MHz

HDCP: yes

Operating relative humidity (H-H): 5 - 90 %

Storage temperature (T-T): -20 - 80 °C

3D: yes

Package weight: 260 g

Plug and Play: yes

Video ports quantity: 5

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3338829 Manhattan 208369 HDMI splitter + LED indicator lights, Ultra HD compatibility 3840 x 2160 p Black

Warranty Terms

Warranty Terms 3338829 Manhattan 208369 HDMI splitter + LED indicator lights, Ultra HD compatibility 3840 x 2160 p Black

Description

HDMI splitter for splitting an AV signal to four screens in 4K60 and HDR; as well as down scaler for individual resolutions

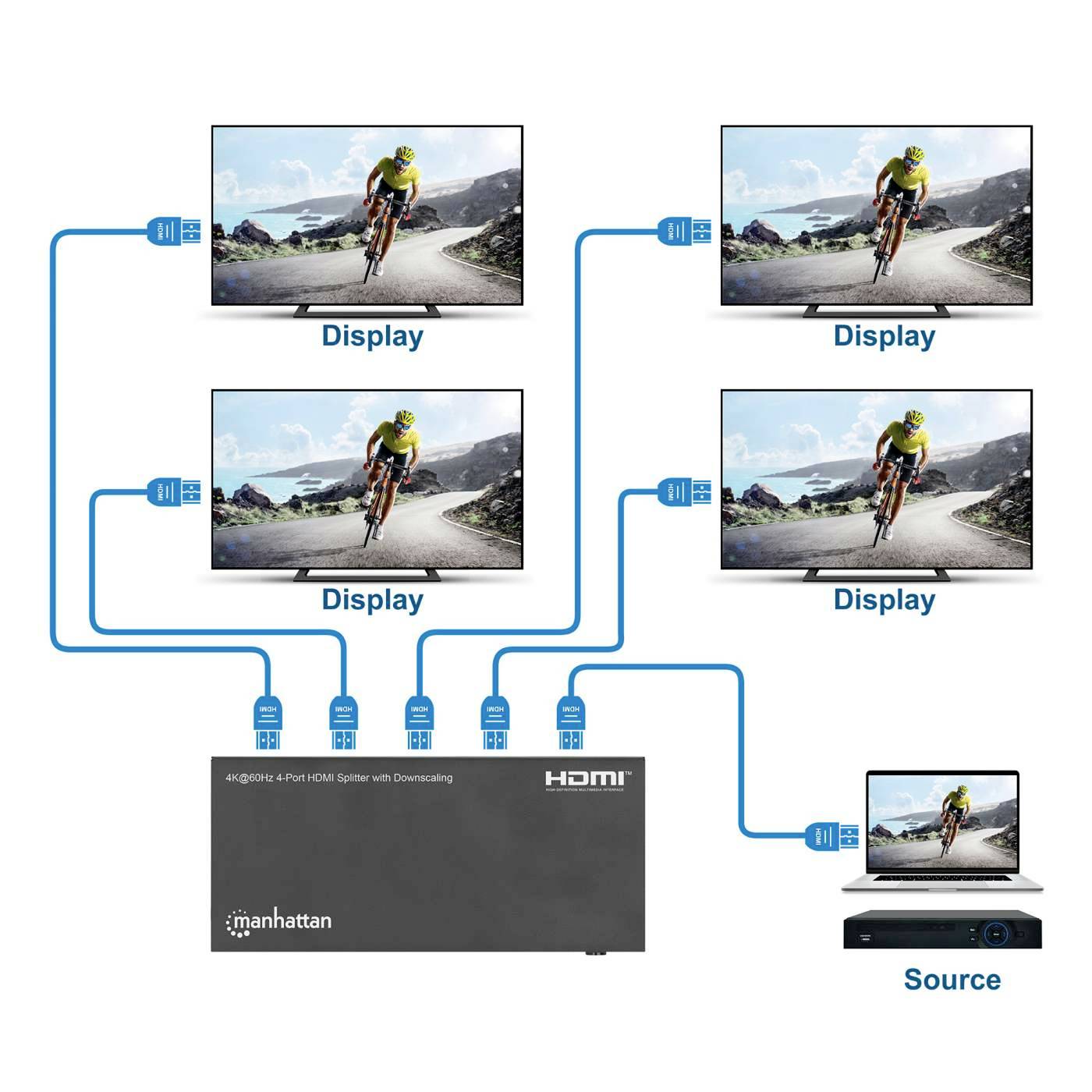

This compact Manhattan HDMI 1x4 splitter distributes a single audio/video signal from an HDMI playback device to four displays without loss of quality.

Flexible solution for many A/V applications

For trade fairs, video conferences, presentations, retail and digital signage applications, this splitter Ideal is especially useful for distributing an HDMI signal and for devices that are housed in a separate, far away room or cabinet. If you want to connect even more displays, you can connect up to three splitters in series. A smart, integrated EDID management switch takes care of automatic image optimization on all connected displays. The 4K input signal can be scaled down to 1080p for individual resolutions in combined applications from old and new screens.

Easy installation and high compatibility

This splitter provides reliable performance by completely conforming to HDMI 2.0 and HDCP 2.3 standards. Simply connect three HDMI cables (not included) and the Micro USB power cable to use this low-cost UHD 4K solution - no software/hardware configuration or complicated settings are required. Backward compatibility with 4K@30Hz and 1080p displays guarantees operation with any source or destination device.

This text is machine translated.

Features

Distributes a single HDMI audio/video signal on four HDMI-screens
Resolutions up to ultra high definition (UHD) 4K@60Hz (3840×2160)

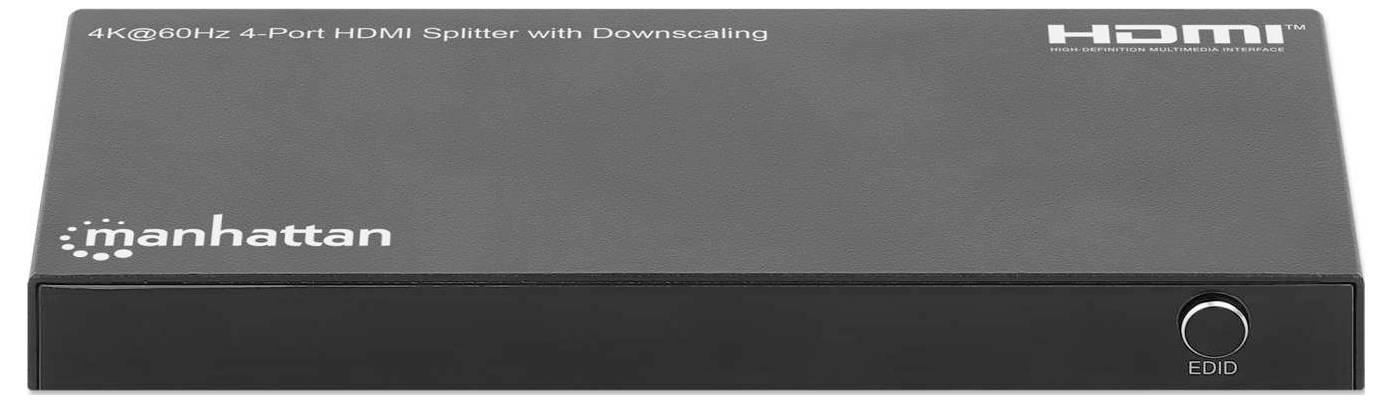

EDID switch allows you to downscale the 4K input signal to 1080p for individual resolutions in combined applications from old and new screens
High Dynamic Range (HDR) for perfect contrast and brilliant colors
4:4:4 Chroma subsampling
Up to 18 Gbit/s total bandwidth with 6 Gbit/s per channel at 600 MHz
Fully backward compatible with 4K@30Hz, 1080p and 720p displays
EDID switch for automatic image optimization provides for correct adjustment of native resolution and image rate
Up to three splitter can be cascaded for the connection of up to ten screens
36-bit Deep Colour (12 bits per channel)
Supports 3D video
Supports compressed DTS-HD Master audio, uncompressed LPCM 8-channel audio (7.1 surround sound) and Dolby TrueHD as well as 32-channel audio
Compatible with any HDMI device – TV, projector, monitor, notebook, PC, AV receiver, streaming box, games console, PlayStation® (PS4/PS5), Xbox® (One/Series S/Series X), Blu-ray player and more
Ideal for digital signage at retail and trade fair stands or for multi-display presentations in conference rooms and sports bars
Plug & Play installation; no setup required
HDCP 2.3 compliant
Rubber feet for non-slip use on all surfaces

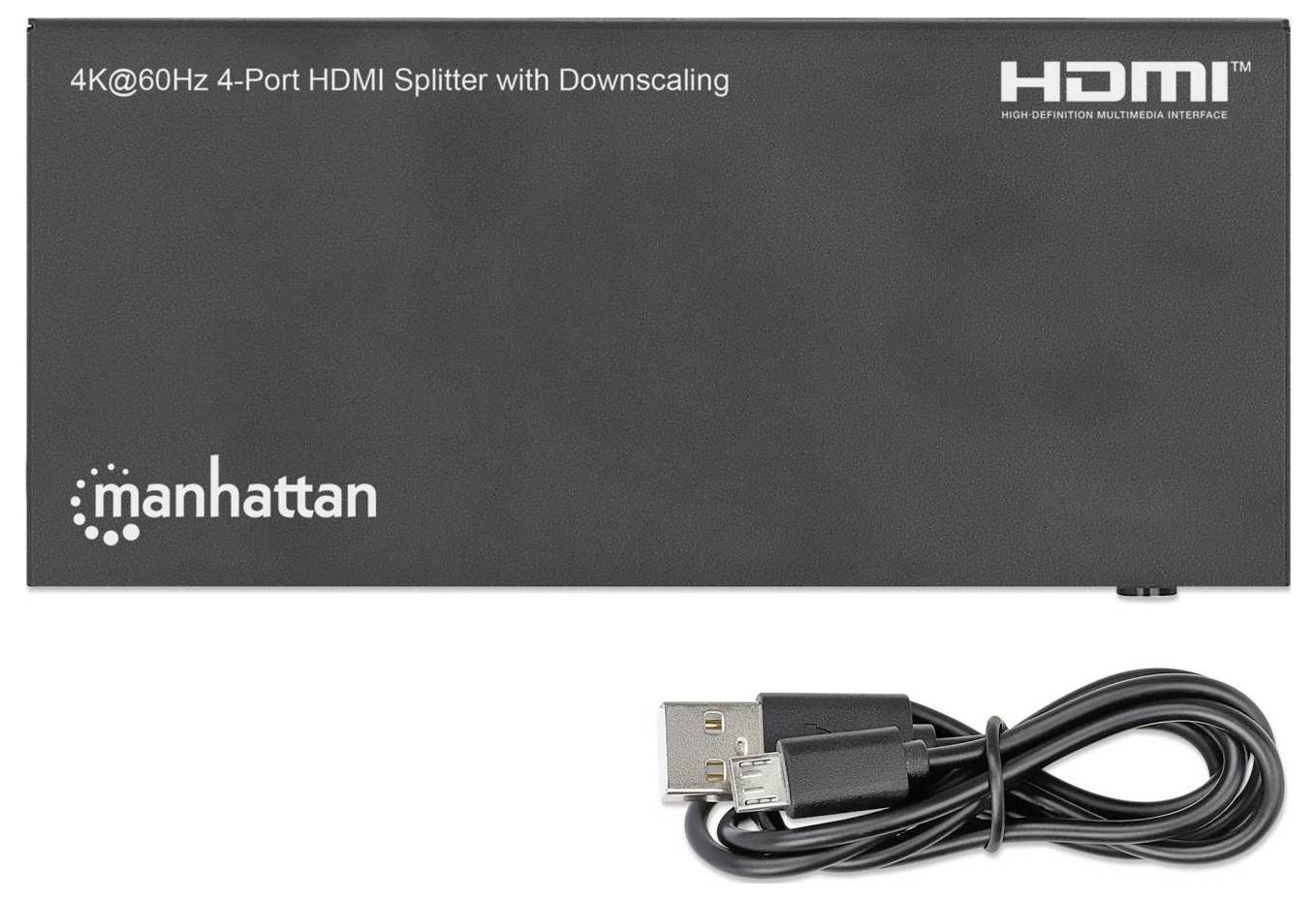

Micro USB to USB A power cable included

Scope of delivery

4K@60Hz 4-port HDMI splitter with downscaling
Micro-USB to USB A power cable, 0.8 m
User manual.

Description

Features

Distributes a single HDMI audio/video signal on four HDMI-screens
Resolutions up to ultra high definition (UHD) 4K@60Hz (3840×2160)
EDID switch allows you to downscale the 4K input signal to 1080p for individual resolutions in combined applications from old and new screens
High Dynamic Range (HDR) for perfect contrast and brilliant colors
4:4:4 Chroma subsampling
Up to 18 Gbit/s total bandwidth with 6 Gbit/s per channel at 600 MHz
Fully backward compatible with 4K@30Hz, 1080p and 720p displays
EDID switch for automatic image optimization provides for correct adjustment of native resolution and image rate
Up to three splitter can be cascaded for the connection of up to ten screens
36-bit Deep Colour (12 bits per channel)
Supports 3D video
Supports compressed DTS-HD Master audio, uncompressed LPCM 8-channel audio (7.1 surround sound) and Dolby TrueHD as well as 32-channel audio
Compatible with any HDMI device – TV, projector, monitor, notebook, PC, AV receiver, streaming box, games console, PlayStation® (PS4/PS5), Xbox® (One/Series S/Series X), Blu-ray player and more
Ideal for digital signage at retail and trade fair stands or for multi-display presentations in conference rooms and sports bars
Plug & Play installation; no setup required
HDCP 2.3 compliant
Rubber feet for non-slip use on all surfaces
Micro USB to USB A power cable included
