Name: MEAN WELL GST36E12-P1J Mains PSU (fixed voltage) 12 V DC 3000 mA 36 W
Brand: MEAN WELL
SKU: 1439200
Availability: InStock

Technical specifications

Product type: Mains PSU (fixed voltage)

Type: Synchronised

Max. output current: 3000 mA

Output voltage: 12 V DC

Output current (max.) - rounded: 3 A

Output: 5.5/2.1 coaxial connector

Input voltage: 115 V AC
230 V AC

: 36 W

Dim: (L x W x H) 105 x 75 x 60 mm

No. of outputs: 1 x

No. of inputs: 1 x

Input voltage (max.): 264 V AC

Min. input voltage: 85 V AC

Weight: 209 g

Width: 75 mm

Height: 60 mm

Length: 105 mm

Type: GST36E12-P1J

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1439200 MEAN WELL GST36E12-P1J Mains PSU (fixed voltage) 12 V DC 3000 mA 36 W

User & Safety Instructions

User & Safety Instructions 1439200 MEAN WELL GST36E12-P1J Mains PSU (fixed voltage) 12 V DC 3000 mA 36 W

Information

Information 1439200 MEAN WELL GST36E12-P1J Mains PSU (fixed voltage) 12 V DC 3000 mA 36 W

Warranty Terms

Warranty Terms 1439200 MEAN WELL GST36E12-P1J Mains PSU (fixed voltage) 12 V DC 3000 mA 36 W

Description

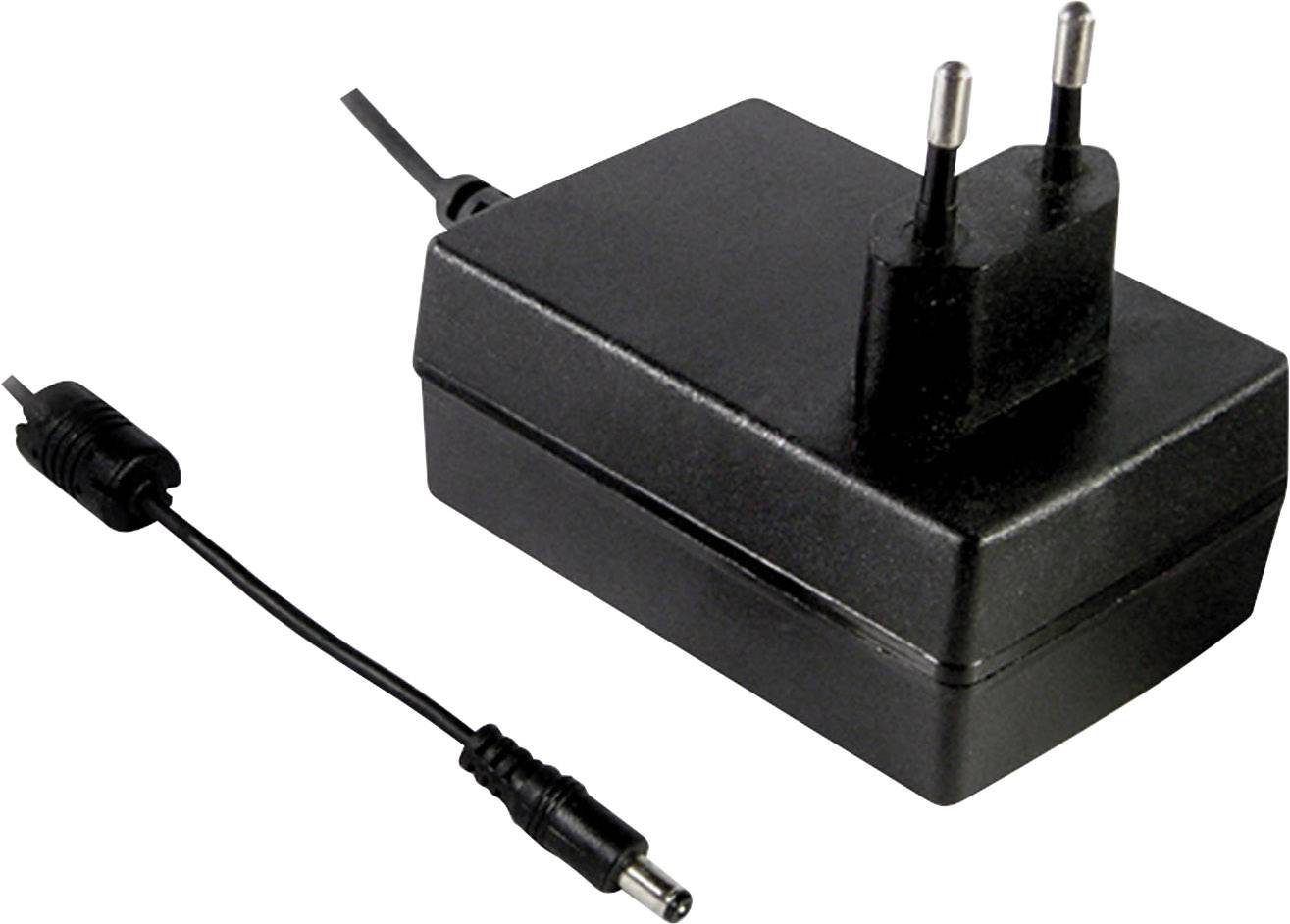

Universal plug-in switching power supply with europlug, complies with energy efficiency level VI (DOE). It serves as a power supply for applications in consumer electronics, telecommunications, office equipment and industrial applications.

Features

Plug-in switching power supply with europlug
universal input
overload protection, pulsing hiccup shutdown, auto recovery
protections: short circuit/over load/over voltage
insulation class II
low no load power consumption
energy efficiency level VI (DOE)

Description

Universal plug-in switching power supply with europlug, complies with energy efficiency level VI (DOE). It serves as a power supply for applications in consumer electronics, telecommunications, office equipment and industrial applications.
