MegaSat 0600153 SAT multiswitch Inputs (multiswitches): 9 (8 SAT/1 terrestrial) No. of participants: 16
EAN:
Part number:
Item no:
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
Only 1 Piece(s) available

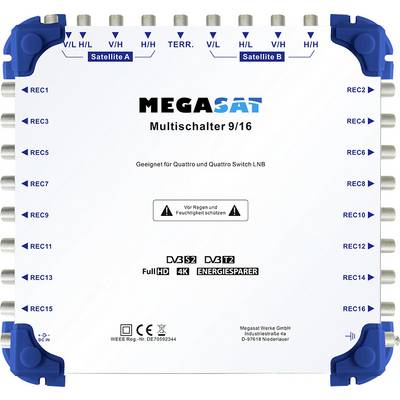

MegaSat 0600153 Satblock distribution 9 inputs 16 outputs
Highlights & Details
- Distribution of satellite signals to several receivers
- Suitable for receiving two satellites and for up to 16 subscribers
Technical specifications
- Product type
SAT multiswitch
- Type (active/passive)
Active
- Inputs (multiswitches)
9 (8 SAT/1 terrestrial)
- Participants
16
- Quad LNB compatibilty
Yes
- Min. frequency
950 MHz
- Max. frequency
2250 MHz
- Width
215 mm
- Height
50 mm
- Depth
215 mm
- Input voltage
90-260 V
- Weight
696 g
- UKCA
not relevant
- Number of inputs
9 Eingänge
- Number of outputs
16 Ausgänge
- Operating temperature (T-T)
-20 - 50 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3556340 MegaSat 0600153 SAT multiswitch Inputs (multiswitches): 9 (8 SAT/1 terrestrial) No. of participants: 16
Description
The multi-switch is suitable for receiving two satellites and for up to 16 subscribers.
A multi-switch enables you the simultaneous reception of several satellites via one coaxial cable. One needs one LNB per satellite. It is irrelevant whether the second LNB is installed on the same satellite mirror (multifeed) or on a second mirror. The signals are bundled by the multi-switch and forwarded to the connected receiver.
The MegaSat multi-switch series is equipped with the latest technology. All switches are Quad LNB (Quattro-Switch LNB) compatible and enable you to integrate the multi-switch later also in an existing system.
Low attenuation and high isolation of the reception levels ensure the highest picture and sound quality even with long cable paths.
This text is machine translated.
A multi-switch enables you the simultaneous reception of several satellites via one coaxial cable. One needs one LNB per satellite. It is irrelevant whether the second LNB is installed on the same satellite mirror (multifeed) or on a second mirror. The signals are bundled by the multi-switch and forwarded to the connected receiver.
The MegaSat multi-switch series is equipped with the latest technology. All switches are Quad LNB (Quattro-Switch LNB) compatible and enable you to integrate the multi-switch later also in an existing system.
Low attenuation and high isolation of the reception levels ensure the highest picture and sound quality even with long cable paths.
This text is machine translated.
Scope of delivery
- MegaSat multi-switch 9/16
- Power supply unit
- User manual
