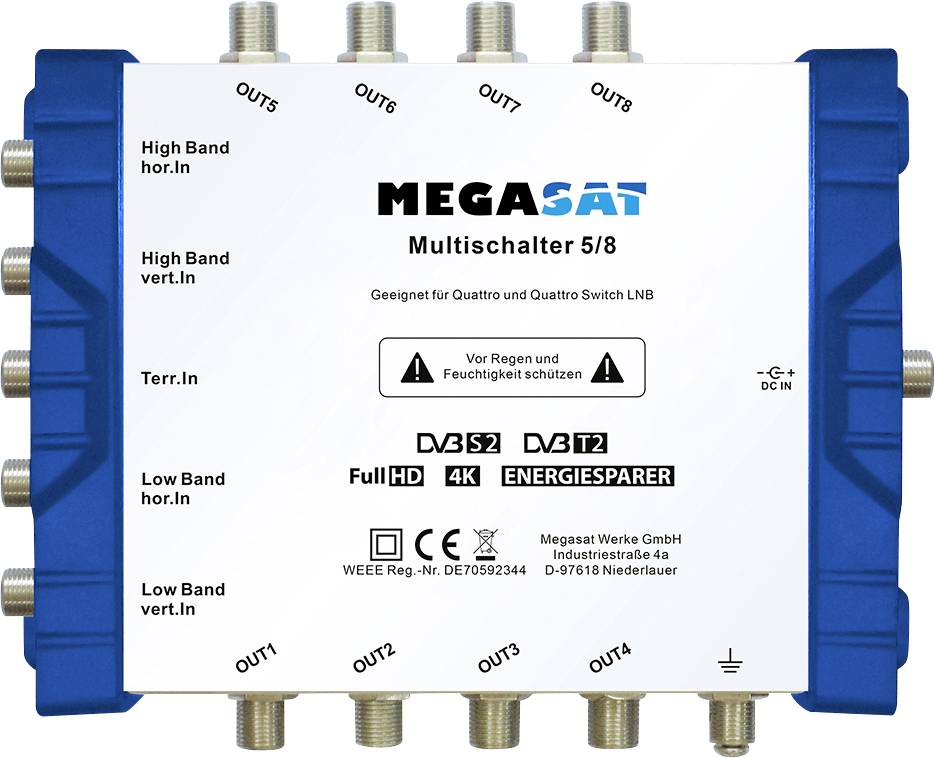

MegaSat 0600150 SAT multiswitch Inputs (multiswitches): 5 (4 SAT/1 terrestrial) No. of participants: 8
EAN:
Part number:
Item no:
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
MegaSat multi-switch
Highlights & Details
- Distribution of satellite signals to several receivers
- Suitable for receiving a satellite and for up to 8 subscribers
Technical specifications
- Product type
SAT multiswitch
- Type (active/passive)
Active
- Inputs (multiswitches)
5 (4 SAT/1 terrestrial)
- Participants
8
- Quad LNB compatibilty
Yes
- Min. frequency
950 MHz
- Max. frequency
2250 MHz
- SAT damping
2 dB
- Terrestrial damping
0 dB
- Width
127 mm
- Height
50 mm
- Depth
155 mm
- Input voltage
90 - 260 V
- Weight
325 g
- UKCA
yes
- Number of inputs
5 Eingänge
- Number of outputs
8 Ausgänge
- Operating temperature (T-T)
-20 - 50 °C
- Output voltage
100 dBμV
- Input frequency range (terrestrial)
47 - 862 MHz
- Input frequency range (satellite)
950 - 2250 MHz
- Decoupling (inputs)
30 dB
- Power consumption
800 mA
- Package weight
818 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3556333 MegaSat 0600150 SAT multiswitch Inputs (multiswitches): 5 (4 SAT/1 terrestrial) No. of participants: 8
Description
Multi-switch in the best quality with the latest technology
A multi-switch enables you the simultaneous reception of several satellites via one coaxial cable. One needs one LNB per satellite. It is irrelevant whether the second LNB is installed on the same satellite mirror (multifeed) or on a second mirror. The signals are bundled by the multi-switch and forwarded to the connected receiver.
The MegaSat multi-switch series is equipped with the latest technology. All switches are Quad LNB (Quattro-Switch LNB) compatible and enable you to integrate the multi-switch later also in an existing system.
Low attenuation and high isolation of the reception levels ensure the highest picture and sound quality even with long cable paths.
This text is machine translated.
A multi-switch enables you the simultaneous reception of several satellites via one coaxial cable. One needs one LNB per satellite. It is irrelevant whether the second LNB is installed on the same satellite mirror (multifeed) or on a second mirror. The signals are bundled by the multi-switch and forwarded to the connected receiver.
The MegaSat multi-switch series is equipped with the latest technology. All switches are Quad LNB (Quattro-Switch LNB) compatible and enable you to integrate the multi-switch later also in an existing system.
Low attenuation and high isolation of the reception levels ensure the highest picture and sound quality even with long cable paths.
This text is machine translated.
Features
- High-quality satellite multi-switch including terrestrial antenna input
- Highest picture and sound quality – suitable for receiving full-HD and 4K
- Low power consumption through the latest power supply technology
- Reception from one satellite for up to 8 subscribers
Scope of delivery
- MegaSat multi-switch 5/8
- Power supply unit
- User manual
