MegaSat 0600155 SAT multiswitch Inputs (multiswitches): 17 (16 SAT/1 terrestrial) No. of participants: 16
EAN:
Part number:
Item no:
Number
Total (€ 184.87 / piece)
€ 184.87
plus VAT.

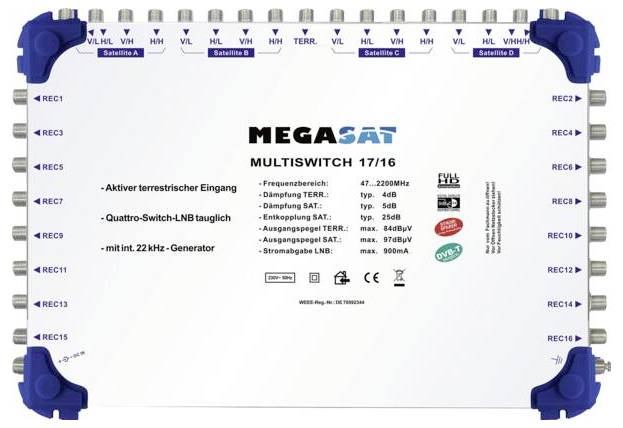

MegaSat 0600155 Satblock distribution 18 inputs 16 outputs
Highlights & Details
- Distribution of satellite signals to several receivers
- Suitable for the reception of four satellites and for up to 16 subscribers
Technical specifications
- Product type
SAT multiswitch
- Type (active/passive)
Active
- Inputs (multiswitches)
17 (16 SAT/1 terrestrial)
- Participants
16
- Quad LNB compatibilty
Yes
- Min. frequency
950 MHz
- Max. frequency
2250 MHz
- SAT damping
3 dB
- Terrestrial damping
3 dB
- Width
352 mm
- Height
50 mm
- Depth
288 mm
- Input voltage
90 - 260 V
- Number of inputs
18 Eingänge
- Number of outputs
16 Ausgänge
- Operating temperature (T-T)
-20 - 50 °C
- Decoupling (outputs)
28 dB
- Decoupling (inputs)
25 dB
- Power consumption
2000 mA
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3556344 MegaSat 0600155 SAT multiswitch Inputs (multiswitches): 17 (16 SAT/1 terrestrial) No. of participants: 16
Description
The MegaSat multi-switch 17/16 offers the latest technology for a reliable reception of up to four satellites and simultaneously supplies up to 16 subscribers with crystal-clear TV-signal. Thanks to its high-quality finish and innovative technology it ensures a stable signal distribution with minimum signal loss.
With its Quad-LNB compatibility the multi-switch can be flexibly integrated into existing systems and thus enables a simple extension of your satellite system. The low attenuation and the high level isolation mean that you can enjoy outstanding picture and sound quality - even with long cable paths.
No matter, whether you want to optimize an existing system or setup a new satellite distribution – the MegaSat multi-switch 17/16 impresses through its efficiency, efficiency and easy installation.
Technical data
Frequency range DVB-S/S2 950 - 2250 MHz
Frequency range DVB-T/T2 47 – 862 MHz
Damping DVB-S/S2/S2 3 dB
Damping DVB-T/T2 3 dB
Switching insulation 28 dB
Decoupling DVB-S/S2 28 dB
Decoupling DVB-T/T2 25 dB
100 dBμV. Output level DVB-S/S2
85 dBμV. Output level DVB-T/T2
Power output LNB: Max. 2000 mA
Power supply: AC 90 ~ 260 V, DC 18 V, 47 ~ 63 Hz
Operating temperature -20° C ~ +50° C.
Inputs:
4 × DVB-S/S2 (horizontal high)
4 × DVB-S/S2 (horizontal low)
4 × DVB-S/S2 (vertical high)
4 × DVB-S/S2 (vertical low)
1 × DVB-T/T2
1 × DC in
Outputs:
16 × DVB-S/S2 (for receiver)
This text is machine translated.
With its Quad-LNB compatibility the multi-switch can be flexibly integrated into existing systems and thus enables a simple extension of your satellite system. The low attenuation and the high level isolation mean that you can enjoy outstanding picture and sound quality - even with long cable paths.
No matter, whether you want to optimize an existing system or setup a new satellite distribution – the MegaSat multi-switch 17/16 impresses through its efficiency, efficiency and easy installation.
Technical data
Frequency range DVB-S/S2 950 - 2250 MHz
Frequency range DVB-T/T2 47 – 862 MHz
Damping DVB-S/S2/S2 3 dB
Damping DVB-T/T2 3 dB
Switching insulation 28 dB
Decoupling DVB-S/S2 28 dB
Decoupling DVB-T/T2 25 dB
100 dBμV. Output level DVB-S/S2
85 dBμV. Output level DVB-T/T2
Power output LNB: Max. 2000 mA
Power supply: AC 90 ~ 260 V, DC 18 V, 47 ~ 63 Hz
Operating temperature -20° C ~ +50° C.
Inputs:
4 × DVB-S/S2 (horizontal high)
4 × DVB-S/S2 (horizontal low)
4 × DVB-S/S2 (vertical high)
4 × DVB-S/S2 (vertical low)
1 × DVB-T/T2
1 × DC in
Outputs:
16 × DVB-S/S2 (for receiver)
This text is machine translated.
Scope of delivery
- MegaSat multi-switch 17/16
- Power supply unit
- User manual
