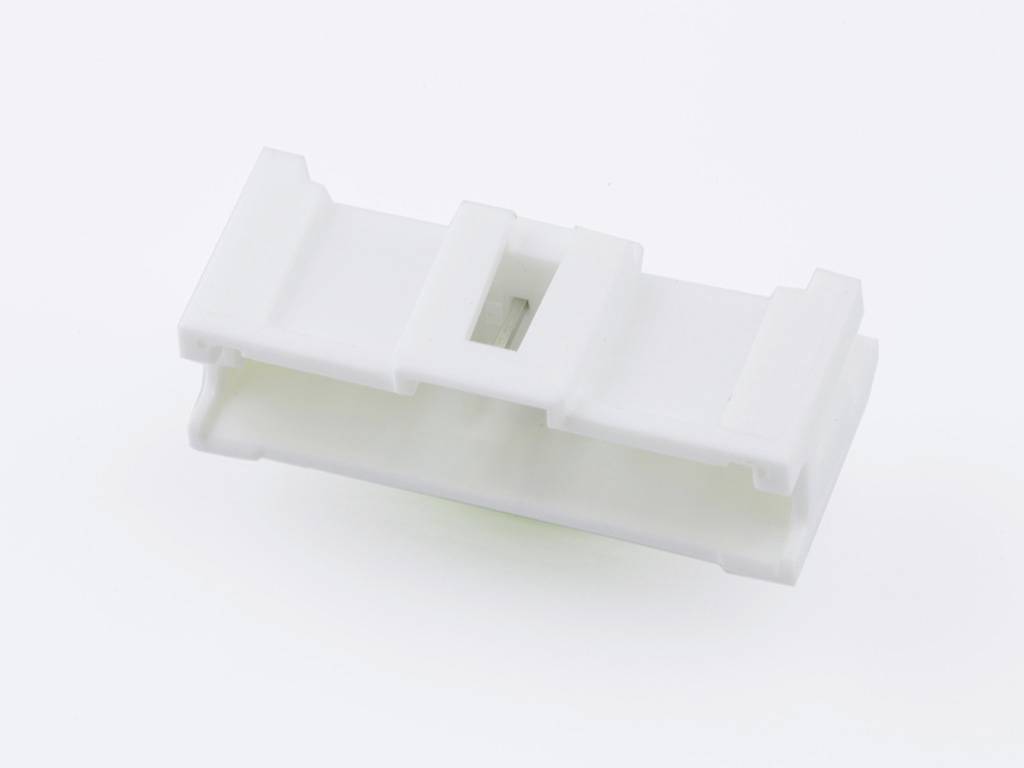

Molex Built-in pin strip (standard) Total number of pins 10 Contact spacing: 2 mm 559351010 1 pc(s) Tray
Product type
Built-in pin strip (standard)
No. of rows
1
CS
2 mm
Total number of pins
10
Packaging type
Tray
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 1.32 / piece)
€ 1.32
incl. VAT
14-day return policy included
Highlights & Details
Micro Class 2.0
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 10
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Tray
- Product type
Built-in pin strip (standard)
- No. of rows
1
- Connector system
wire-to-board
- Features
+ locking mechanism
- CS
2 mm
- Pins per row
1
- Total number of pins
10
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Content
1 pc(s)
- Connection
Soldering
- Case material
Polyester
- Manufacturer part #
559351010
- Factory colour
Ecru
- Board contact surface
Tin
- Connector contact surface
Tin
- Nominal voltage
250 V DC/AC
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
55935-1010
- Engineering Series Name
SGL Hdr RA
- Engineering Series No
55935
Documents & Downloads
Datasheet
Datasheet 2449741 Molex Built-in pin strip (standard) Total number of pins 10 Contact spacing: 2 mm 559351010 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2449741 Molex Built-in pin strip (standard) Total number of pins 10 Contact spacing: 2 mm 559351010 1 pc(s) Tray
Circuit diagramm
Circuit diagramm 2449741 Molex Built-in pin strip (standard) Total number of pins 10 Contact spacing: 2 mm 559351010 1 pc(s) Tray
Description
2.00mm Pitch MicroClasp Wire-to-Board Header, Single Row, Right Angle, 10 Circuits, with PCB Locator
