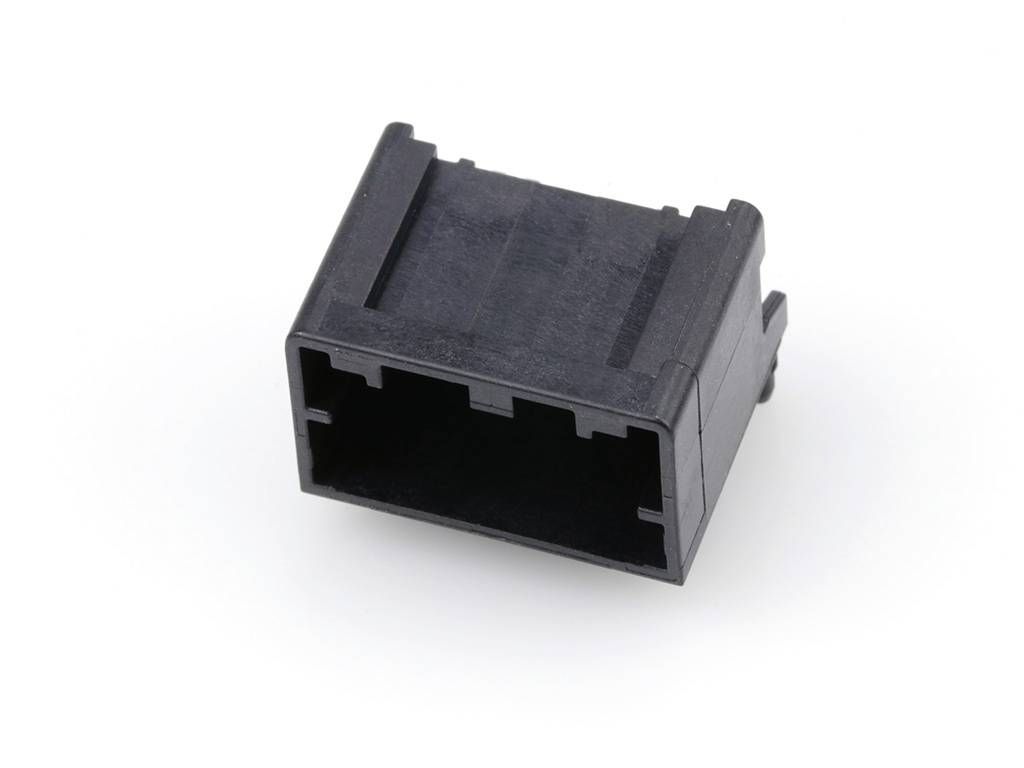

Molex Built-in pin strip (standard) Total number of pins 12 Contact spacing: 2 mm 348260124 1 pc(s) Tray
Product type
Built-in pin strip (standard)
No. of rows
2
CS
2 mm
Total number of pins
12
Packaging type
Tray
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 2.05 / piece)
€ 2.19
-6 %
€ 2.05
incl. VAT
14-day return policy included
Highlights & Details
Mini50
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 12
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Tray
- Product type
Built-in pin strip (standard)
- No. of rows
2
- Features
+ locking mechanism
encodable
- CS
2 mm
- Total number of pins
12
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Content
1 pc(s)
- Connection
Soldering
- Case material
High temperature resistant thermoplastic
- Manufacturer part #
348260124
- Factory colour
Black
- Contact material
Brass
- Board contact surface
Tin
- Connector contact surface
Tin
- Nominal voltage
14 V
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Automotive
- Engineering Part No
34826-0124
- Engineering Series Name
Dual Rw RA Hdr
- Engineering Series No
34826
Documents & Downloads
Datasheet
Datasheet 2448165 Molex Built-in pin strip (standard) Total number of pins 12 Contact spacing: 2 mm 348260124 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2448165 Molex Built-in pin strip (standard) Total number of pins 12 Contact spacing: 2 mm 348260124 1 pc(s) Tray
Circuit diagramm
Circuit diagramm 2448165 Molex Built-in pin strip (standard) Total number of pins 12 Contact spacing: 2 mm 348260124 1 pc(s) Tray
Description
Mini50 Unsealed Right-Angle Header, Dual Row, 12 Circuit, Polarization Option A, 2.80mm Pin Length, Black, Tray
