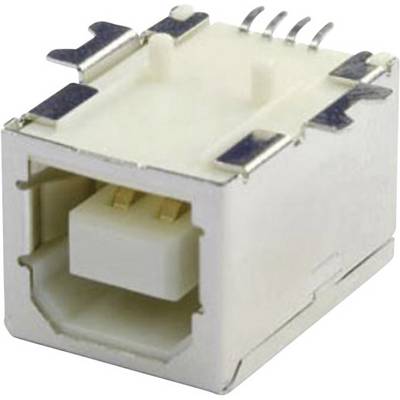

Mounted socket USB-B SMD 90 G Socket, horizontal mount UBU1BSMD 1 Port UBU1BSMD econ connect Content: 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
2
-
€ 1.67
6
8% = € 0.13
€ 1.54
10
11% = € 0.18
€ 1.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 2
Total (€ 1.67 / piece)
€ 3.34
plus VAT.
Technical specifications
- Type
UBU1BSMD
- Pins
4
- Type
1 Port
- Content
1 pc(s)
- Factory colour
White
- Connector standard
USB 2.0
- Connection
SMT
- Manufacturer part #
UBU1BSMD
- Material (details)
Nylon
- Connector type
Socket, horizontal mount
- Nominal voltage (details)
250 V
- Nominal current (details)
1.5 A
- Contact material
Phosphorus bronze gold plated
- Temperature range
-25 - +85 °C
- Case material
Brass nickel plated
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 1311461 Mounted socket USB-B SMD 90 G Socket, horizontal mount UBU1BSMD 1 Port UBU1BSMD econ connect Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1311461 Mounted socket USB-B SMD 90 G Socket, horizontal mount UBU1BSMD 1 Port UBU1BSMD econ connect Content: 1 pc(s)
