Mueller Electric BU-1420701211 Adapter SMA socket - PCB Brass

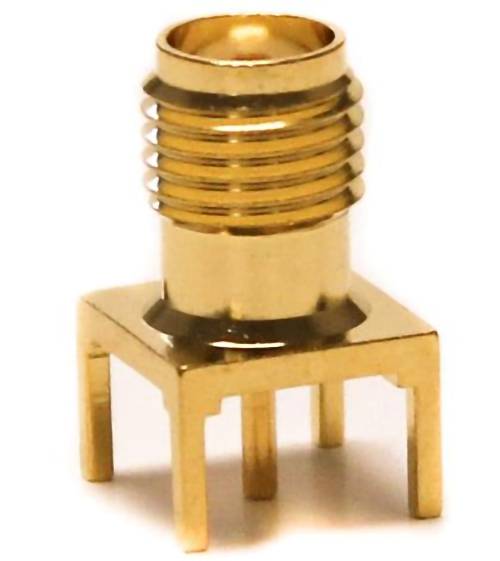

A gold-plated coaxial RF connector with threaded outer casing and rectangular base, used for electronic signal transmission.
Product type
Adapter
Type A
SMA socket
Type B
PCB
Factory colour
Brass
Jack diameter
6,35 mm
Datasheet (PDF)
Part number:
Item no:
10 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 4.29 / piece)
€ 4.29
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 10 Piece(s) available
Only available for business customers
14-day return policy included
Report legal concerns

Highlights & Details

BU-1420701211 SMA connector for PCB mounting, edge mounting

  • Impedance: 50 ohm
  • Frequency 0–18 g.
  • Operating voltage 335 volt at sea level
  • Dielectric withstand voltage: Min. 1000 Volt at sea level
  • Housing: Gold-plated brass
  • Contact: Gold-plated beryllium copper
  • Isolator: Teflon
  • -65 °C to +150 °C.
  • This text is machine translated.

Technical specifications

Product type

Adapter

Type A

SMA socket

Type B

PCB

Factory colour

Brass

Jack diameter

6,35 mm

Type

BU-1420701211

Dim

(L x W) 13.46 mm x 7.92 mm

Weight

1.6 g

Tip material

Gold-plated beryllium copper

Compatible with (details)

PCB (PCB)

Width

7.92 mm

Length

13.46 mm

Shaft length

3.93 mm

Type

BU-1420701211

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3527378 Mueller Electric BU-1420701211 Adapter SMA socket - PCB Brass

User & Safety Instructions

User & Safety Instructions 3527378 Mueller Electric BU-1420701211 Adapter SMA socket - PCB Brass

Description

Scope of delivery

  • BU-1420701211
