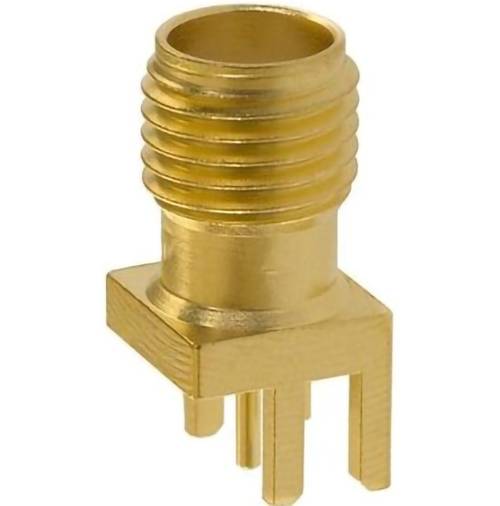

Mueller Electric BU-1420711821 Adapter SMA socket - PCB Straight Brass
Product type
Adapter
Type A
SMA socket
Type B
PCB
Reading category
Ohne Messkategorie
Factory colour
Brass
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 4.79 / piece)
€ 4.79
incl. VAT
Only 3 Piece(s) available
Highlights & Details
SMA connector for PCB mounting, edge mounting
- For mounting on 1.57 mm (0.062 inch) thick PCBs
- Impedance: 50 ohm
- Frequency 0 - 18 g
- Operating voltage 335 volt at sea level
- VSWR: 1.35 at 10 GHz with LMR-100 cable
- Dielectric withstand voltage: Min. 100 Volt at sea level
- Housing: Gold-plated brass
- Contact: Gold-plated beryllium copper
- Isolator: Teflon
- -65 °C to +150 °C.
- RoHS 3 compliant
- This text is machine translated.
Technical specifications
- Product type
Adapter
- Type A
SMA socket
- Type B
PCB
- Factory colour
Brass
- Reading category
Ohne Messkategorie
- Jack diameter
6,35 mm
- Connector
SMA plug (SMA plug)
- Type
BU-1420711821
- Dim
(L x W x H) 9.52 x 6.35 x 6.35 mm
- Weight
1.6 g
- Tip material
Gold-plated beryllium copper
- Nominal voltage
335 V
- Width
6.35 mm
- Height
6.35 mm
- Length
9.52 mm
- Shaft length
3.81 mm
- Plug features
Straight
- Type
BU-1420711821
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3527388 Mueller Electric BU-1420711821 Adapter SMA socket - PCB Straight Brass
User & Safety Instructions
User & Safety Instructions 3527388 Mueller Electric BU-1420711821 Adapter SMA socket - PCB Straight Brass
Description
Scope of delivery
- BU-1420711821
