Müller KNX 24705 Room thermostat, Air quality/temperature/RH sensor GS 41.12 knx
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 239.50 / piece)
€ 239.50
plus VAT.
Only 2 Piece(s) available
Highlights & Details

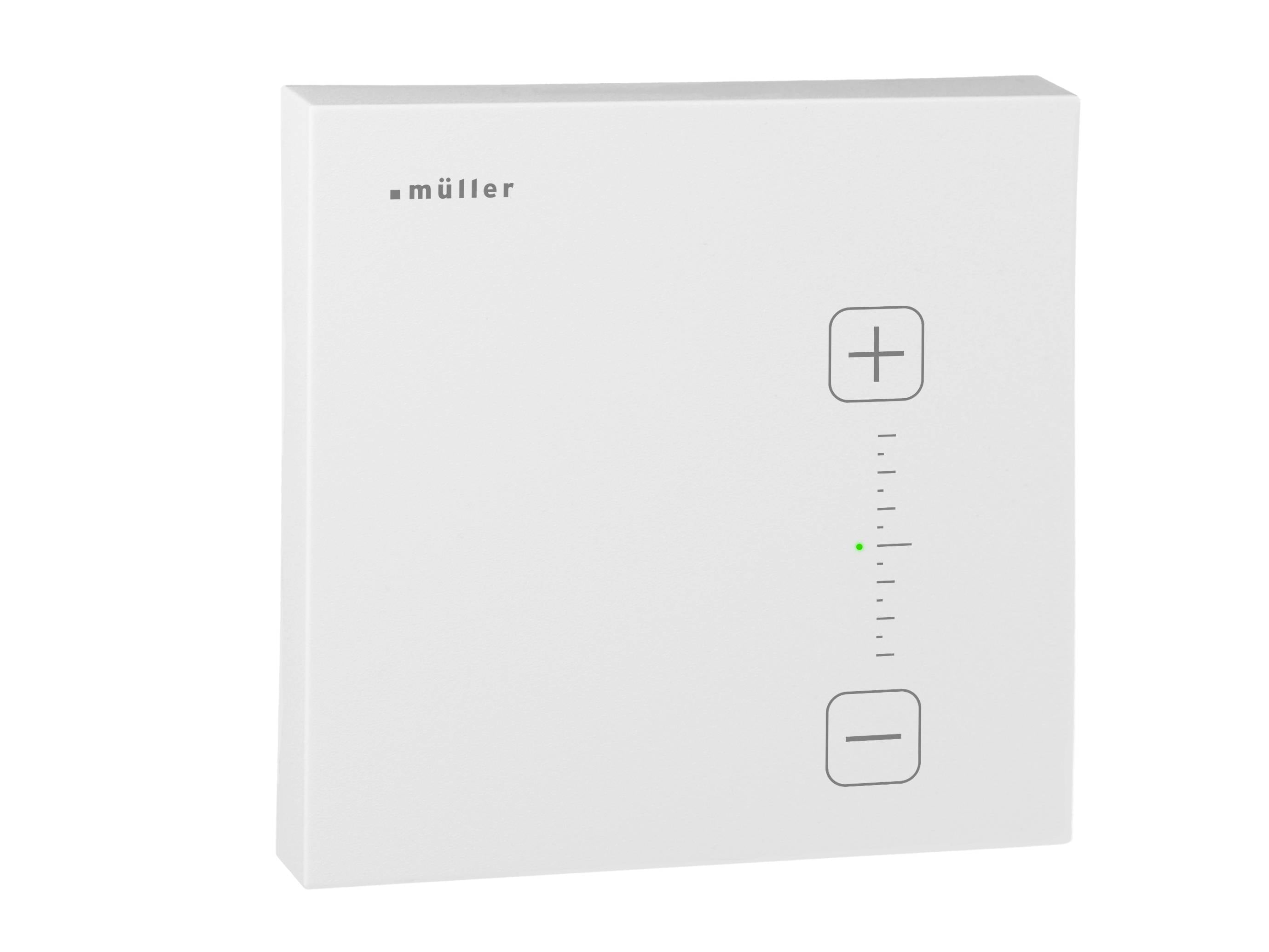

Weidmüller GS 41.12 KNX white, room climate control and air quality sensor
- Room controller with CO2I, temperature, humidity and air pressure sensors
- Integrated room temperature control with touch-set point adjustment
- Accurate monitoring of air quality including air pressure compensated CO2-value (up to 5,000 ppm)
- 2 independent temperature controllers & 2 VAV control circuits
- Intelligent control with up to 4 sensor values (incl. external sensors)
- 3× 0–10 V analog outputs (e.g. for VAV, fan coils or actuators)
- 5 freely usable binary and analogue inputs
- Integrated humidity monitoring with limit and comparison function
- RGB / RGBW / Tunable White light control
- KNX Secure and update enabled (future-proof)
- Clear ETS structure and easy commissioning
- Modern, flat surface-design (80 mm)
Technical specifications
- Manual target temperature change directly via the integrated touch-control panel at the front
- Integrated, air-pressure-compensated CO2-sensor
- RGB, RGBW and Tunable White dimming functions
- Party function
- Product type
Room thermostat
- Series
KNX
- Used at
Indoors
IP20
- Data transfer (Smart Home)
Wired
- Mounting type
Wall
Surface-mount
- Factory colour
Studio white (similar to RAL 9016)
- Width
80.5 mm
- Height
80.5 mm
- Depth
17 mm
- Dim
(W x H x D) 80.5 x 80.5 x 17 mm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3771309 Müller KNX 24705 Room thermostat, Air quality/temperature/RH sensor GS 41.12 knx
User & Safety Instructions
User & Safety Instructions 3771309 Müller KNX 24705 Room thermostat, Air quality/temperature/RH sensor GS 41.12 knx
Description
Breathe deeply - your Smart home takes care of the rest. The Hugo Müller GS 41.12 KNX is the ultimate CO2 air quality sensor and room climate controller for demanding KNX installations. Thanks to precise, air-pressure-compensated CO2I-sensors as well as measurement of temperature, humidity and air pressure it provides fully automatic for a healthy indoor climate. The elegant, ultra flat housing inserts itself discreetly into any room. The highlight of the GS 41.12 KNX: The set temperature can be easily adjusted manually at any time via the integrated touch control panel on the front. With future-proof KNX Secure and versatile control options (e.g. VAV ventilation control), you get the perfect balance of energy efficiency, comfort and security in your home.
This text is machine translated.
This text is machine translated.
Features
- CO2, Temperature, Air pressure and humidity sensor
- Measuring air quality
- CO2 sensor (measuring range 425...5,000 ppm CO2 concentration)
- Air pressure-compensated CO2-value
- Temperature sensor (measuring range 0...50 °C)
- Set temperature can be changed manually using the touch control panel
- Air humidity sensor (measurement range 0...100 % rel. Humidity)
- Humidity comparison function
- 2 separate temperature controls via KNX
- Temperature control possible with up to 4 Sensor values
- 2 VAV controls possible
- 5 binary and analogue inputs (e.g. for connection of an external temperature sensor)
- 3x analogue outputs (0-10V)
- RGB, RGBW and Tunable White dimming function
- KNX secure
- Updateable
- Clearly structured ETS
- Easy handling and installation
- Modern, flat design for surface mounting [80 mm]
- Party function
Scope of delivery
- Hugo Müller GS 41.12 KNX room climate control/air quality sensor
- KNX terminal
