Müller KNX 24707 Room thermostat TS 31.12 knx RAL 9005
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 91.99 / piece)
€ 91.99
incl. VAT
Only 2 Piece(s) available
Highlights & Details

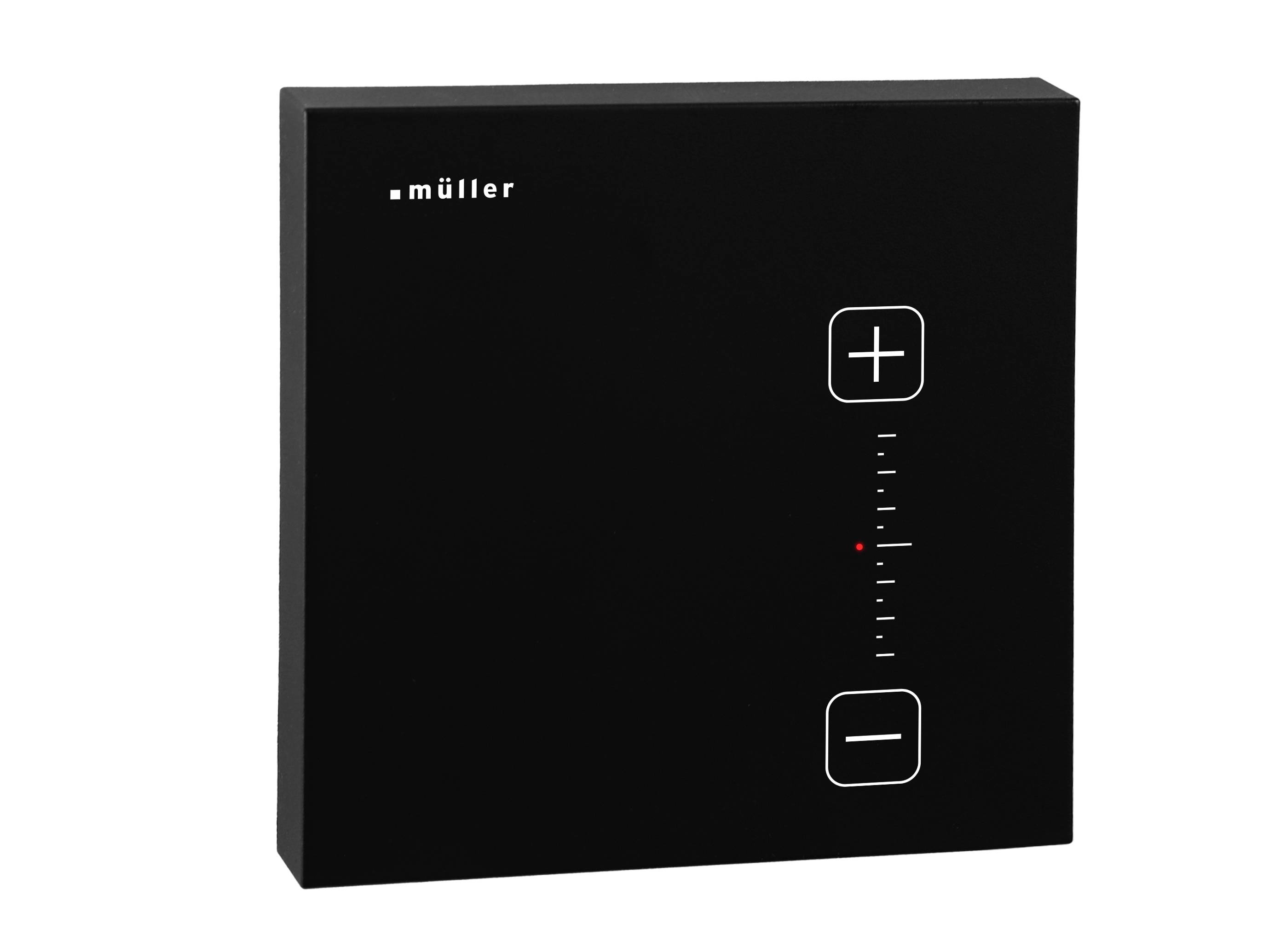

Weidmüller TS 31.12 KNX black, room temperature controller
- Integrated room temperature control with touch-set point adjustment
- 2 independent temperature zones controlled via KNX
- Flexible sensor integration (up to 4 temperature values + external sensors)
- 3× 0–10 V analog outputs (e.g. for fan coils or actuators)
- 5 freely usable binary and analogue inputs
- RGB / RGBW / Tunable White light control
- KNX Secure and update enabled (future-proof)
- Clear ETS structure and easy commissioning
- Modern, flat surface-design (80 mm)
Technical specifications
- Manual change of the nominal temperature directly on the device
- Additional 5 binary and analogue inputs for external sensors or contacts
- Product type
Room thermostat
- Series
KNX
Manufacturer-specific
- Used at
Indoors
IP20
- Operating voltage
24 V DC
30 V DC
0.3 W
- Data transfer (Smart Home)
Wired
- Channels
2
- Mounting type
Wall
Surface-mount
- Factory colour
Jet black (RAL 9005)
- Width
80.5 mm
- Height
80.5 mm
- Depth
17 mm
- Dim
(W x H x D) 80.5 x 80.5 x 17 mm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
- Weight
90 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3771302 Müller KNX 24707 Room thermostat TS 31.12 knx RAL 9005
User & Safety Instructions
User & Safety Instructions 3771302 Müller KNX 24707 Room thermostat TS 31.12 knx RAL 9005
Description
Experience a perfect feel-good climate combined with modern design. The müller TS 31.12 KNX is the ideal solution for a precise and energy-efficient room temperature control in your KNX-Smart home. Apart from the exact temperature recording, this model captivates by an elegant housing in deep black (RAL 9005) and offers the possibility of manual change of the nominal temperature via convenient button Thanks to integrated binary and analogue inputs, the system can be flexibly expanded – for an all-round smart and comfortable home.
This text is machine translated.
This text is machine translated.
Features
- Recording of the room temperature
- Temperature sensor (measuring range 0...50 °C)
- Set temperature can be changed manually using the touch control panel
- 2 separate temperature controls via KNX
- Temperature control possible with up to 4 Sensor values
- 5 binary and analogue inputs (e.g. for connection of an external temperature sensor)
- 3x analogue outputs (0-10V)
- RGB, RGBW and Tunable White dimming function
- KNX secure
- Updateable
- Clearly structured ETS
- Easy handling and installation
- Modern, flat design for surface mounting [80 mm]
- Party function
Scope of delivery
- 1x müller TS 31.12 KNX room temperature controller (RAL 9005 jet black)
- KNX-Bus terminal
- Mounting accessories (mounting plate/frame)
- Operating and installation instructions
